Section 5 - Attachments
5-14 31200192
Side Shift Carriage
Description P/N
Side Shift Carriage ......................................................... 1170002
Forks, 1.7x4.9 in ............................................................. 2340029
Forks, 2.0x3.9 in ............................................................. 2340030
Forks Cubing, 2.0x2.0............................................... 1001097922
Use Side Shift Carriage Attachment Capacity Chart
To determine maximum capacity, refer to “Telehandler/Attachment/Fork Capacity” on
page 5-2.

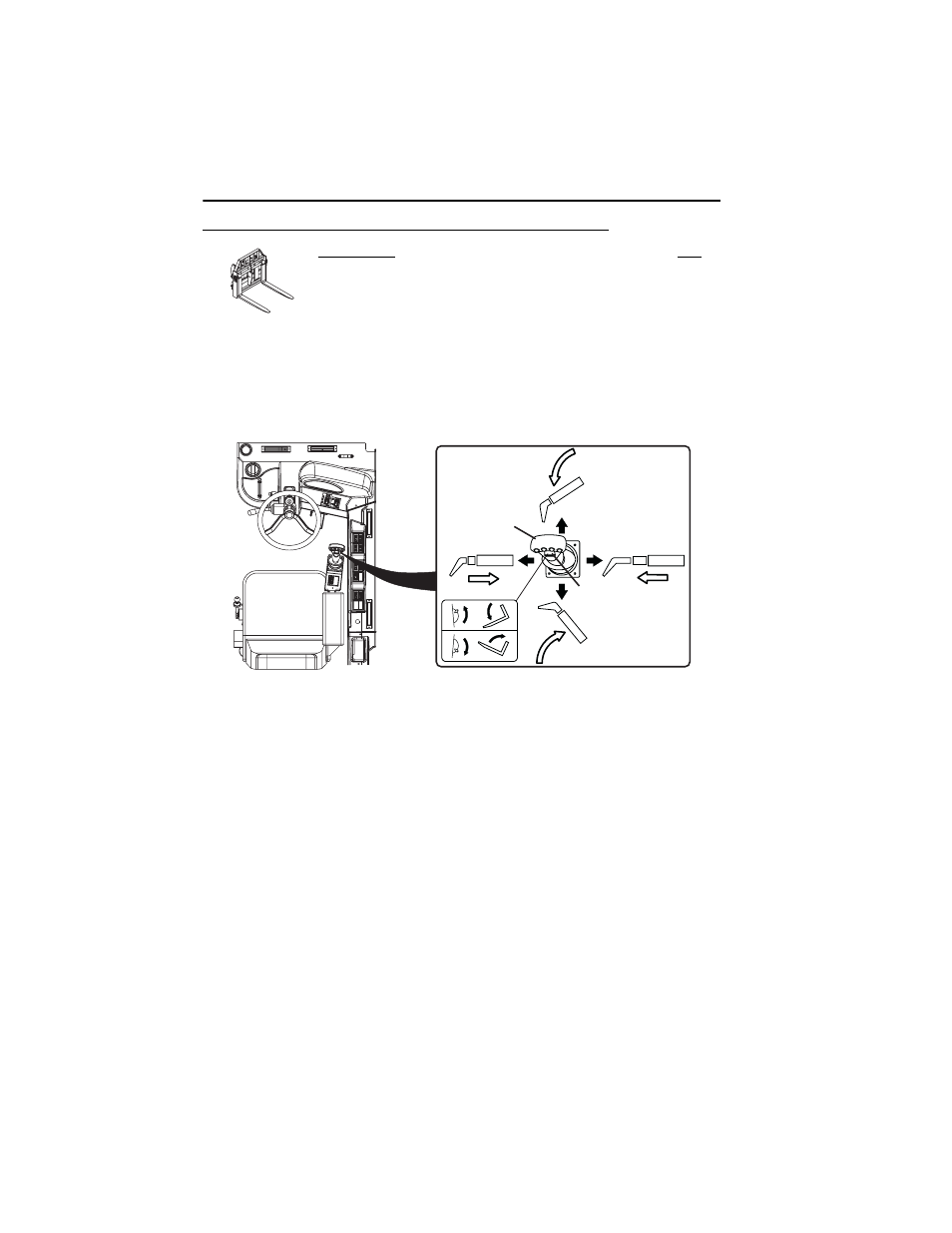

The joystick (1) controls movement of the boom.
The rocker switch (2) located on the boom joystick controls carriage tilt.
• Push rocker switch down to tilt up.
• Push rocker switch up to tilt down.
