JLG G6-23A Operator Manual - Manual (Page 76)

Section 5 - Attachments
5-12 31200192
Carriage w/Forks
Description P/N
Carriage .......................................................................... 1170028
Forks, 2x4.7 in ................................................................ 2340040
Forks, 2x3.9 in ................................................................ 2340041
Use Carriage Attachment Capacity Chart
To determine maximum capacity, refer to “Telehandler/Attachment/Fork Capacity” on
page 5-2.

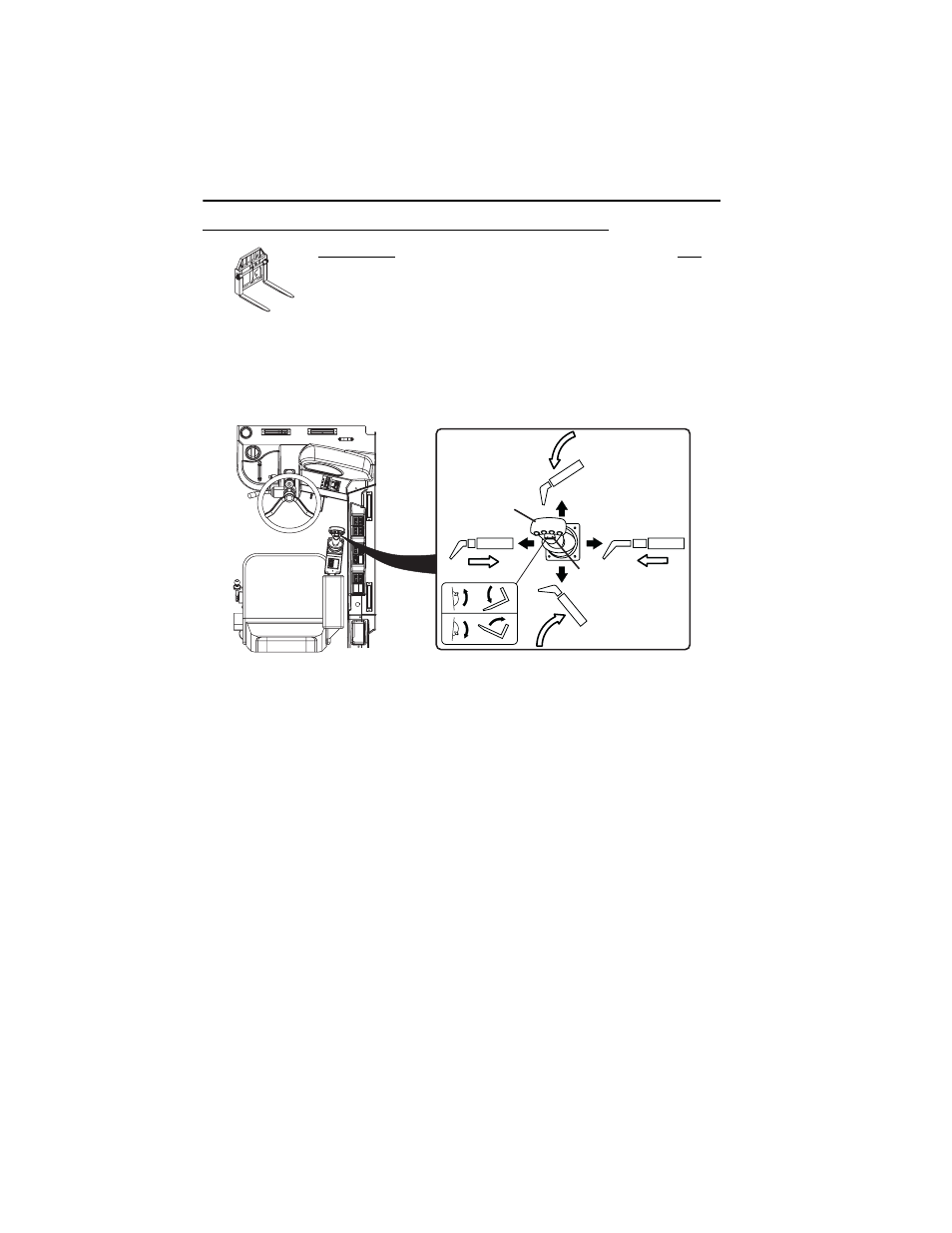

The joystick (1) controls movement of the boom.
The rocker switch (2) located on the boom joystick controls carriage tilt.
• Push rocker switch down to tilt up.
• Push rocker switch up to tilt down.
Installation Procedure:
• Refer to “Attachment Installation” on page 5-7.
