Section 3 - Controls and Indicators
3-4 31200192

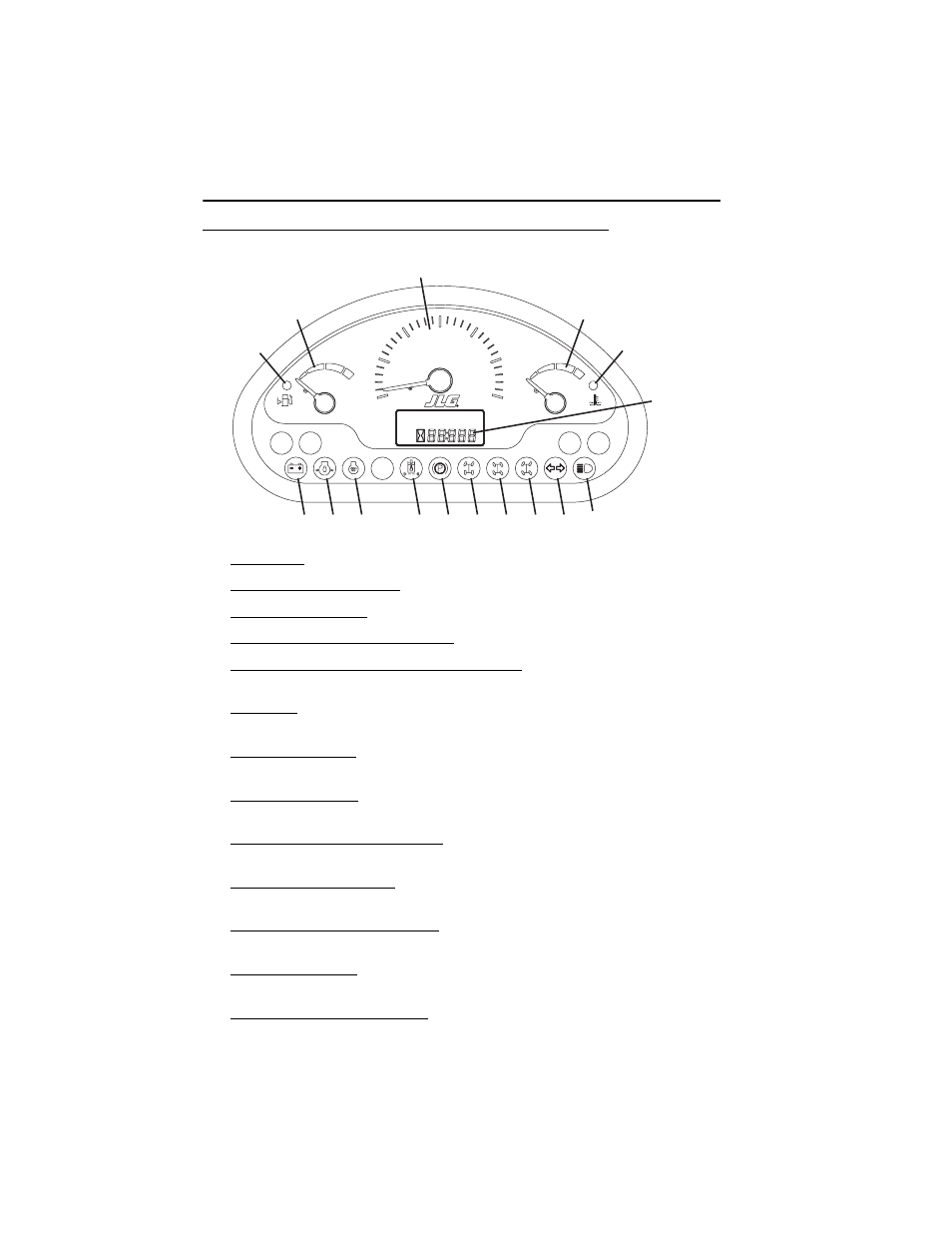

Instrument Panel
1. Fuel Gauge: Gauge for the diesel fuel tank.
2. Low Fuel Warning Indicator: Illuminates when diesel fuel level is below 1/8 tank.
3. Engine RPM Indicator: Indicates engine speed in revolutions per minute (rpm).
4. Engine Coolant Temperature Gauge: Gauge for engine coolant temperature.
5. Engine Coolant Temperature Warning Indicator: Illuminates when coolant
temperature is too high.
6. Hourmeter: Indicates total time of engine operation in hours and tenths of
hours. Hourmeter symbol is visible and flashes only when engine is running.
7. High beam Indicator (if equipped): Illuminates while high beam lights are
activated.
8. Turn Signal Indicator (if equipped): Illuminates and flashes while turn signals
are activated in either direction or the hazard lights have been activated.
9. All Wheel Steering Mode Indicator: Illuminates while activated: All wheels are
steering. The front wheels steer in the opposite direction from the rear wheels.
10. Crab Steer Mode Indicator: Illuminates while activated: All wheels are steering
in the same direction.
11. Front Wheel Steer Mode Indicator: Illuminates while activated: The front wheels
are steering.
12. Park Brake Indicator: Illuminates when park brake is activated (see page 3-7).
Park brake must be applied to start engine.
13. Hydraulic Return Filter Indicator: Illuminates when filter requires maintenance.
OAH0670
0
5
10
15
20
25
30
rpm x 100
1
2
3
4
5
6
7 8 9 10 11 12 13 14 15 16
