SECTION 2 - USER RESPONSIBILITIES, MACHINE PREPARATION, AND INSPECTION

2-6

– JLG Lift –

3121217

10

1

2

3

4

5

6

9

8

7

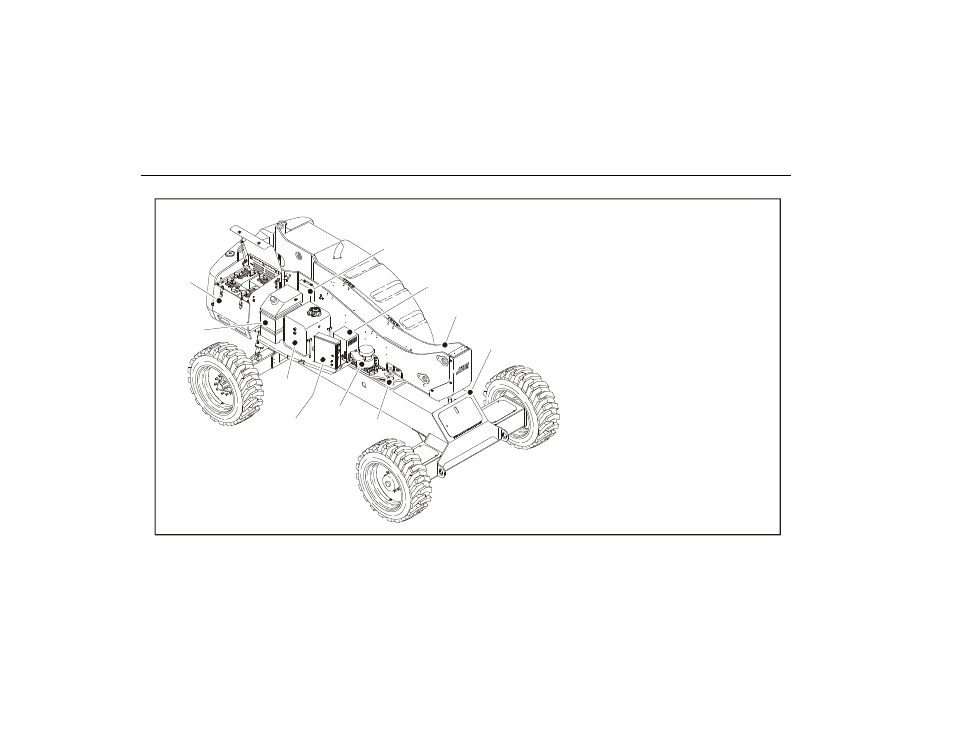

Figure 2-1. Basic Nomenclature - Sheet 1 of 3

1. Battery Pack
2. Fuel Tank
3. Hydraulic Tank
4. Main Terminal Box
5. Swing Drive
6. Turntable Lock
7. Frame
8. Turntable
9. Battery Charger
10. Generator Control
Module (M Models)
