Section 3 - Controls and Indicators
3-12 31200359

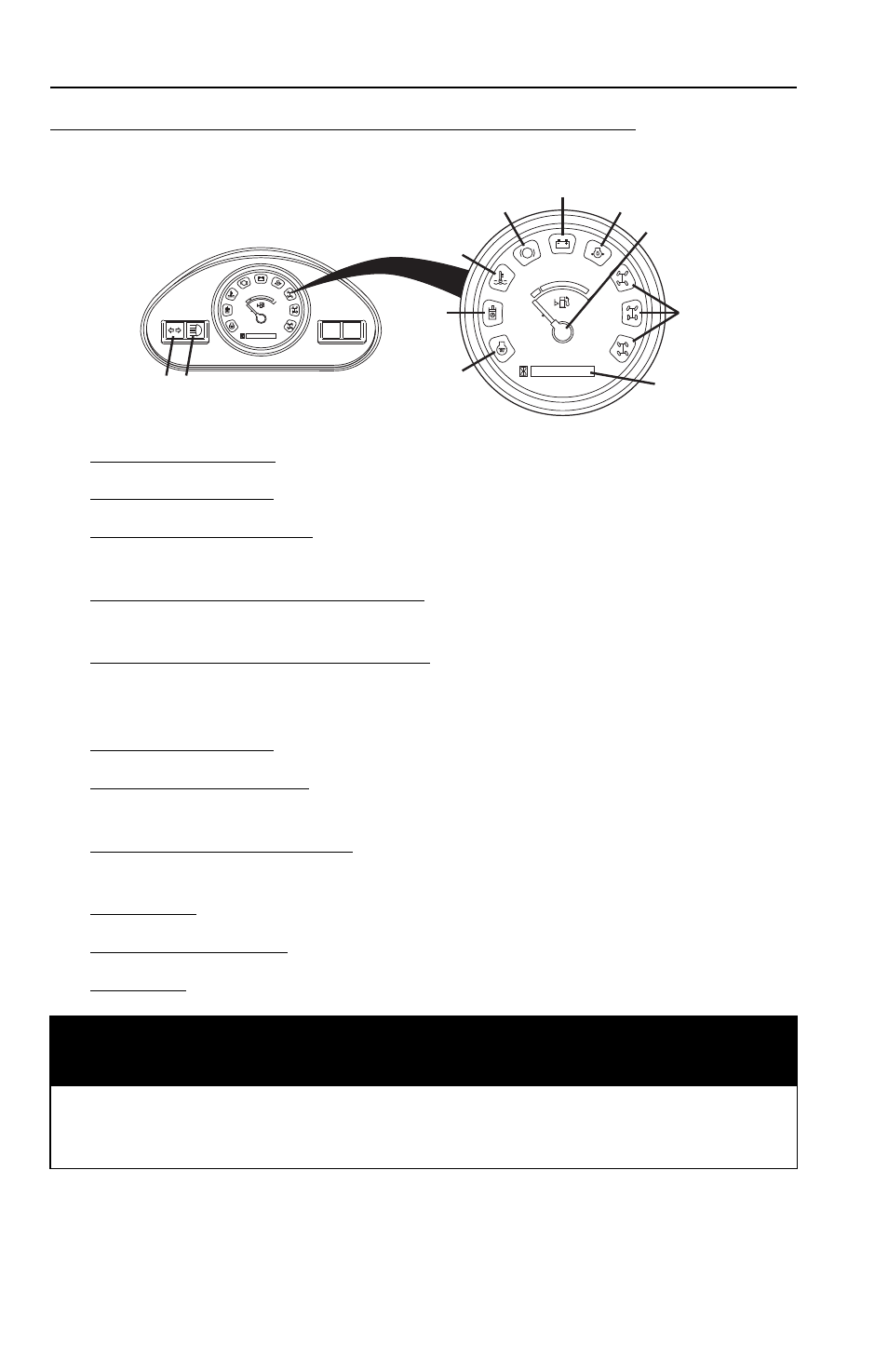

Instrument Panel
1. Turn Signal Indicator (if equipped): Illuminates when turn signal is active.
2. High Beam Indicator (if equipped): Illuminates when high beam lights are on.
3. Engine Preheat Indicator: Illuminates with ignition key in position P. At
temperatures below 0° C (32° F), do not start until engine is preheated.
4. Hydraulic Steering Pressure Indicator (2505): Illuminates when steer pressure
is too low. If light remains on, shut-down engine.
5. Engine Coolant Temperature Indicator: Illuminates when engine coolant
temperature is too high. Stop and idle engine, allowing time to cool and shut-
down.
6. Park Brake Indicator: Illuminates when park brake is applied.
7. Battery Charge Indicator: Illuminates to indicate batteries at low charge or a
weak or improperly functioning charging system.
8. Engine Oil Pressure Indicator: Illuminates when engine oil pressure is too low.
Shut-down engine immediately.
9. Fuel Gauge: Indicates amount of fuel in fuel tank.
10. Steer Mode Indicators: Illuminates active steering mode.
11. Hourmeter: Records and indicates engine operating hours.
NOTICE
EQUIPMENT DAMAGE. When a red indicator illuminates (except park brake),
immediately bring machine to a stop, lower boom and attachment to ground and
stop the engine. Determine cause and correct before continued use.
OAL1371
P
h 00 00000
P
h 00 00000
1 2
3
4
5
6
7
8
10
11
9
