Section 3 - Controls and Indicators
3-8 31200359

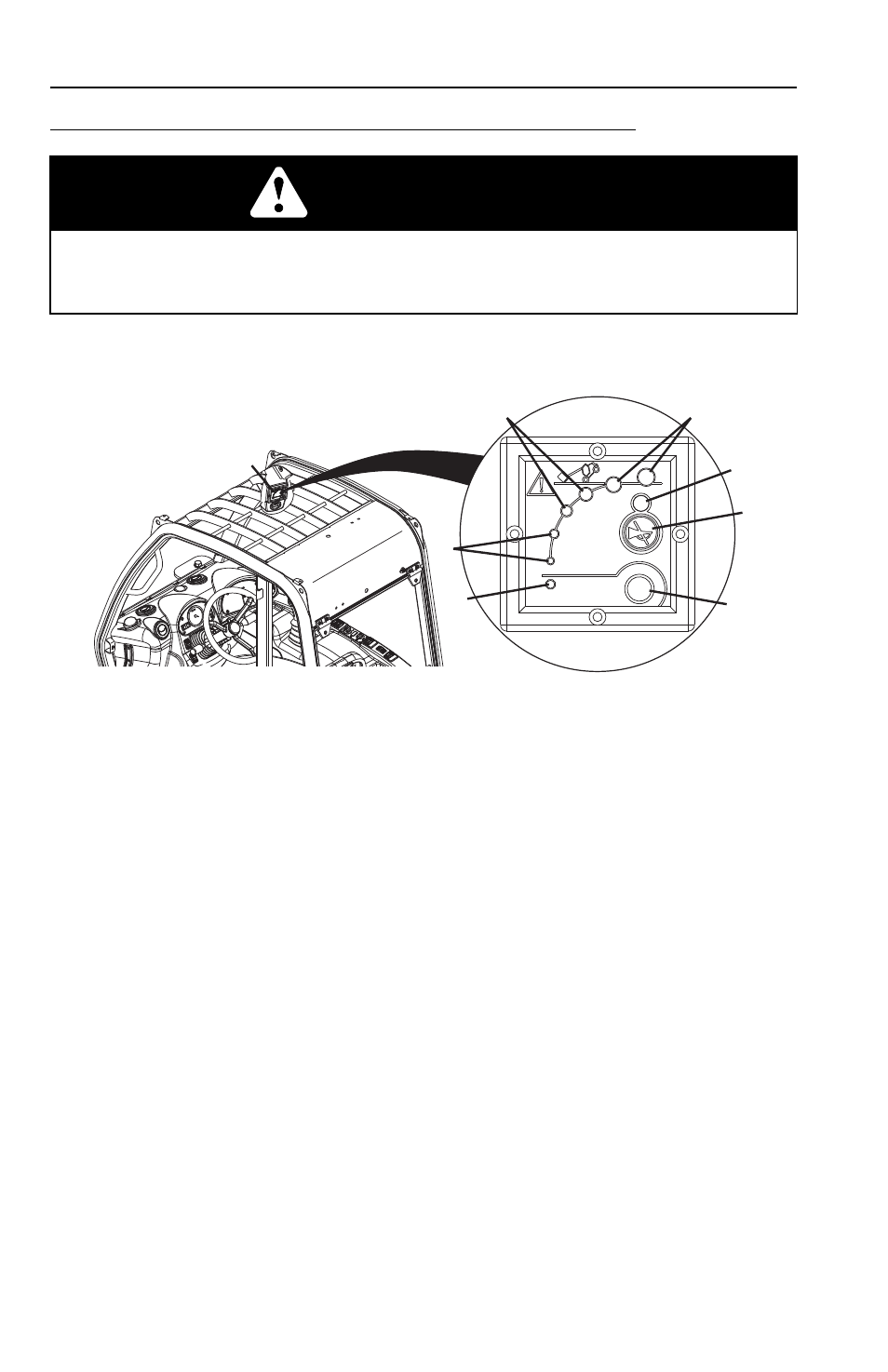

Load Stability Indicator - LSI (2505)
Before S/N 0160042694
The LSI (1) provides visual and audible indication of forward stability limitations
when machine is static on firm, level surface.
• Green LED (2) will illuminate when LSI power is on.
• When approaching forward stability limitations LEDs progressively illuminate,
green (3), then yellow (4) and finally red (5).
• The warning buzzer sounds as the first red LED illuminates.
• As the telehandler reaches its forward stability limitations and the second red
LED illuminates, the automatic function cut-out is activated. Certain functions are
disabled (i.e. boom lift, extend, etc). Retract boom to re-enable functions.
• Press button (6) to disable the warning buzzer. When disabled, yellow LED (7)
will illuminate. If last red LED illuminates, disable button is overridden and
warning buzzer sounds.
• Test LSI (8) at the beginning of each work shift. See Section 8 - Additional
Checks.
WARNING
TIP OVER HAZARD. The LSI considers only longitudinal stability limitations,
observe all operating parameters. Failure to follow operating parameters of the
telehandler could damage the equipment and/or cause tip over.
OAL1321
1
3
4 5
6
7
POWER TEST 2
8
