Section 3 - Controls and Indicators
3-2 31200359

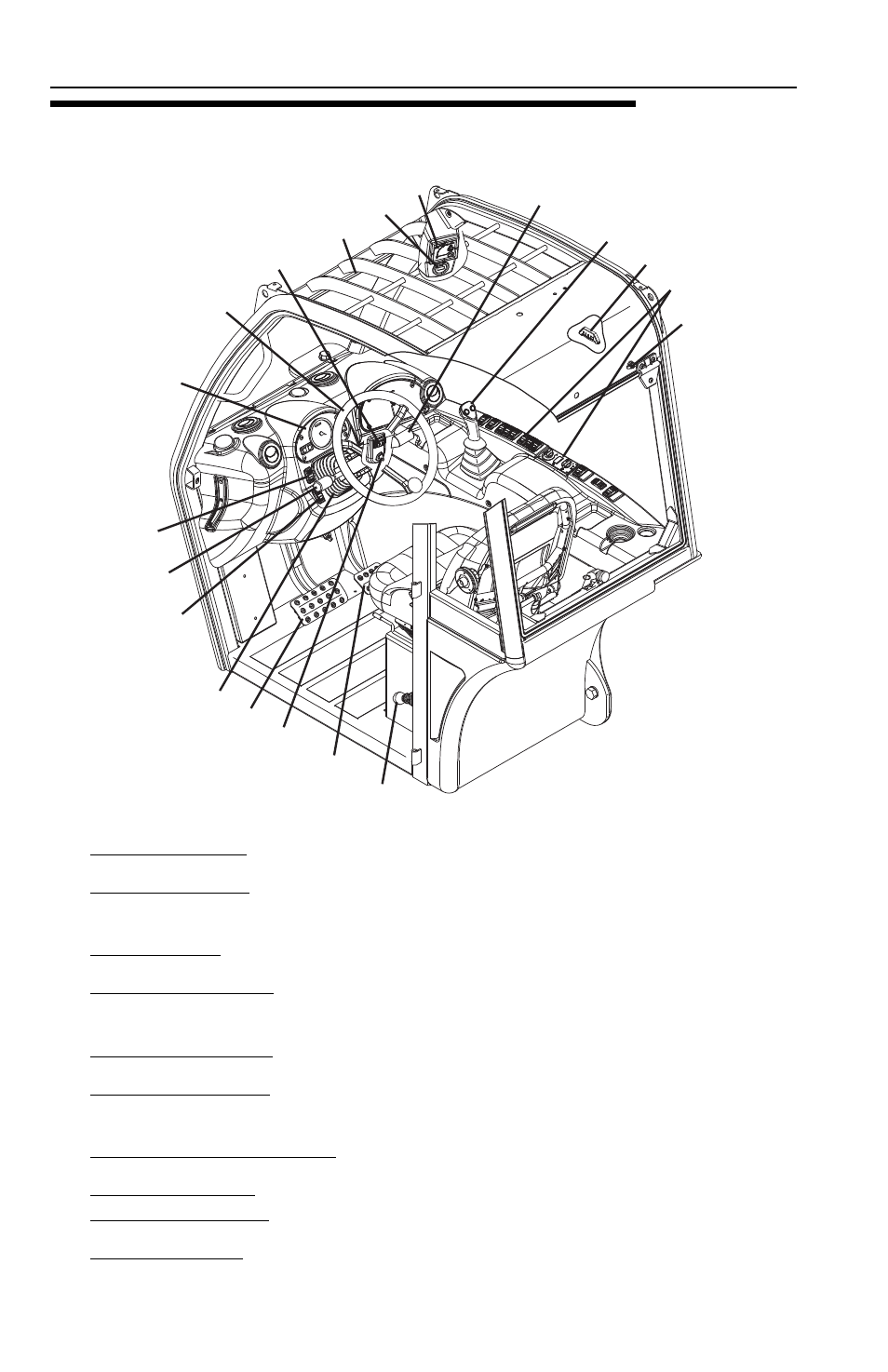

3.2 CONTROLS
1. Park Brake Lever (2505): See page 3-4.
2. Accelerator Pedal: Pressing down the pedal increases engine and hydraulic
speed.
3. Ignition Switch: Key activated. See page 3-6.
4. Service Brake Pedal: The further the pedal is depressed, the slower the travel
speed.
5. Tilt Steering Column (if equipped): See page 3-13.
6. Quick Attach Switch (if equipped): Used in conjunction with the joystick to
hydraulically lock or unlock an attachment.
7. Transmission Control Lever: See page 3-7.
8. Park Brake Switch (G5-18A): See page 3-4.
LSI Override Switch (2505): See page 3-11.
9. Instrument Panel: See page 3-12.
