JLG G12-55A AccuPlace Parts Manual - Manual (Page 287)

ELECTRICAL
31200454 G10-55A/G12-55A Accuplace 10-11

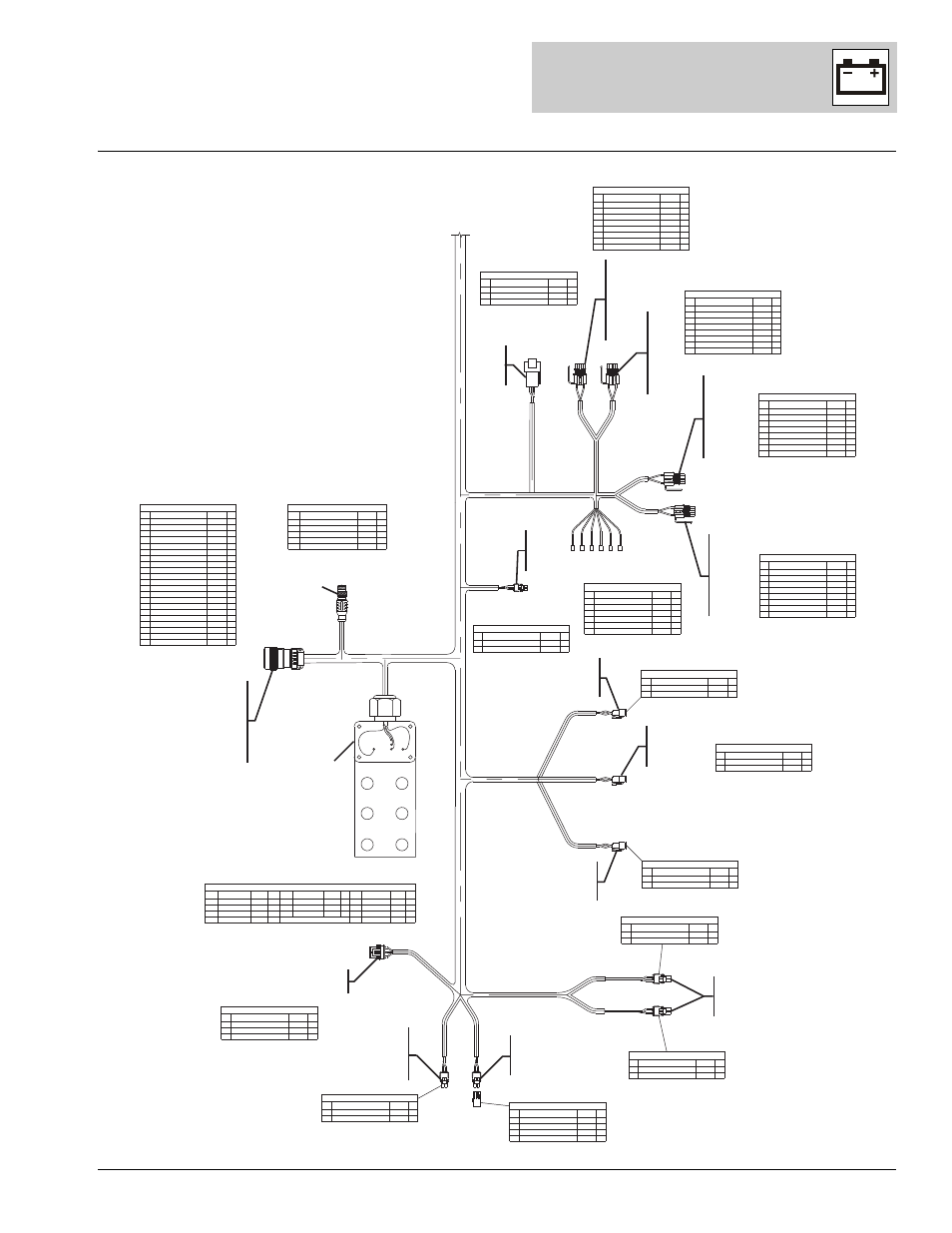

Figure 10-5 Chassis Harness (Continued)
PAL1750
15
16
37
26
38
39
40
41
42
43
2
3
5
6
45
46
44
23
24
25
I
16
26
27
28
29
30
16
26
27
28
30
31
16
26
27
28
30
33
14
15
16
16
26
27
28
30
32
3
35
36
3
35
36
3
35
36
14
15
16
STOP/WORK LIGHTS
POS WIRE DESIGNATION GAGE & TYPE TO
A REVERSE 16 GXL S7
B STOP LT 16 GXL D
C WORK LT 16 GXL S1
D LT GND 16 GXL S7
A B
M
L
N
AB
AB
J
K
O
CONT'D ON
PREVIOUS SHEET
S
U
Z
AA
V
RIGHT BOOM ANGLE SENSOR
POS WIRE DESIGNATION GAGE & TYPE TO
A BOOM ANGLE RT GND 16 GXL A
B BOOM ANGLE RT PWR 16 GXL A
C BOOM ANGLE RT SIG 16 GXL A
S
CONNECTOR HEAD
POS WIRE DESIG. GAGE & TYPE TO POS WIRE DESIG. GAGE & TYPE TO POS WIRE DESIG. TO
PWR INCOVA PWR 16 GXL S10 CANS CAN S 18 STP V GND GND 1 16 GXL S10
PWR - - CANL CAN L 18 STP V GND - - -
PWR - - CANL CAN H 18 STP V PWR - - -
PWR - - PWR - - -
Z
BOOM HARNESS CONNECTOR
POS WIRE DESIGNATION GAGE & TYPE TO
A CANS 18 STP AA
B SPARE BM HD 12 GXL A
C CANH 18 STP AA
D INCOVA PWR 12 GXL S10
E GND 1 12 GXL S10
F CANL 18 STP AA
G PLUGGED -- --
H PLUGGED -- --
J SIDESHIFT 16 GXL D
K PLUGGED -- --
L MAST 16 GXL D
M EXTRA 16 GXL D
N PLUGGED -- --
P PLUGGED -- --
R AUX ELEC GND 16 GXL J
S SWING 16 GXL D
T PLUGGED -- --
U CIRC VLV 16 GXL A
V PLUGGED -- --
W PLUGGED -- --
X PLUGGED -- --
U
M12 CAN TRUNK PLUG
POS WIRE DESIGNATION GAGE & TYPE TO
1 CANS 18 STP U
2-- -- --
3 -- -- --
4 CANH 18 STP U
5 CANL 18 STP U
AA
INCOVA CAN CONNECT PLUG
POS WIRE DESIGNATION TO
A CANH 18 STP Z
B CANL 18 STP Z
C CANS 18 STP Z
V
I
BUSSMAN VEC - C CONNECTOR
POS WIRE DESIGNATION TO
A DASH GND 16 GXL B
B ALT EXC 16 GXL H
C SP ACCY PWR 1 16 GXL S5
D AUX RLYS PWR 16 GXL D
E OPT GND 1 12 GXL D
F KEY ACC 16 GXL S1
G TRAN/BRK PWR 16 GXL S1
H OPT GND 212 GXL D
BUSSMAN VEC - D CONNECTOR
POS WIRE DESIGNATION TO
A SP CAB GND 1 16 GXL C
B SP CAB GND 216 GXL C
C GND 1 12 GXL S5
D SP GND 216 GXL M
E
AUX ELEC GND 16 GXL U
F LT GND 16 GXL S5
G STR GND 16 GXL S1
H FUEL GND 16 GXL N
J
BUSSMAN VEC - A CONNECTOR
POS WIRE DESIGNATION TO
A ECU BAT/022 12 GXL H
B GAGE PWR 16 GXL S4
C OPT PWR 1 12 GXL D
D ECU IGN/01212 GXL H
E BAT PWR 1 12 GXL A
F KEY IGN 16 GXL B
G OPT PWR 212 GXL D
H SHIFTER GND 16 GXL C
L
SPARE LEADS
POS WIRE DESIGNATION GAGE & TYPE TO
SP-3 16 GXL C
SP-216 GXL C
SP-1
16 GXL C
SP ACCY PWR 1 16 GXL S5
SP GND 216 GXL J
AC CLUTCH
16 GXL C
M
FUEL TANK CONNECTION
POS WIRE DESIGNATION GAGE & TYPE TO
A FUEL LVL 16 GXL B
B FUEL GND 16 GXL J
N
LEFT LIFT ISOLATION VALVE
POS WIRE DESIGNATION GAGE & TYPE TO
1 LT LIFT ISOL VLV 18 GXL X
2LT LIFT ISOL RET 18 GXL X
BOOM RIDE CONTROL VALVE
POS WIRE DESIGNATION GAGE & TYPE
TO
1 BOOM RIDE VLV 18 GXL X
2BOOM RIDE VLV RET 18 GXL X
O
RIGHT LIFT ISOLATION VALVE
POS WIRE DESIGNATION GAGE & TYPE TO
1 RT LIFT ISOL VLV 18 GXL X
2RT LIFT ISOL RET 18 GXL X
BACK UP ALARM
POS WIRE DESIGNATION GAGE & TYPE TO
A REVERSE 16 GXL S7
B LT GND 16 GXL S7
STABILIZER VALVE
POS WIRE DESIGNATION GAGE & TYPE TO
A RSTAB VLV SIG 216 GXL A
B RSTAB VLV GND 16 GXL S9
STABILIZER VALVE
POS WIRE DESIGNATION GAGE & TYPE TO
A RSTAB VLV SIG 1 16 GXL A
B RSTAB VLV GND 16 GXL S9
BUSSMAN VEC - B CONNECTOR
POS WIRE DESIGNATION TO
A ECU GND/050 12 GXL H
B KEY BAT PWR 16 GXL B
C SP ACCY PWR 216 GXL C
D OPT PWR 4
12 GXL D
E STEER/SWAY PWR 16 GXL B
F HORN PWR 16 GXL B
G OPT PWR 3 12 GXL D
H ENG GND 12 GXL H
K
-
GAGE & TYPE
GAGE & TYPE
GAGE & TYPE
GAGE & TYPE
GAGE & TYPE
GAGE & TYPE
