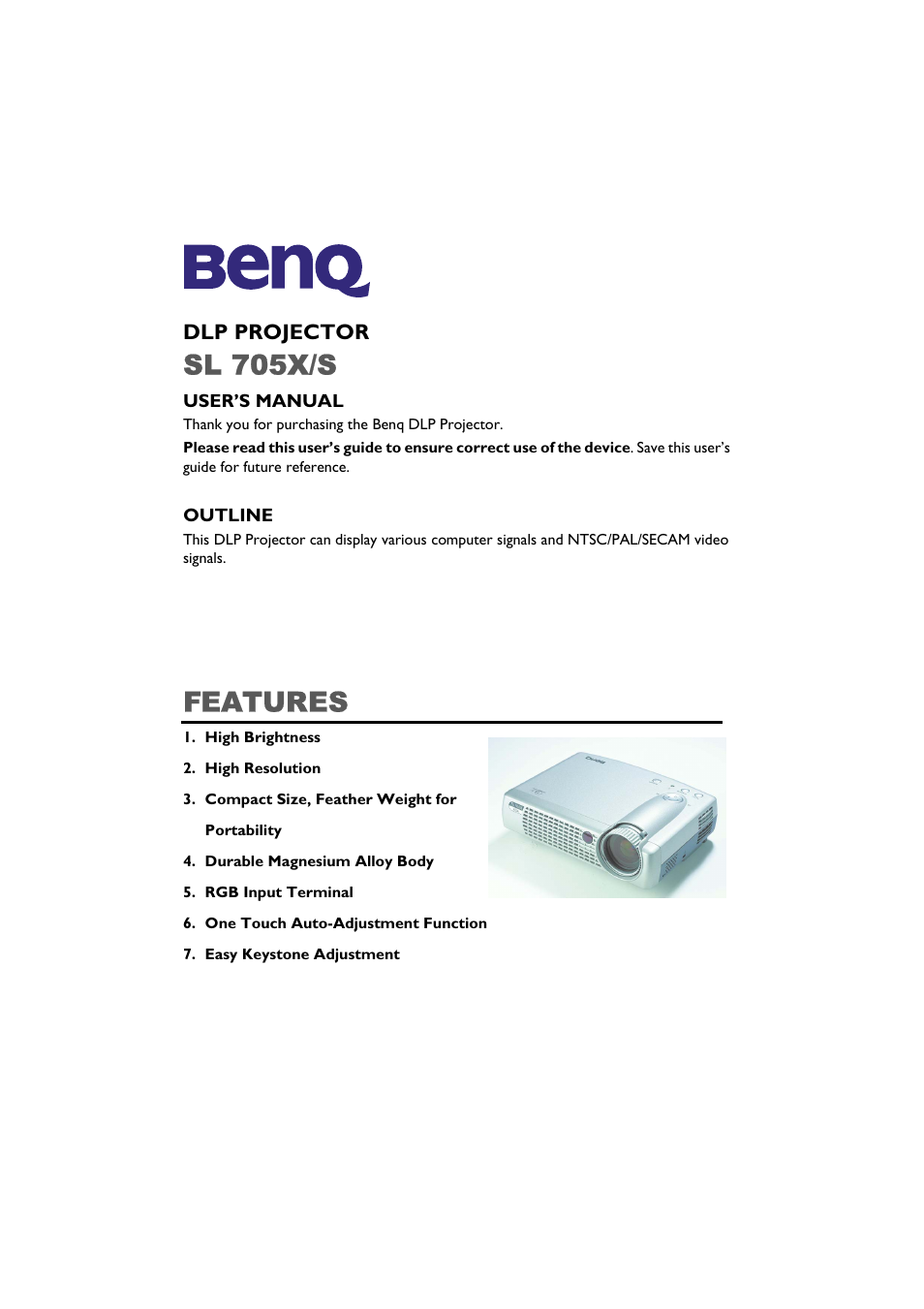

BenQ SL 705X/S User Manual
Sl 705x/s, Features, Dlp projector
Table of contents
Document Outline
- DLP Projector
- SL 705X/S
- Features
- Fill this in!!
- Introduction
- Safety Instructions
- 1. Read this user’s guide before you operate your projector and save it for future reference.
- 2. The lamp becomes extremely hot during operation. Allow the projector to cool for approximately...
- 3. Never replace lamp assembly or any electronic components unless the projector is unplugged.
- 4. To reduce the risk of electric shock, do not disassemble this appliance. Take it to a qualifie...
- 5. Do not place this product on an unstable cart, stand, or table. The product may fall, causing ...
- 6. This product is capable of displaying inverted images for ceiling mount installation. Please u...
- Warranty
- Shipping Contents
- Projector Description
- Projector
- 1. External control panel (see next page)
- 2. Projection lens
- 3. Front adjustment feet
- 4. IR remote sensor
- 5. Ventilation grill
- 6. Kensington lock
- 7. AC power cord input
- 8. S-video connector
- 9. Video connector
- 10. D-sub connector (for computer/ HDTV input)
- 11. Audio input
- 12. Rear adjustment feet
- 13. Lamp access door (underneath unit)
- External Control Panel
- Adjuster
- Projector Features
- Projector
- Remote Control Description
- FREEZE
- Safety Instructions
- Installation
- Operation
- Maintenance
- Lamp Information
- Lamp Replacement
- 1. Press the POWER button to switch off the projector. Disconnect the power cord from the outlet ...
- 2. Loosen the screw and remove the lamp cover. If the lamp is hot, avoid burns by waiting 45 minu...
- 3. Loosen the 3 screws. (It is strongly recommended you use a magnetic-headed screwdriver.) Pull ...
- 4. Replace the lamp with a new one. Insert it into the projector, and tighten the screws firmly. ...
- 5. Re-install the lamp cover and tighten the screw. Do not turn on the power with the lamp cover ...
- Resetting Lamp Hours
- Service Information
- Troubleshooting
- Specifications
- Projector Specifications
- Timing Chart
- Resolution
- H Sync (kHz)
- V Sync (Hz)
- Remark
- 640x350
- 31.5
- 70.1
- 640x400
- 37.9
- 85.1
- VESA
- 720x400
- 31.5
- 70.0
- 720x400
- 37.9
- 85.1
- VESA
- 640x480
- 31.5
- 60.0
- VESA
- 640x480
- 37.9
- 72.8
- VESA
- 640x480
- 35
- 66.7
- Macintosh
- 640x480
- 43.3
- 85.0
- VESA
- 800x600
- 35.2
- 56.3
- VESA
- 800x600
- 37.9
- 60.3
- VESA
- 800x600
- 46.9
- 75.0
- VESA
- 800x600
- 48.1
- 72.2
- VESA
- 800x600
- 53.7
- 85.1
- VESA
- 832x624
- 49.7
- 74.5
- Macintosh
- 1024x768
- 48.4
- 60.0
- VESA
- 1024x768
- 56.5
- 70.1
- VESA
- 1024x768
- 60.0
- 75.0
- VESA
- 1024x768
- 68.7
- 85.0
- VESA
- 1280x1024
- 64.0
- 60.0
- VESA
- Dimensions
