SECTION 2 - PREPARATION AND INSPECTION
2-14 – JLG Lift – 3120890

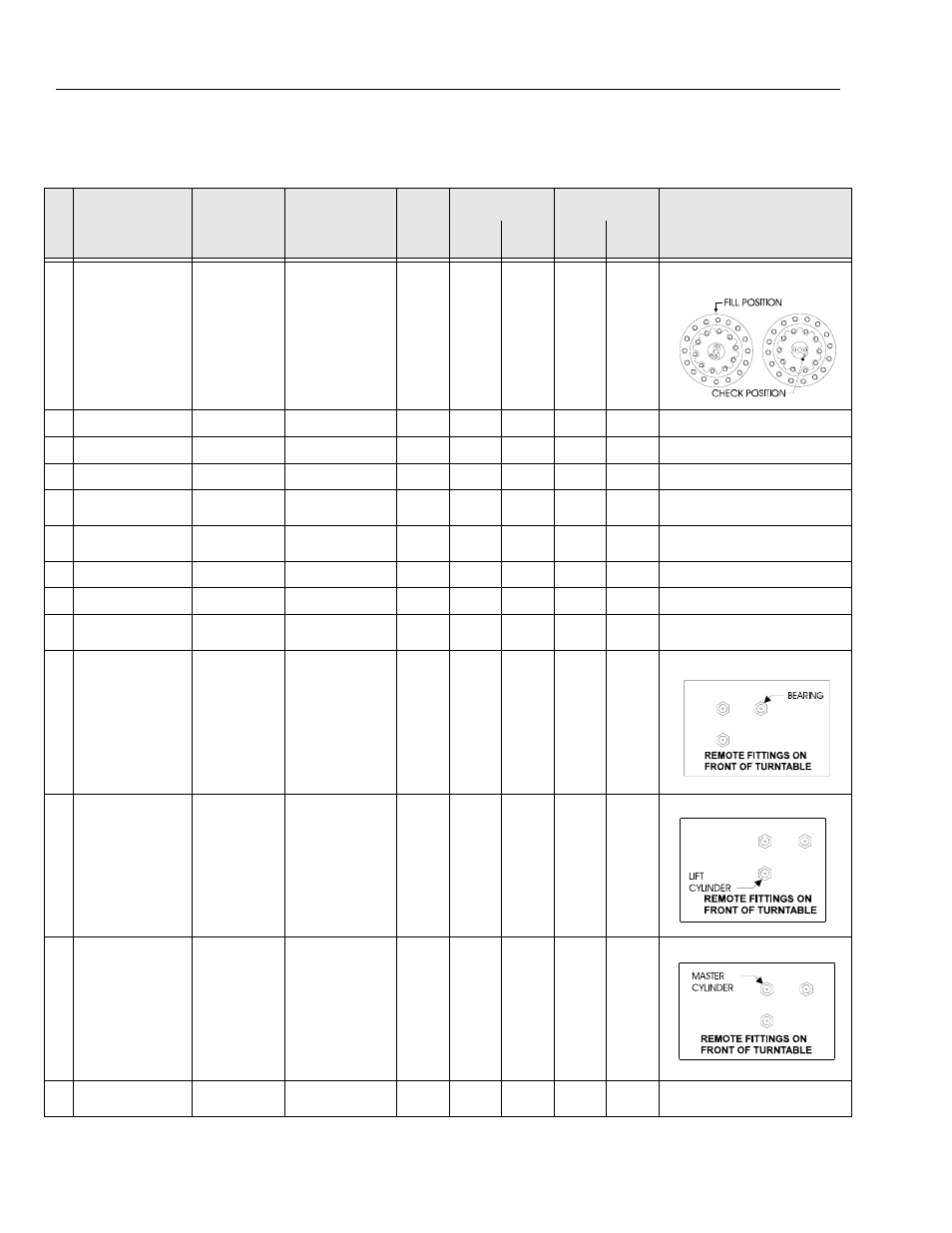

Table 2-1. Lubrication Chart
Components
Number/Type
Lube Points
Capacity Lube
Interval Hours
Comments
3 Months
150 hrs
6 Months
300 hrs
1 Year
600 hrs
2 Years
1200 hrs
1 Wheel Drive Hubs Level/Fill Plug 1.3 liters (1/2 full) EPGL
(SAE90)
X Check level every 150 hours; change @ 1200
hours
2 Slave Cylinder (Rod) 1 Grease Fitting A/R MPG X
3 Slave Cylinder (Barrel ) 1 Grease Fitting A/R MPG X Gain access through boom fly section.
4 Platform Pivot 1 Grease Fitting A/R MPG X
5 Rotating Column
(Optional) 2 Grease Fittings A/R MPG X
6 Rotary Worm Gear
(Optional) N/A A/R MPG X Brush on.
7 Platform Hinges 2 Grease Fittings A/R MPG X
8 Platform Latch N/A A/R EO X
9 Boom Chain Extension
Sheave 1 Grease Fitting A/R MPG X Align access holes in mid and fly boom.
10 Swing Bearing 2 Grease Fittings A/R MPG X Remote Access
11 Lift Cylinder (Barrel End) 1 Grease Fitting A/R MPG X Remote Access
12 Master Cylinder (Barrel
End) 1 Grease Fitting A/R MPG X Remote Access
13 Master Cylinder (Rod
End) 1 Grease Fitting A/R MPG X
