SECTION 3 - MACHINE CONTROLS AND INDICATORS
3121644
– JLG Lift –
3-3

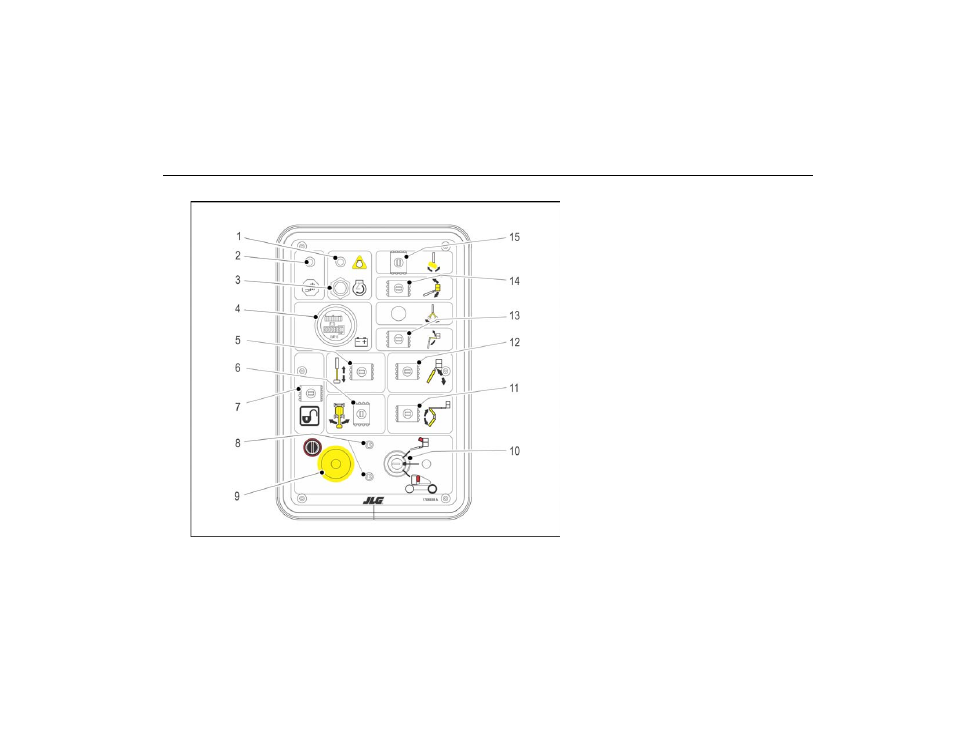

Figure 3-1. Ground Control Station
1.
System Distress Indicator
2.
Platform Overload Indicator
3.
Engine/Generator Start Button
4.
Battery Condition Indicator & Hourmeter
5.
Telescope
6.
Swing
7.
Function Enable
8.
Circuit Breakers
9.
Emergency Stop
10. Platform/Ground Select
11. Lower/Mid Lift
12. Upper Boom Lift
13. Jib
14. Platform Leveling
15. Rotate
