Installation
New Brunswick Excella® E-1 Open Air Shaker
English (EN)

12

4.3

Installing a platform

1. Loosen the four knobs on the

SPILL COVER that is bolted to the bearing housing.

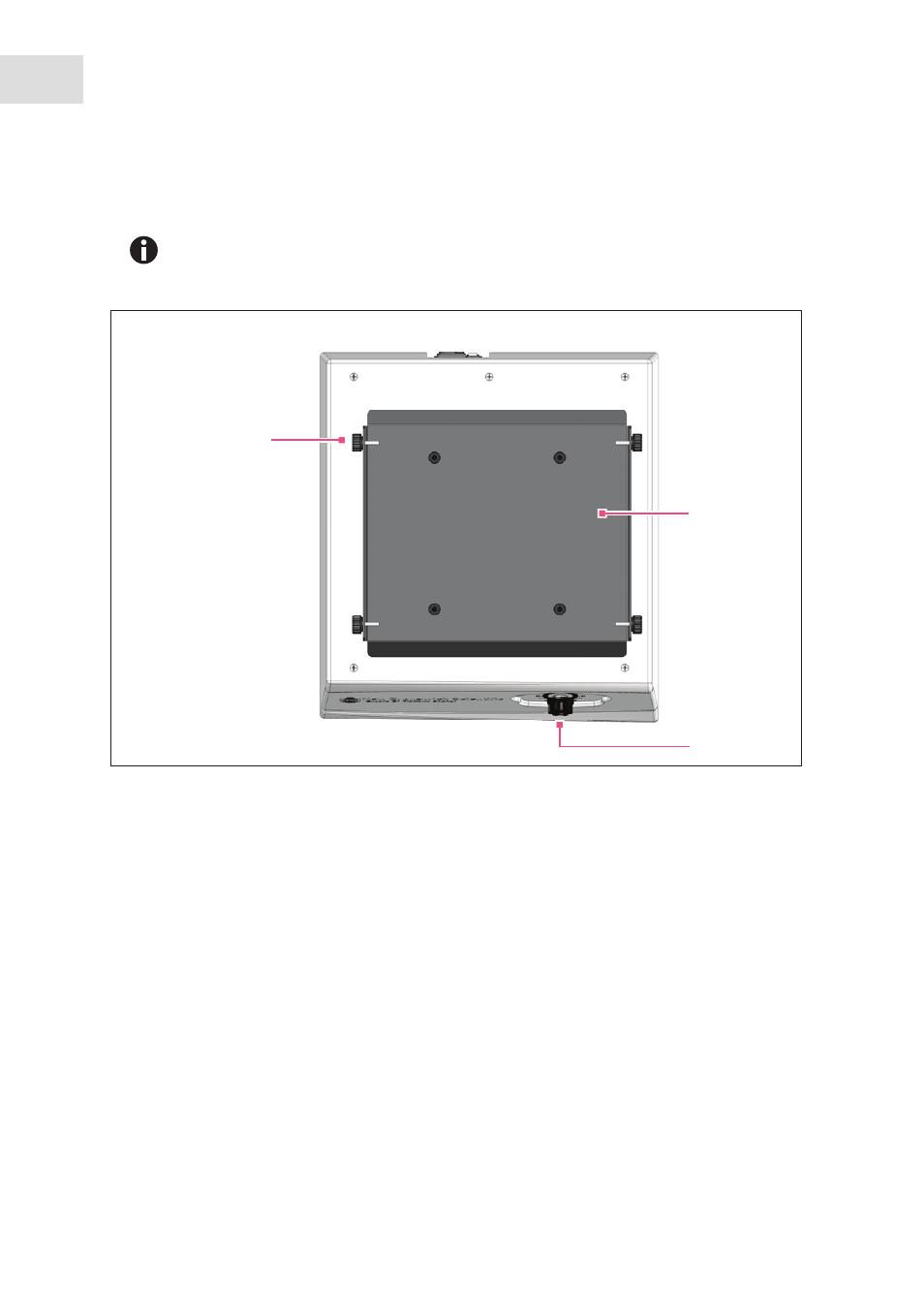

Abb. 4-1: Platform installation (top view)

Fig. 4-1:

Platform installation (top view)

2. Aligning the four slots in the platform with the four holes in the

SPILL COVER, place the platform on

the

SPILL COVER.

3. Tighten the knobs to secure the platform.

4.4

Install flask clamp

Flask clamps purchased for use with universal platforms require installation. All clamps are shipped
complete with hardware.

A platform must be installed on the shaker prior to use.

1

Knobs (4)

2

Spill cover

3

Speed dial

1

2

3
