E NGLISH

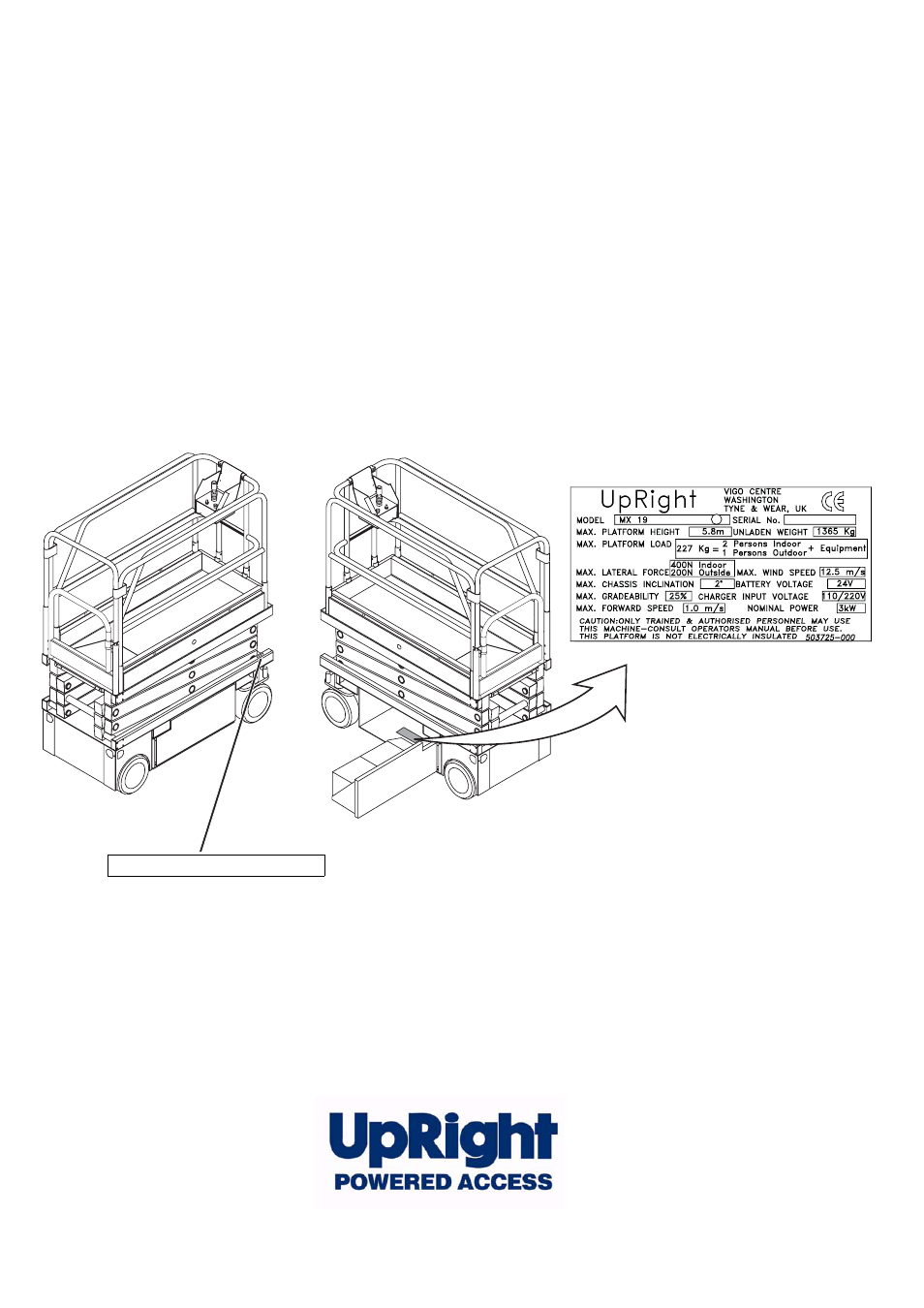

When contacting UpRight for service or parts information, be sure to include the MODEL and SERIAL NUMBERS from the
equipment nameplate. Should the nameplate be missing, the SERIAL NUMBER is also stamped on top of the chassis
above the front axle pivot.
MX19
Serial Numbers 50870 – Current
Stamped Serial Number
www.upright.com
227 Kg, 1 Persons + Equipment
CLONDALKIN,
DUBLIN, IRELAND.
PARKWEST IND EST,
THIS PLATFORM IS NOT ELECTRICALLY INSULATED
THIS MACHINE-CONSULT OPERATORS MANUAL BEFORE USE.
CAUTION:ONLY TRAINED & AUTHORISED PERSONNEL MAY USE
CHARGER INPUT VOLTAGE
MAX. WIND SPEED
UNLADEN WEIGHT
SERIAL No.
UpRight
MAX. CHASSIS INCLINATION
MAX. LATERAL FORCE
MAX. PLATFORM LOAD
MAX. PLATFORM HEIGHT
NOMINAL POWER
MODEL MX19
400N
3kW
5.8m
110/220V
12.5 m/s
BATTERY VOLTAGE 24V
1365 Kg
MAX. GRADEABILITY
MAX. FORWARD SPEED
1.0 m/s
25%
503725000
