3
Operation
Before operating work platform ensure that pre-
operation and safety inspection has been completed,
any deficiencies have been corrected and the
operator has been thoroughly trained on this ma-
chine.
Travel With Platform Lowered
1. Check that route is clear of people, obstruc-
tions, holes and drop-offs, is level and is
capable of supporting wheel loads.
2. Verify Chassis Key Switch is turned to DECK and
Chassis Emergency Stop Switch is ON, pull button
out.
3. After mounting platform latch chain across
entrance.
4. Check clearances above, below and to the
sides of platform.
5. Pull Controller Emergency Stop Button out to ON
position. When button is pushed down Emer-
gency Stop Switch will automatically go to OFF
position.
6. Position Power Switch to ON.
7. Position Drive/Lift Switch to DRIVE.
8. While depressing the Foot Switch, slowly push
or pull the Control Lever to FORWARD or
REVERSE position to travel in the desired
direction. The farther you push or pull the
Control Lever from center the faster the ma-
chine will travel.
Steering
1. With Power Switch ON, position Drive/Lift
Switch to DRIVE.
2. While depressing the Foot Switch, push the
Steering Switch to RIGHT or LEFT to turn wheels
in the desired direction. Observe the tires while
maneuvering the work platform to ensure proper
direction.
NOTE: Steering is not self-centering. Wheels
must be returned to straight ahead position by
operating Steering Switch.
Elevating Platform
1. With Power Switch ON, position Drive/Lift
Switch to LIFT.
2. While depressing the Foot Switch, push Control
Lever forward to UP, the farther you push the
Control Lever the faster the Platform will elevate.
3. If the machine is not level the Tilt Alarm will
sound and the machine will not lift or drive. If
the Tilt alarm sounds the platform must be
lowered and the machine moved to a level
location before attempting to re-elevate the
Platform.
Travel With Platform Elevated
NOTE: Work platform will travel at reduced
speed when platform is elevated.
1. Check that route is clear of persons, obstruc-
tions, holes and drop-offs, is level and capable
of supporting the wheel loads.
2. Check clearances above, below and to the
sides of platform.
3. With Power Switch ON, position Drive/Lift
Switch to DRIVE position.
4. While depressing the Foot Switch, push Con-
trol Lever to FORWARD or REVERSE for
desired direction of travel.
5. If the machine is not level the Tilt Alarm will
sound and the machine will not lift or drive. If
the Tilt alarm sounds the platform must be
lowered and the machine moved to a level
location before attempting to re-elevate the
Platform.
Lowering Platform
1. Position Drive/Lift Switch to LIFT.
2. While depressing the Foot Switch, pull back on
the Control Lever.
Emergency Lowering
If the platform should fail to lower, NEVER
climb down the elevating assembly.
The Emergency Lowering Valve Knob is located
between the scissors at the rear of the machine
(Figure 3).
1. Open the Emergency Lowering Valve by
pulling and holding the knob.
2. To close, release the knob.
The platform will not elevate if the Emergency
Lowering Valve is open.

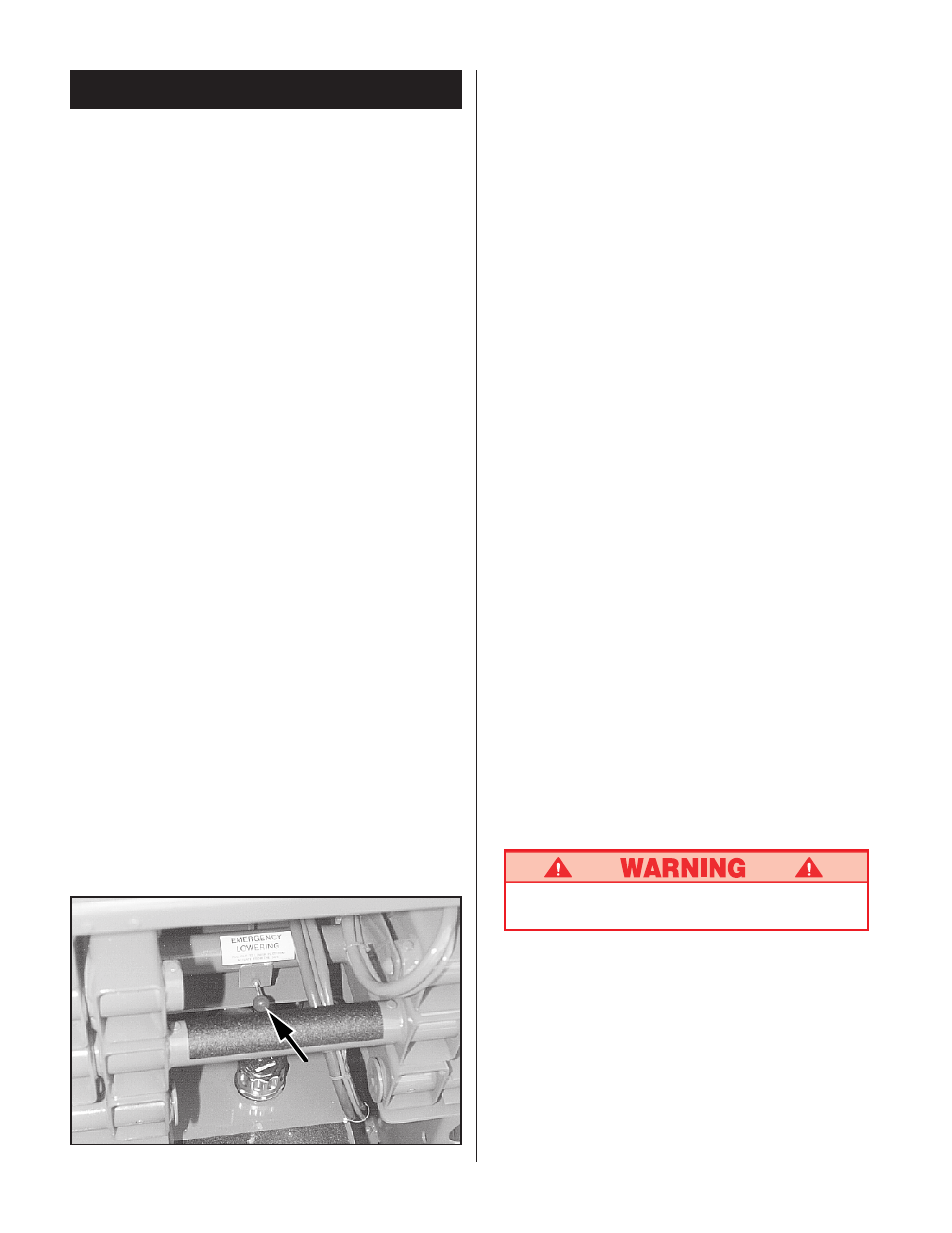

Figure 3: Emergency Lowering Valve Knob
