Specifications*
Safety
Rules
and
Operating
Instructions
Safety
Rules
and
Operating
Instructions
FOR MORE INFORMATION
Local Distributor:
TEL: (800) 926-5438 or (209) 891-5200
FAX: (209) 896-9012
PARTS: (888) UR-PARTS
PARTSFAX: (209) 896-9244
1775 Park St., Selma, CA 93662
http://www.upright.com

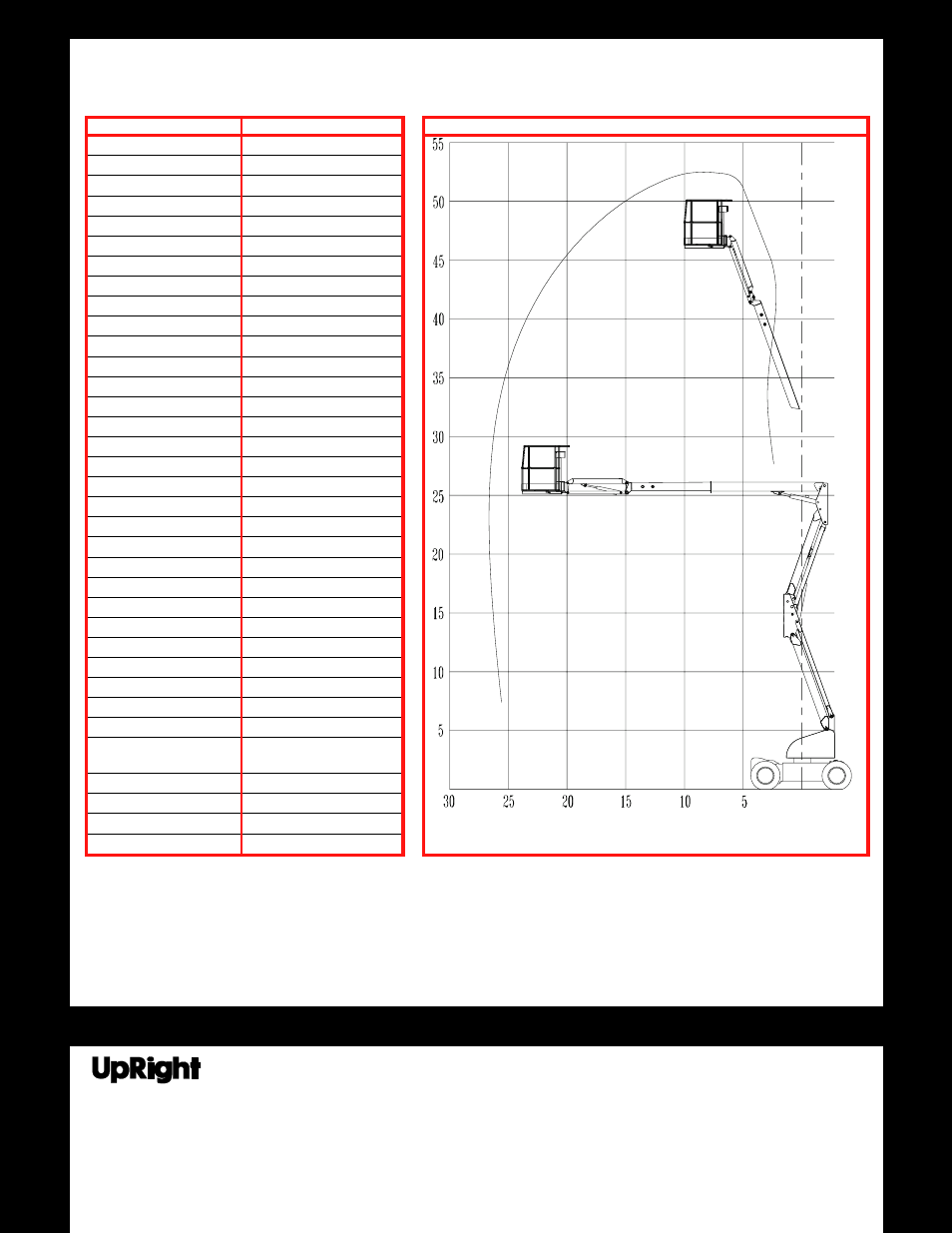

REACH ENVELOPE DIAGRAM ITEM SPECIFICATION
Height
Working height maximum 52 ft.
Platform height maximum 46 ft.
Platform step in height 9 in.
Up and over height 25 ft.
Drivable height 46 ft.
Horizontal outreach 24 ft. 6 in.
Turret rotation 360 deg. non-continuous
Platform rotation 160 deg.
Tail swing None
Jib length 5 ft.
Jib arc 140 deg.
Inside turning radius 2 ft.
Outside turning radius 9 ft. 10 in.
Drive speed (lowered) 3.5 mph
Drive speed (elevated) .34 mph
Gradeability 30%
Dimensions (boom stowed)
Platform Size 69 in. x 39 in.
Guardrail height 43
1
/
2
in.
Toeboards 6 in.
Maximum platform capacity 500 lbs.
Maximum no. of occupants 2
Weight 14,300 lbs.
Overall height 6 ft 6 in.
Overall length 17 ft. 10 in.
Overall width 5 ft. 9 in.
Wheel base 73 in.
Wheel track 59 in.
Ground Clearance 6 in.
Power source Eight 6V, 350 AH Batteries
One Kubota12 HP Diesel
System voltage 48VDC
Maximum Hyd. Pressure 2400 psi
Controls Electric Proportional
Tires 9.5x16.5 10 ply highway tread
DIMENSIONS IN FEET
* Specifications subject to change without notice.
Refer to Service Manual for complete parts and service information.
Meets or exceeds all applicable requirements of OSHA and ANSI A92.5-1992
