7
4. Remove the old belt. (You may also cut the old belt with
scissors to quickly remove it).
5. Slip the new cogged belt over the gear on the motor shaft
(as shown in Figure 9).
6. Now slip the belt onto the brush gear of the brush roller.
7. Slide the bearing housing in the corresponding slots on
the base. Make sure both are completely pushed into
place; the tab on the slanted bearing housing must fit into
the slot at the bottom of the brush compartment.
8. Replace the Brush cover as described in item 6 under
Brush Roller Cleaning.

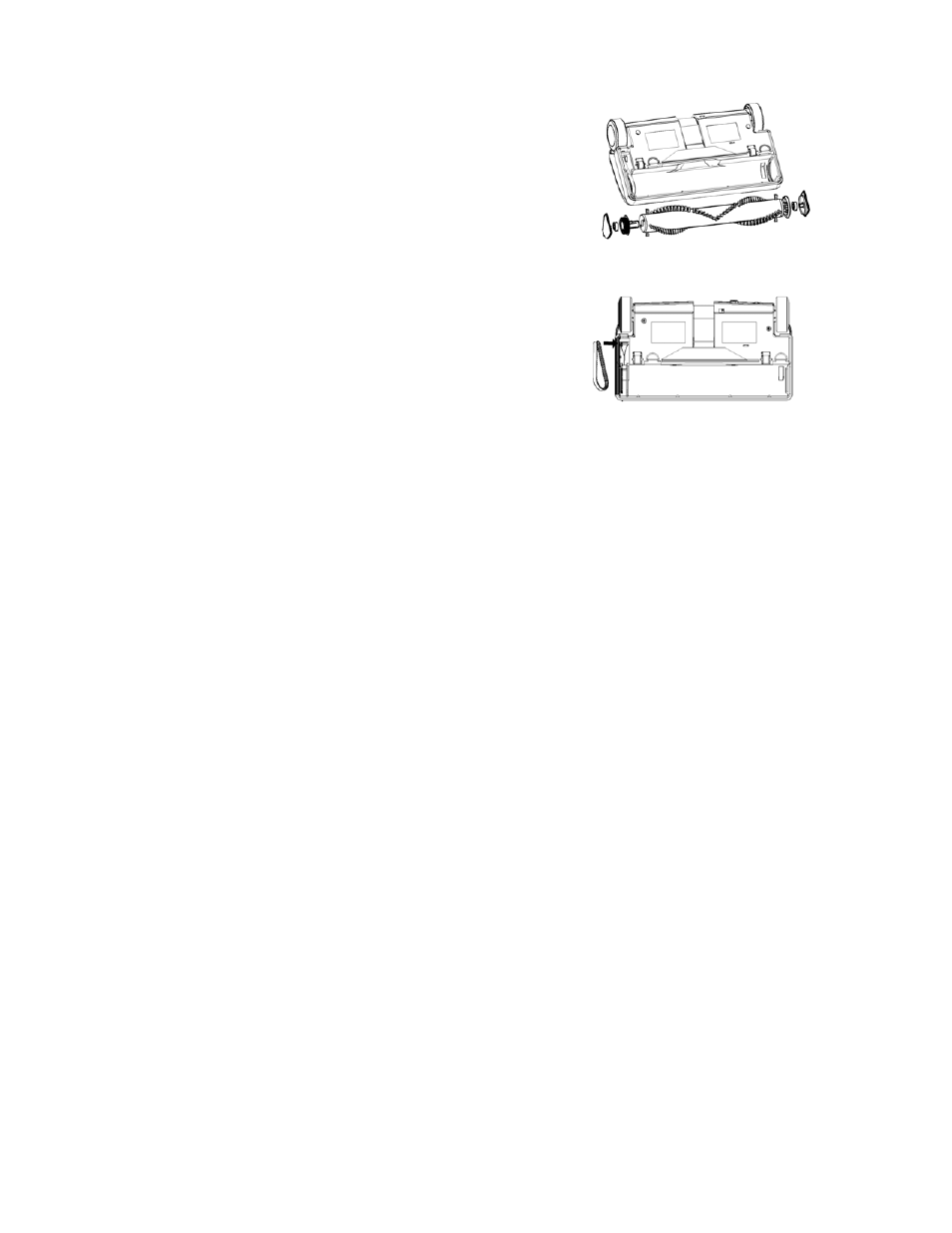

Figure 8.
Figure 9
