6.1.5 Power packs with 25 l oil container
The oil container is filled ex works with 15 l of hydraulic oil. If necessary,
the oil container can be filled up to a total volume of 24 l.
The filler plug for hydraulic oil (fig. 1) includes a dipstick with 2 marks:
1 = standard oil level 15 l ; 2 = max. oil level 24 l
6.2 Control valves
A number of control valve versions is available to meet different operator’s
requirements.
6.2.1 Drain valve "1E" for control of one single-acting jack
6.2.2 2-way distributor valve "2E" for control of two single-acting jacks
6.2.3 4/3-way valve "1D" for control of one double-acting jack

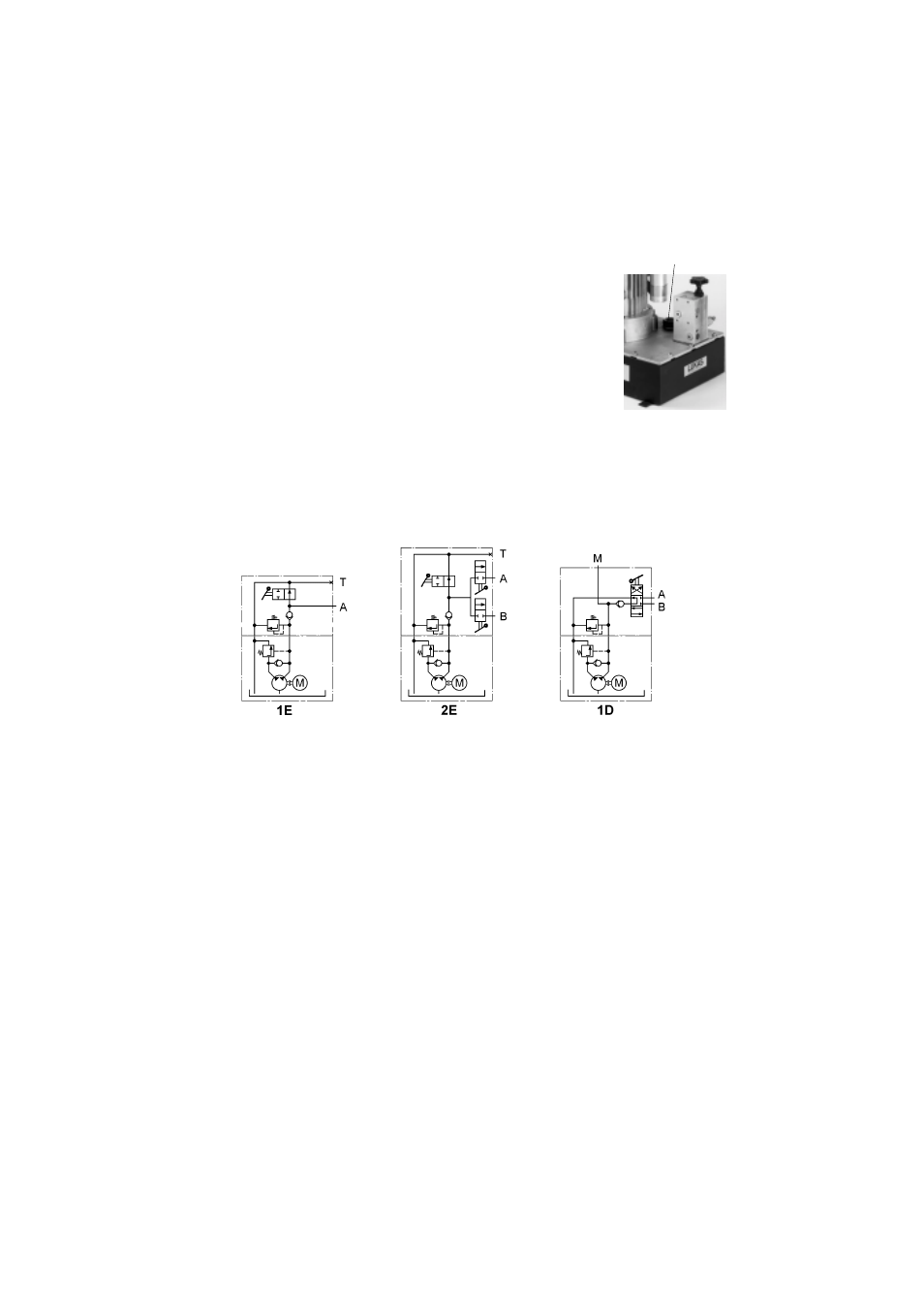

6.3 Hydraulic diagrams as per 6.2
7 General steps prior to lifting
7.1.1 Version "1E" : Open hand wheel (1) on the drain valve (see fig. 2).
7.1.2 Version "2E" : Open hand wheel (1) on the drain valve. Close hand wheels (3) on the
2-way distributor valve (see fig. 3).
7.1.3 Version "1D" : Switch hand lever on the control valve to middle position (= marked O)
(see fig. 4).
7.1.4 Starting the motor
---->
Petrol engine: see separate operating manual.
Open the petrol cock and start the motor.
----> Electric motor: The on/off switch of the motor is situated at the motor terminal box.
Position I:
the motor is started.
Position 0: motor standstill.
Filler plug for
hydraulic oil
fig.1
