6
8700 Put the rail attachment on top of the rails as shown in figure 4.
Observe that the rail attachments ar not identical, i. e. there is a "left" and a "right" one.
8800 Connect the other ends of the holding ropes with the rail attachement as desribed under
item 8600.
Pulling device mounted ready for operation
9000 Hydraulic connection
9100 Connect a red/blue hose pair to motor pump / control table. For proper connection, adhere
to the separate operating manual of the power and control unit. The hydraulic function of the pulling
cylinder is the same as with LUKAS lifting cylinders, i. e. you must connect it to a control valve
that you normally use for lifting.
9200 Couple the blue hose with the return connection (R) on the pulling cylinder (see fig. 4).
9300 Couple the red hose with the high pressure connection (P) on the pulling cylinder (see
fig. 4).
10000 Operation
10100 Safety advise
Place the power and control unit in an as great as possible distance from the pulling
device and make sure that no personell is in a radius of at least 10 m around the pulling
device. Even when the device is properly used, parts of the object to be pulled might
split apart. Injury might be caused by such parts, respectively by the pulling rope itself
should it whip in an uncontrolled movement!
10200 Switch the motor pump on (see separate manual).
10300 Switch the valve on the control unit to "lifting" (see separate manual). Now the pulling
cylinder extends with movement of the pulling rope and the object will be pulled.

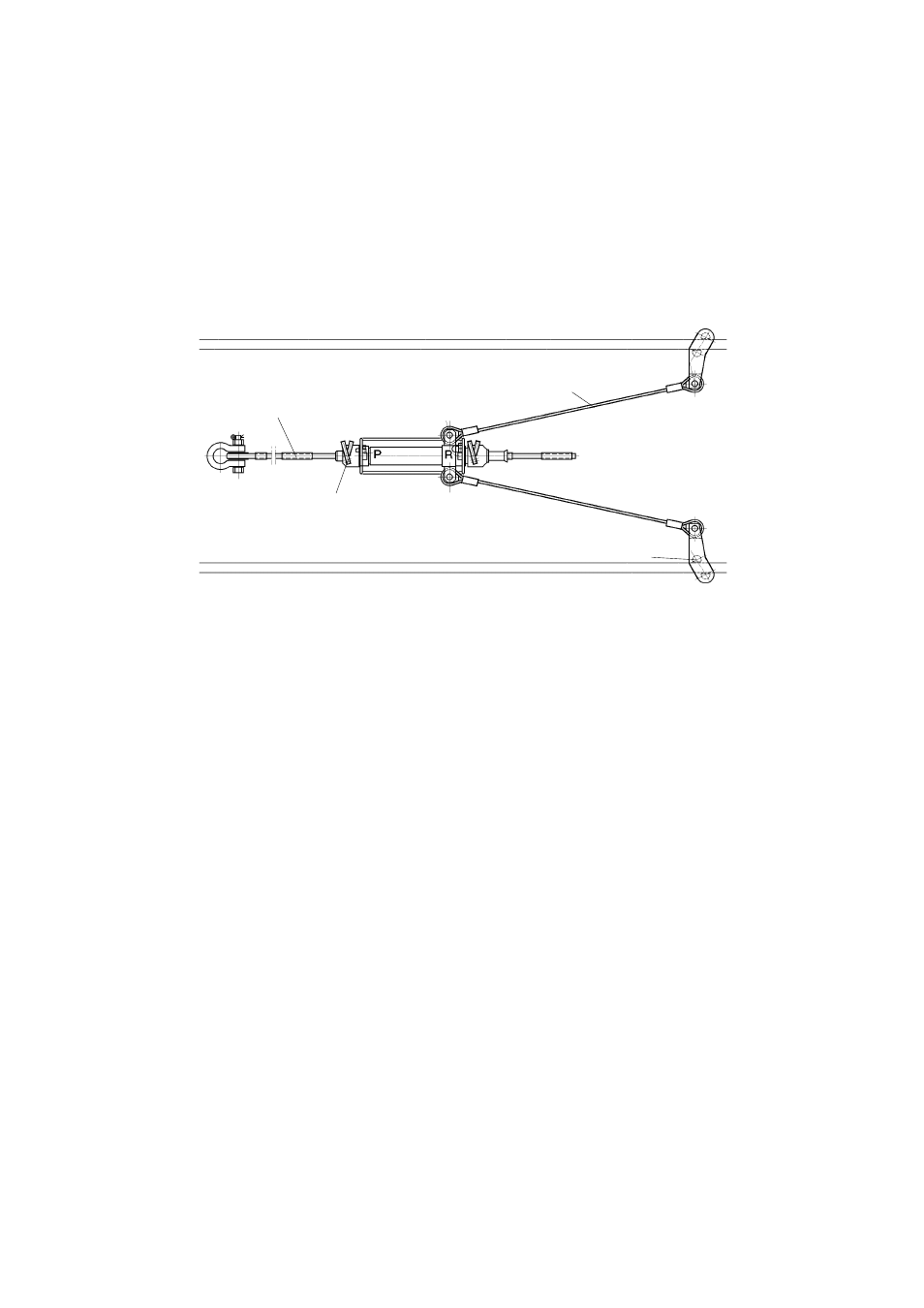

pulling
rope
holding
rope
rail attachement
arresting
mechanism
fig. 4
