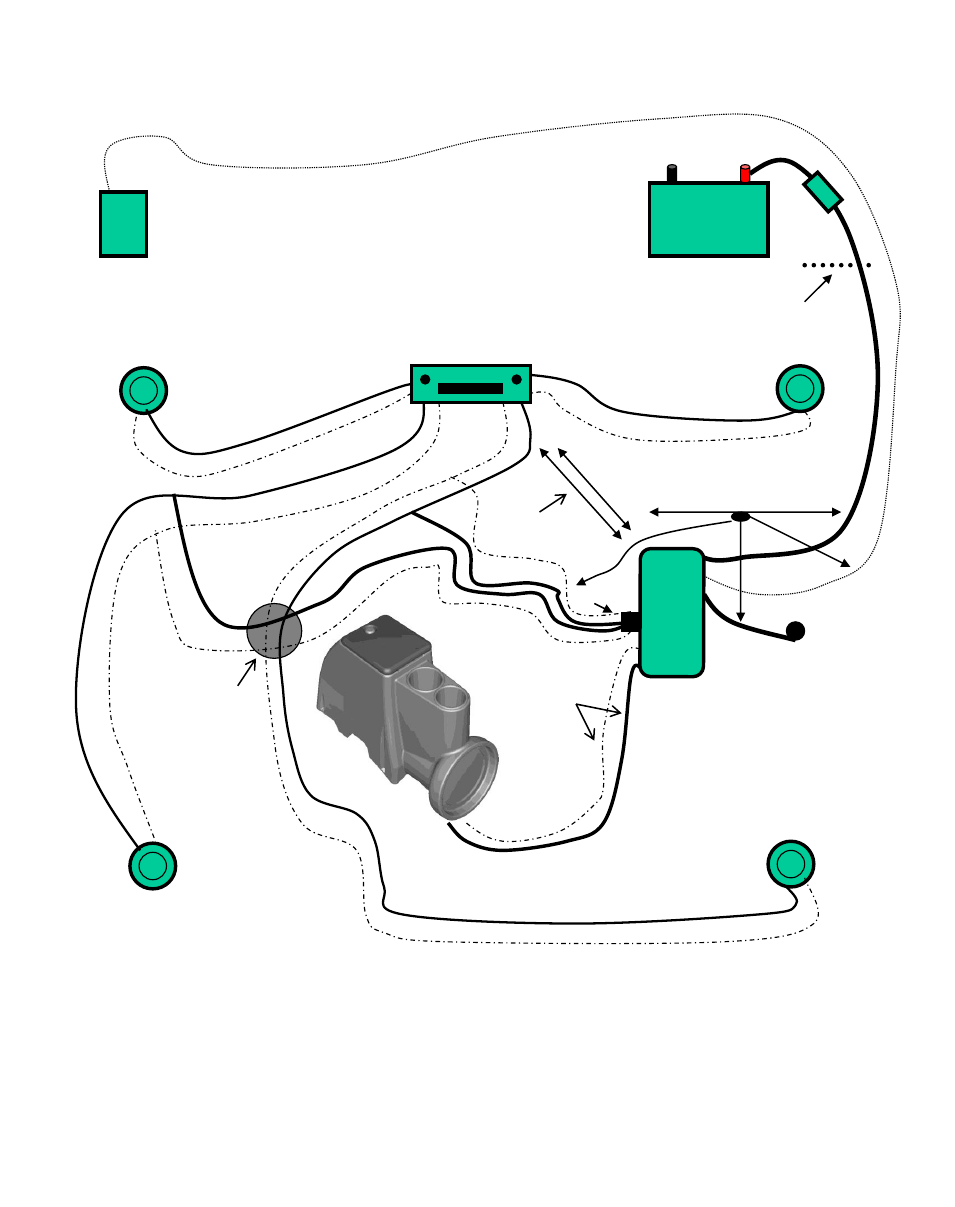

LEFT DASH SPEAKER RIGHT DASH SPEAKER
AMPLIFIER
RADIO
LEFT REAR SPEAKER
(SOUNDBAR, ETC.)
RIGHT REAR SPEAKER
(SOUNDBAR, ETC.)
CAR BATTERY
+
-
+
FLOOR
SEAT BOLT
-
JEEP FUSE BLOCK UNDER DASH.
USE AN ACCESSORY FUSE INSERT,
ONE THAT ONLY RECEIVES POWER
WITH THE IGNITION IN THE ACCESSORY
POSTION FOR THE AMP REMOTE WIRE.
OR USE YOUR RADIO’S REMOTE WIRE IF IT
HAS ONE.
REM. +
Plenty of wire to run amp
from final place under
Intra-Pod
+
-
-
+
-
+
+
-
RCA’s to
radio if possible
OR
Wire Plug
Bridged
Mode
+
-
IT IS RECOMMENDED THAT THE REMAINING AIR SPACE AROUND THE SPEAKER
WIRES (THROUGH THE GROMMET HOLE) IS PLUGGED! AT HIGH POWER, THIS AIR
LEAK COULD RESULT IN A WHISTLING NOISE.
Drill hole in bottom right corner of firewall
near where passenger floor rolls up and meets
firewall
Fuse
Block
Just an overlap on
diagram, wires do
not connect here.
3
