Sbpr_back, Step 2, Step 4 – PowerBridge SBPR User Manual
Page 2: Step 3, Wall installation, Wiring

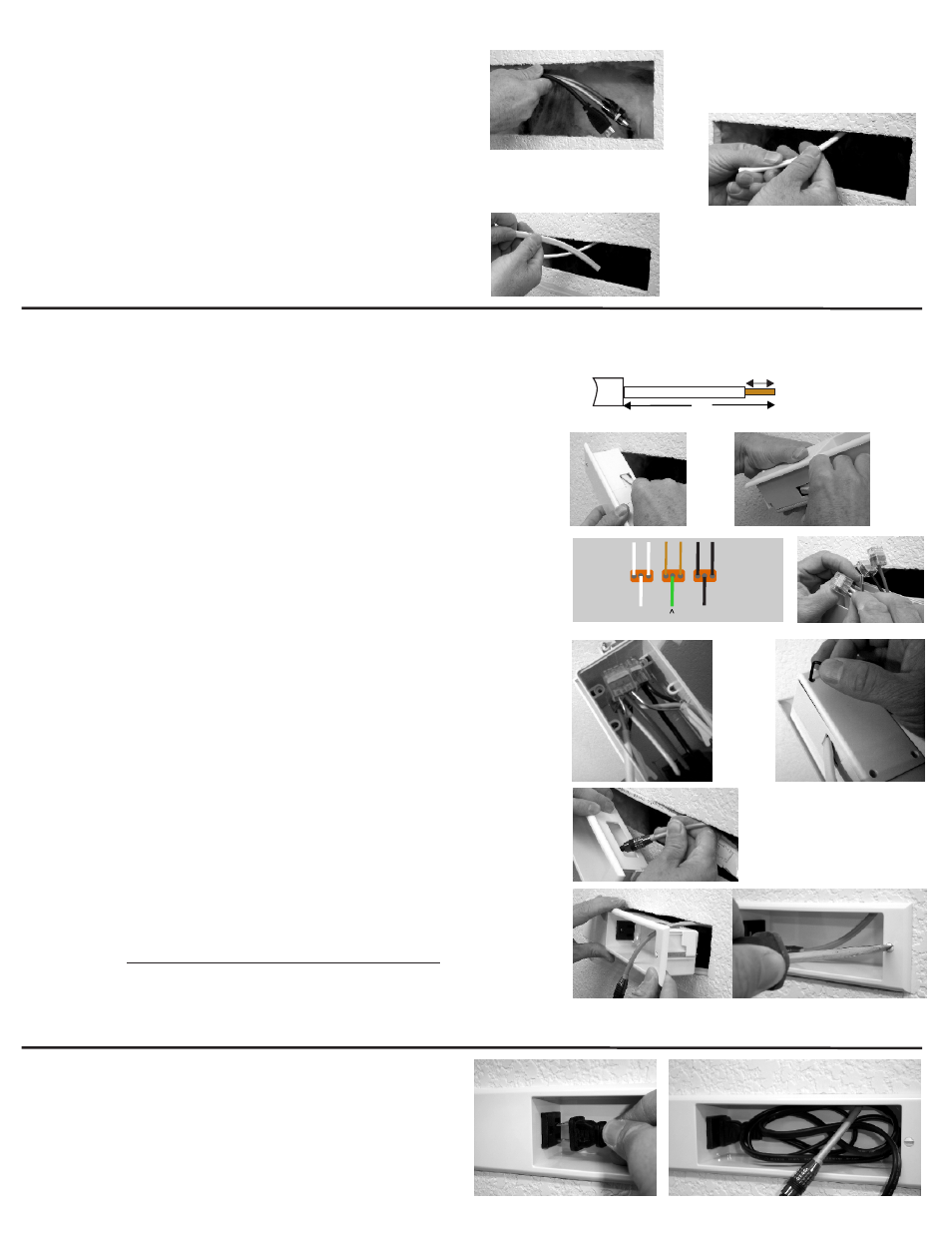

Step 2
Wall Installation
A)
Begin at the upper TV PowerOUT location.
1) Drop / wall-fish audio cables to the SoundBar
2)
REPEAT for power wire
3) Pull power wire and audio cable through SoundBar cutout.
Step 4
Plug in SoundBar power cord.
Wind cord in cavity.
Install SoundBar per manufacture
directions.
B)
to the PowerBridge PowerIN location.
Drop / wall-fish power wire down
G) Slide SoundBar power panel into wall opening.
Use Flat-Blade screw driver to secure panel to wall.
Careful to not over-tighten
Complete installation of PowerBridge Power Kit
.
1.25”
1/4”
Wire Strip Gauge
White Wire >
WHITE Wire
Green Wire BARE Wire
Push wire
all the way in
A)
Strip 1/4” from both ends of black and white wires
Strip outer sheath from power-wire as shown on label 1-1/4”.
B) Push stripped power wire from TV outlet through TOP tab.
C) Insert each wire into the ORANGE colored wire connector.
White>White wire. Black>Black wire. Green>Bare wire.
PUSH WIRE ENDS ALL THE WAY IN, TUG TO VERIFY SECURE
Repeat A,B,C for lower wire set through BOTTOM tab.
F) Insert audio cable through CablePass opening
Step 3
Wiring
D) Tuck all wiring within the box area as shown
E) Screw back cover with supplied HEX screws and HEX tool
