14
PureFlow AirDog
AirDog
®
II 2001-2010 DuraMax Diesel
Section 5-C Fuel Lines
AirDog
®
Fuel Return Line!
Installing the fuel 'Return to Tank' assembly in Filler Tube

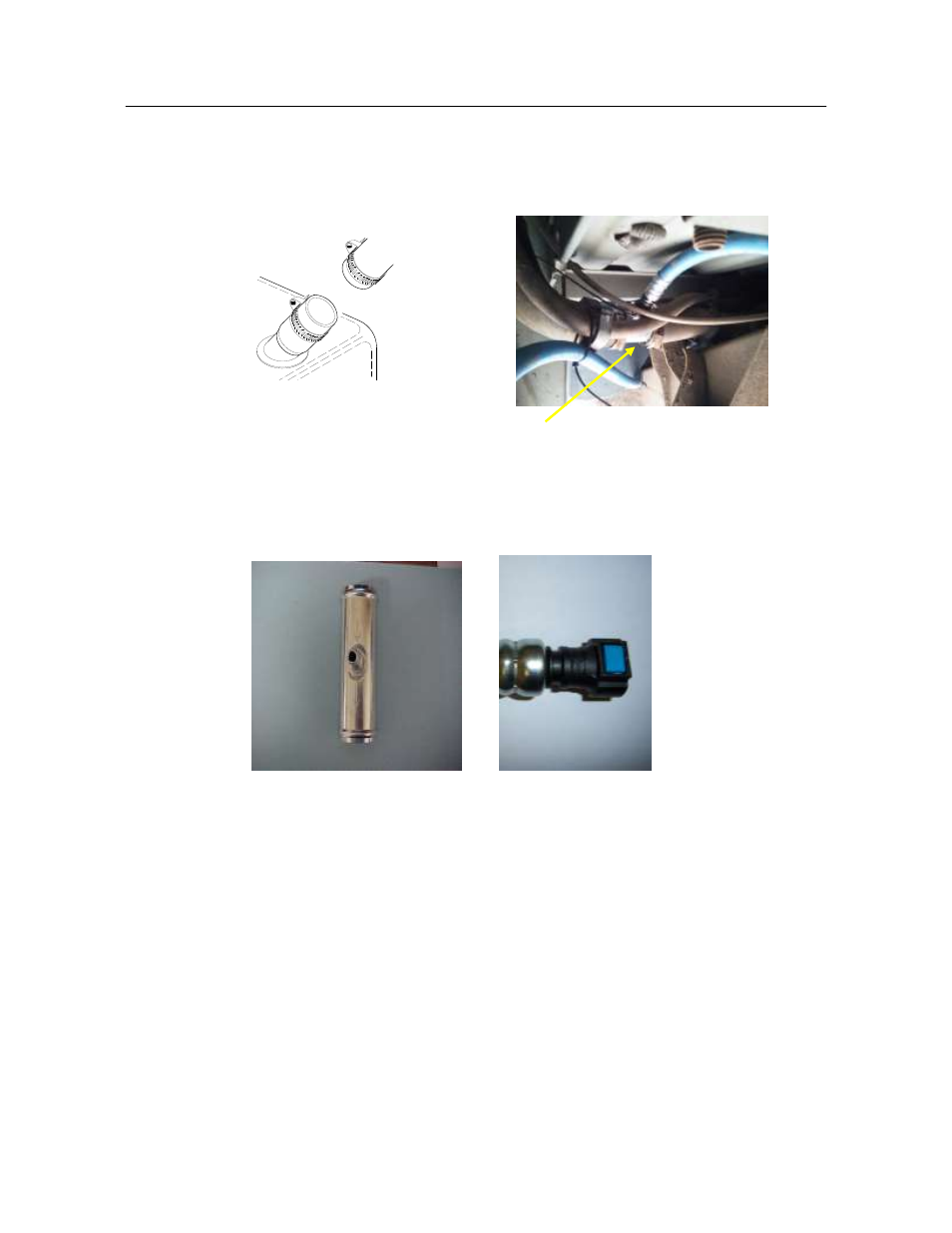

Figure 19
5C-1. Cut filler tube as illustrated, removing ½ inch. Loose assemble clamps on each end of
filler tube.
NOTE: Some 01-04 trucks have a plastic tube inside of the fill tube, be sure NOT to cut this
clear tube. You will need to only cut the outer rubber hose then slide the plastic tube inside the
return fill tube supplied in the kit, then clamp the rubber fill tube onto the adapter as shown in
figure 19.
Figure 20 Figure 21
5C-2. Insert “Return Fuel Filler Tube” assembly in filler tube. INSTALL THE FILLER
TUBE WITH ARROWS POINTING TOWARD THE TANK!! SEE FIG 20
Properly tighten clamps.
5C-3. Insert the female quick connect end (Figure 21) of the “Return Hose
Assembly” into the previously installed male fitting for the tank port (step 4-4).
The fitting will “click” when properly installed.
5C-4 Attach the other end of the “Return Hose Assembly” onto the male end of the
“Return Fuel Filler Tube” installed in step 5C-2. A ”click” will be heard when the
fitting is properly connected. Install as shown in figure 19.
5C-5 Any excess fuel hose can be addressed by routing the hose in a fashion to take up
the extra length, or a section of the hose can be removed. Push lock splices have
been included if you choose to remove the excess hose. Be sure not to kink the hose.
Fuel Tank
Hose Clamp
Filler
Tube
Fuel
Return
Fitting
