12
Raptor™ 100 & 150
2003 - 2007 Ford PowerStroke
Section 6 Electrical Harness

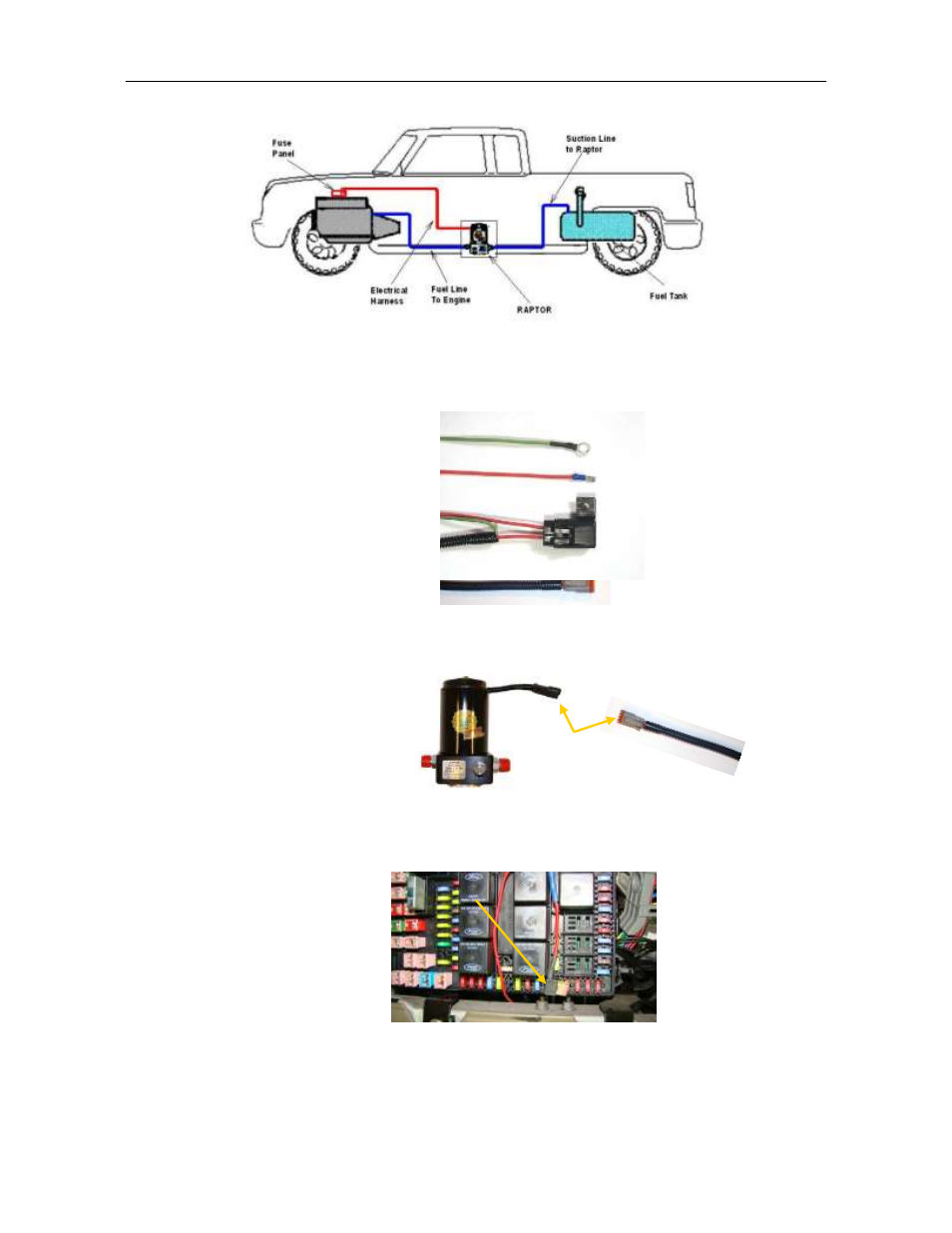

Figure 14
Installing the Raptor™ Fuel Pump wiring harness
.
Ground Wire
Hot Lead
The Raptor™ wiring harness.
Water Proof Fuse
Raptor Pump Lead
Figure 15
6-1.
To connect the Power Supply Lead to the Raptor™. Insert the 2 pin Deutsch connector on
the end of the wiring harness into the corresponding connector on the Raptor™.
Figure 16
6-2.
Route the Raptor™ 'activation lead', to the fuse panel on the dash to the left of the
steering column. Attach spade connector into a spare fuse holder on the panel that is
“hot” when the starter key is turned to the on position. Or connect it to the High Pressure
Pump Lead.
Figure 17
6-3.
Connect the Black (-) wire to an adequate ground.
BE SURE TO PROPERLY SECURE THE WIRING HARNESS TO THE VEHICLE.
