PureFlow AirDog
Raptor™ 100 & 150
1989-1993 Dodge Cummins
Section 5C Fuel Lines
Connecting the Raptor™ to the Fuel Tank
5C-1. Remove the original fuel suction line from fuel tank by squeezing the tabs on the end of
the Quick Connect connector together and carefully removing it from the suction tube.

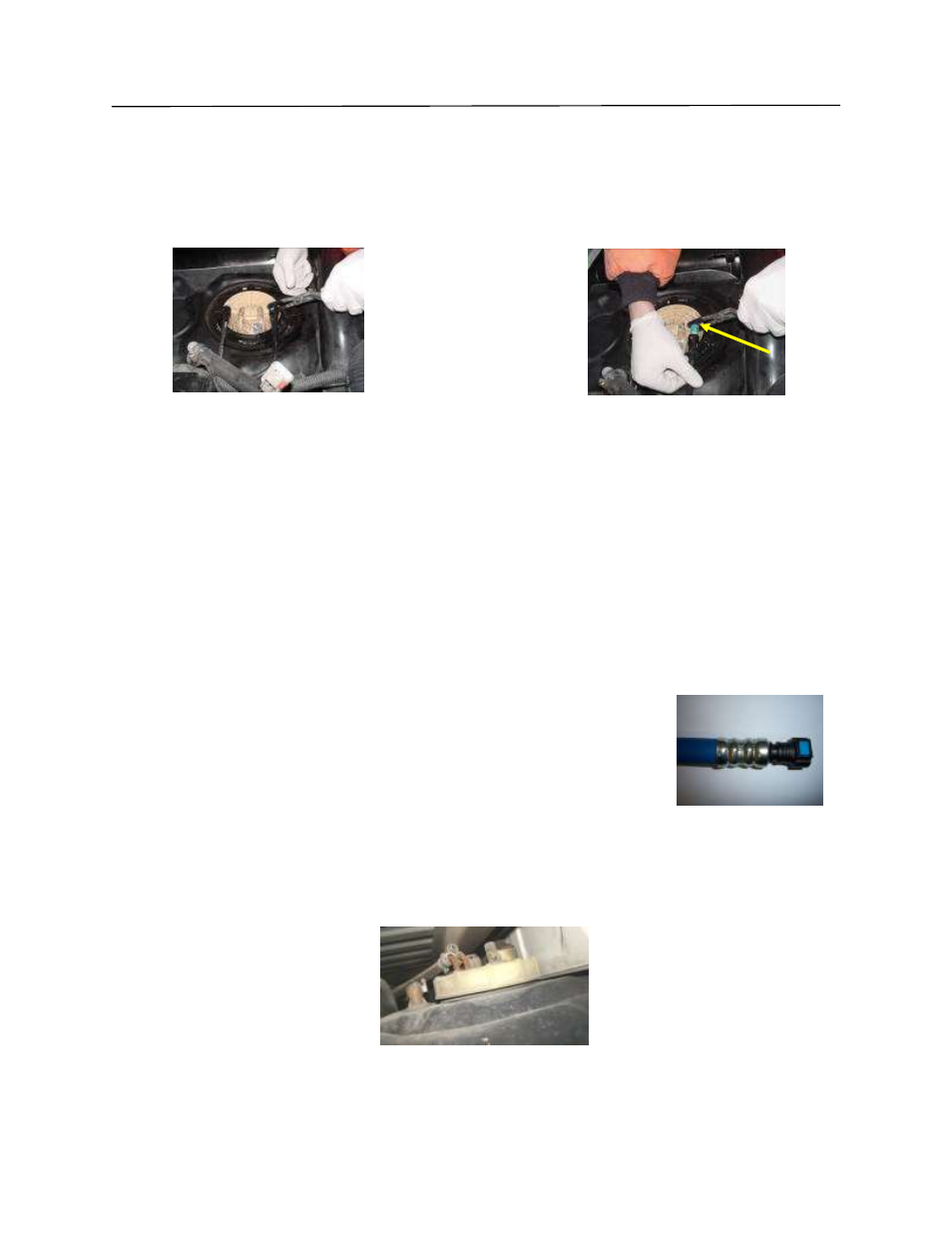

Figure 16 Figure 17
(In more detail)
To release the original fuel supply line from the fuel tank suction tube, center and firmly
push the factory Quick Connect fitting against the suction tube. While firmly holding the
plastic retainer ring onto the fitting, depress and hold the plastic ring. Now, pull the quick
connect fitting from the suction tube. It can be difficult to remove the fitting if the
retainer is cocked and not held perfectly square to the tank suction tube.
IMPORTANT: After removing the factory line check to make sure that the blue plastic
retainer was removed from the suction tube with the line. If the blue retainer remains
attached to the tank suction tube, the new Raptor™ fuel supply line Quick Connect will
not properly seat.
Consult the factory manual if unsure of this procedure!
5C-2. Insert the female quick connect end (see figure 18) of the
“Suction Hose Assembly” to the male fitting install in the fuel
“IN” port during step 4-1 of this manual. A “click” will be heard
when the fitting is properly connected.
Figure 18
5C-3. Attach the other end of the “Suction Hose Assembly” to the male quick connect on the
top of the fuel module where the factory suction line was once located. A “click will be
heard when the assembly is properly connected.
Figure 19
