NOTE: If "MPH, °F, PSI" is selected in the
setting of units, data other than
the engine speed is not displayed.
NOTE: If "MPH, °F, PSI" is selected in the
setting of units, data other than
the engine speed is not displayed.
Note: When displaying the speed minimum value, the unit(km/h or MPH)
blinks and the minimum value recorded in Rec Mode is displayed.
When current values exceed the values set as warnings by using the Defi-Link Control Unit II(or the Defi-Link
Control Unit) and when disconnection or short circuit of sensor wires or sensors are detected, the screen
indicates the warning.
※ Priority is given to the tachometer warnings over other warnings.
※ Warnings on the boost and intake manifold pressure are not indicated.
※ The warning on the oil pressure is not indicated while the vehicle speed is under 10km/h(6MPH).
※ A buzzer of the Defi-Link Control Unit II sounds irrespective of the setting of the D.C.Unit.
【 A】Example on direct hookup of a
warning lamp
【 B】Example of how to connect an electric motor by using a relay
and how to load a LED indicator

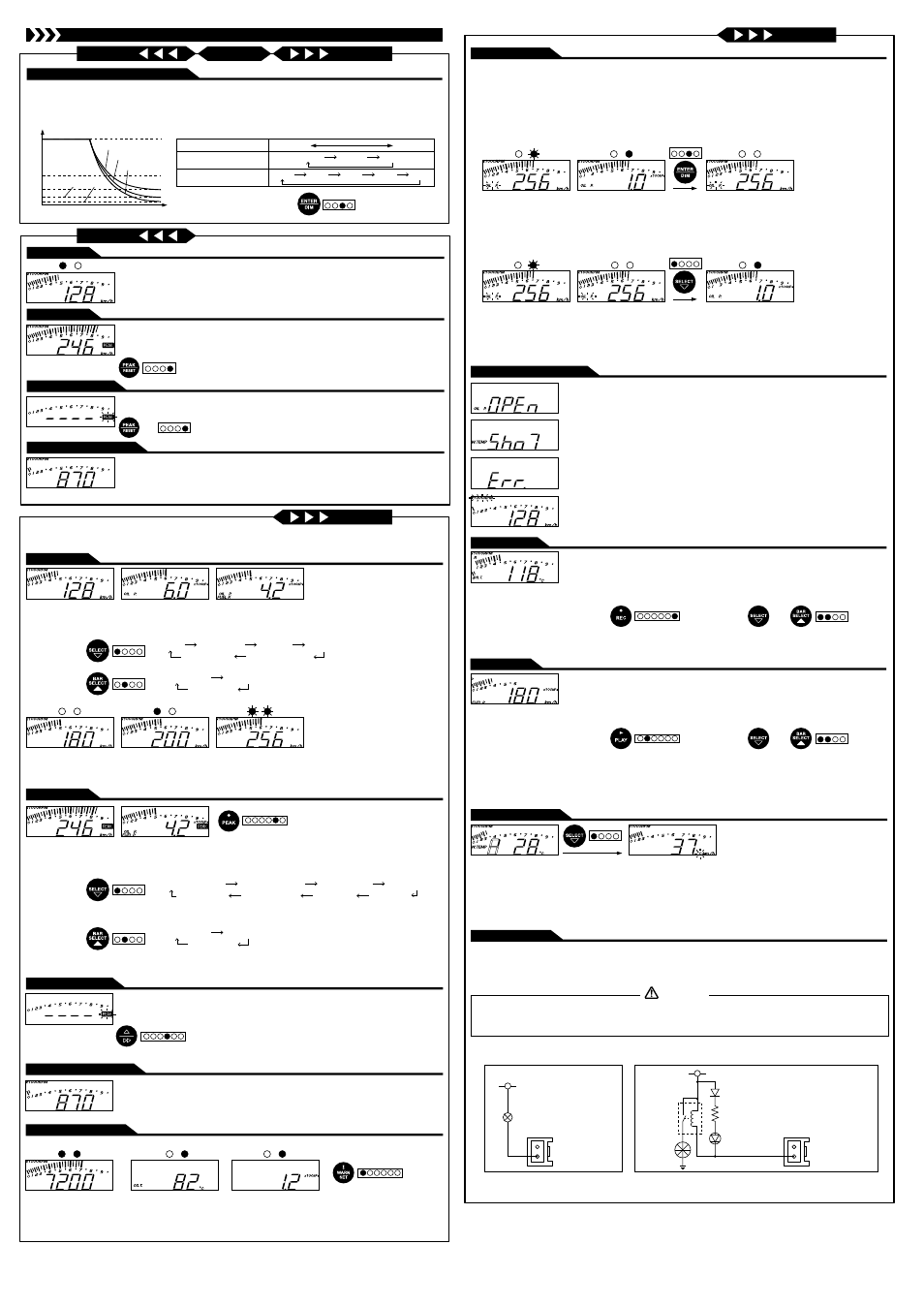

3.Operation Mode 3.Operation Mode
● Do not connect anything to the CONT. OUT connector unless this function is used.
● Load current of the Control Output is less than 300mA.
● Any damages to other products connected to the CONT. OUT connector is not covered by the warranty.
Caution
DARK BRIGHT
Speed Maximum Speed Minimum Engine speed
Oil temp. Oil press. Fuel press. Exhaust temp.
Water temp.
Speed Oil temp. Oil press. Water temp.
Fuel press. Exhaust temp.
Engine speed
Fuel press.
Oil press.
Engine speed
Fuel press.
Oil press.
IGN(12V)
Lamp
CONT. OUT
connector(red)
IGN(12V)
Relay
LED
Indicator
Diode
Resistor
Electric
motor
CONT. OUT
connector(red)
① Real Mode ① Real Mode
Adjustment of brightness of the display Adjustment of brightness of the display
① Real Mode ① Real Mode
② Peak Mode ② Peak Mode
③ Peak Reset Mode ③ Peak Reset Mode
④ Special Display Mode ④ Special Display Mode
The actual data on current speed, engine speed, oil pressure, fuel pressure, oil temperature, water temperature, and
exhaust temperature is displayed in this mode. Each time the SELECT/BAR SELECT button is pressed, the displays of
the digital and bar section will change in the following order. Data which sensors are not connected cannot be selected.
② Peak Mode ② Peak Mode
NOTE: When connected to the Defi-Link System, the PEAK button of the the D.C.Unit is unavailable.
※ For operations ① through ⑨ shown below, refer to the operation manual of the Defi-Link Control Unit II
(or the Defi-Link Control Unit), too.
By pressing the PEAK button of the Defi-Link Control Unit II(or the Defi-Link Control Unit) during the Real Mode,
the Peak values are displayed. The displayed data will be changed by pressing the SELECT/BAR SELECT
button. Pressing the PEAK button again during the Peak Mode will return to the Real Mode.
Digital Display
Section
Digital Display
Section
Bar Display
Section
When the engine speed exceeds the warning value set as the tachometer warning1 in the setting of tachometer
warning, the green LED lights up. When the engine speed exceeds the tachometer warning2, the green and red
LEDs blink. The tachometer warning2 cannot be set in the setting of tachometer warning.
The actual vehicle speed is displayed digitally and the engine speed is displayed in the
bar section. When the engine speed exceeds the warning value set as the tachometer
warning1 in the setting of tachometer warning, the green LED lights up. When the engine
speed exceeds the tachometer warning2, the green and red LEDs blink.
Pressing the PEAK button during the Real Mode will bring up the Peak Mode. Recorded
peak values for the speed and the engine speed will be displayed. Pressing the PEAK
button again during the Peak Mode will return to the Real Mode.
During either the Real Mode or the Peak Mode, the peak values will be reset by pressing
and holding the PEAK button for more than two seconds.
③ Peak Reset Mode ③ Peak Reset Mode
When the UP button of the Defi-Link Control Unit II is pressed in the Peak Mode(or when
the PEAK button of the Defi-Link Control Unit is pressed and held for more than two
seconds in any of Real Mode, Peak Mode or Warning Mode), the peak values will be reset.
If Special Display Mode is set at 1 or 2, the special display will start when the vehicle speed
continues 0km/h or 0MPH for more than 10 seconds in the Real Mode. In this mode, the engine
speed or the segment animation is played. When the speed gets to more than 0km/h or 0MPH
or when any button of the D.C.Unit is pressed, the display will return to the Real Mode.
⑧ Rec Mode ⑧ Rec Mode
⑦ Self-Diagnosis Function ⑦ Self-Diagnosis Function
⑩ Warm-Up Mode ⑩ Warm-Up Mode
⑪ Control Output ⑪ Control Output
This Warm-Up Mode is available when either a water temperature sensor or an oil temperature sensor is
connected to the Defi-Link Control Unit II（or the Defi-Link Control Unit) and the setting of Warm-Up is completed.
After the Opening Mode, the Warm-Up Mode starts if the sensor data is below the set value. During this mode,
leftmost digital segments are lighted in order. If the displayed data is changed by pressing the SELECT button
during this mode, the unit of temperature blinks(℃/°F). When the temperature reaches the set value, the Warm-
Up Mode is completed and returns to the Real Mode.
This Control Output function is available when either a water temperature sensor or an oil temperature sensor is
connected to the Defi-Link Control Unit II（or the Defi-Link Control Unit) and the setting of the Control Output is
completed. When the temperature reaches the set value, the Control Output signal is read out to the terminal of
CONT. OUT of the D.C.Unit.
⑥ Warning Mode ⑥ Warning Mode
When a current value exceeds the set value, the red LED and the name of the data blink. A buzzer sounds at
the same time if warning buzzer is turned on. One minute later, the red LED and the name of the data stop
blinking and start lighting and the current warning value is displayed. When several values exceed the warning
set values, the latest warning is indicated. Pressing the ENTER button will return to the last display before the
indication of warnings. If the value still exceeds the set value, the name of the data will continue to blink.
【 A】If the auto warning mode is turned ON in the setting of auto warning
When a current value exceeds the set value, the red LED and the name of the data blink. A buzzer sounds at
the same time if warning buzzer is turned on. One minute later, the red LED goes out, the buzzer is stopped,
and the name of the data blinks faster. The red LED lights up and a buzzer sounds again if the warning data is
selected to display in the digital display section by using the SELECT button. When several values exceed the
warning set values, the name of data which is being displayed in the digital display section light up and other
names blink.
Disconnection(open)
This display means that a wire disruption, a disconnection or an improper wiring
connection has occurred at the sensor or in the sensor wire.
Short circuit
This display means that a short circuit has occurred somewhere at the sensor or in the
sensor wire.
Serial error
This display means that communications between the Defi-Link VSD X and the Defi-Link
system have been interrupted.
Setting Error of the number of cylinders
"x1000RPM" blinks if the number of cylinders of the Defi-Link Control Unit II(or the Defi-
Link Control Unit) is not set or if the METER OUTPUT2 connector of the Defi-Link
Control Unit II and the LINK connector of the D.C.Unit are connected by error.
Note: The Real Mode will turn to the Rec Mode only when the speed is more than 1km/h (1MPH). The speed is not
recorded if the REC button is pressed When the speed is 0km/h(0MPH) and Real Mode will turn to the Play Mode.
When the vehicle is moving at the speed of 1km/h(1MPH) or more, connected sensor
data and the speed data are recorded for a maximum of 3 minutes by pressing the REC
button of the Defi-Link Control Unit II(or the Defi-Link Control Unit). "R" is displayed
during recording. Data displayed in the digital and bar display section can be changed
by pressing the SELECT/BAR SELECT button.
⑨ Play Mode ⑨ Play Mode
Note: Once pause, fast-forward or rewind is performed with the Defi-Link control Unit II(or the Defi-Link Control Unit), the
recorded data cannot be played back. To play back the speed data, the Play Mode needs to e started over again.
Note: Operation needs to be performed while the vehicle is stationary. If the PLAY button is pressed in vehicle's running
condition, speed data will not be played back but the Play Mode will turn to the Rec Mode and the speed data is
overwritten.
Note: Connect IGN(12V) to 12V line on ignition switch for sure. Power of a connected product is not turned off if
IGN(12V) is connected to battery(+) line.
When the vehicle speed is 0km/h(0MPH), recorded data are displayed by pressing the
PLAY button of the Defi-Link Control Unit II(or by pressing the PLAY/REC button of the
Defi-Link Control Unit during Peak Mode). "P" is displayed during playing of data. Data
displayed in the digital and bar display section can be changed by pressing the
SELECT/BAR SELECT button.
【 B】If the auto warning mode is turned OFF in the setting of auto warning
When the auto dimmer mode is selected in the setting of the illumination control, the brightness of the display is
adjusted automatically depending on the outside light. The brightness levels can be selected from three stages by
pressing the DIM(ENTER) button in the Real Mode or the Peak Mode. When the manual dimmer mode is selected, the
brightness of the display is fixed. The brightness can be selected from five stages by pressing the DIM(ENTER) button.
Pressing the WARN SET button of the Defi-Link Control Unit II(or pressing the SELECT button of the Defi-Link Control
Unit) will bring up the Warning Set Mode. To set the warning value, please refer to the operations manual of the Defi-Link
Control Unit II(or the Defi-Link Control Unit).
NOTE: When connected to the Defi-Link System, the PEAK button of the D.C.Unit is unavailable.
NOTE: The boost and intake manifold pressure are not displayed in the Real Mode.
Manual dimmer mode
Auto dimmer mode
M-５ M-４ M-３ M-２ M-１
A-L３ A-L２ A-L１
④ Special Display Mode ④ Special Display Mode
⑤ Warning Set Mode ⑤ Warning Set Mode
Oil Temp. Engine Speed(tacho warning2)
※ Examples of display
Boost
Bright
B
rig
ht
D
is
pl
ay
Outside
Dark
D
ar
k
A-L3
M-5
M-4
M-3
M-2 M-1
A-L2
A-L1
Bar Display
Section
Hold
OR
During Rec Mode During driving
During driving
OR
During Play Mode
W/ Linking W/ Linking
W/O Linking W/O Linking
Common Common W/ Linking W/ Linking W/O Linking W/O Linking
W/ Linking W/ Linking
If Special Display Mode is set at 1 or 2, the special display will start when the vehicle speed
continues 0km/h or 0MPH for more than 10 seconds in the Real Mode. In this mode, the engine
speed or the segment animation is played. When the speed gets to more than 0km/h or 0MPH
or when any button of the D.C.Unit is pressed, the display will return to the Real Mode.
