Parts List

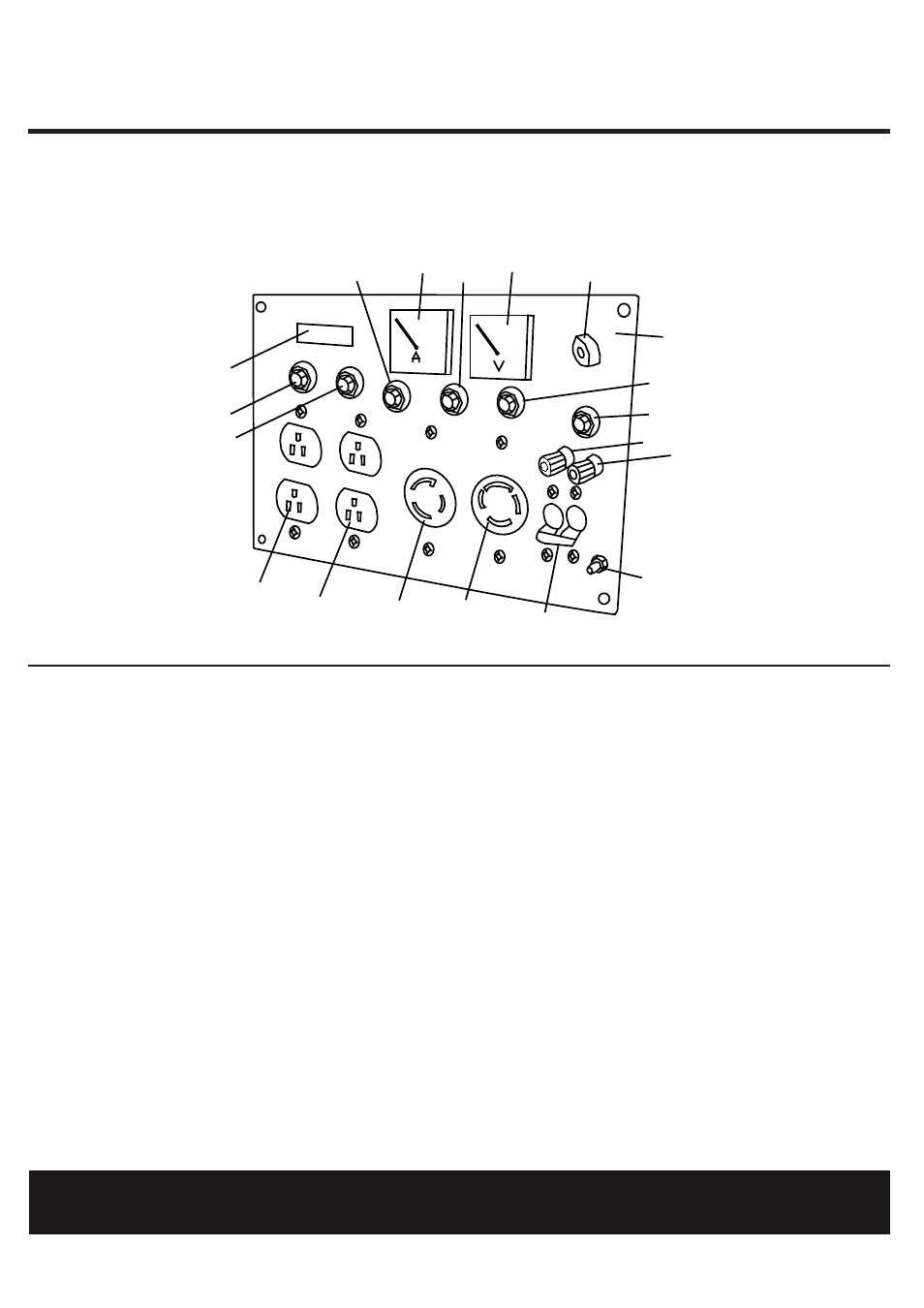

Control Box Assy
Q
APA Part No. Description Part. No
SP-GG1000E-Q-01-JD CONTROL PANEL COMP. JD8000E-E-01
SP-GG1000E-Q-02-JD ENGINE SWITCH ASSY. JD6500BST-E-02
SP-GG1000E-Q-03-JD DC 12V OUTPUT JD6500BST-E-03
SP-GG1000E-Q-04-JD VOLTMETER ASSY. JD6500BST-E-04
SP-GG1000E-Q-05-JD 120V RECEPTACLE(Ru-22) JD6500BST-E-05
SP-GG1000E-Q-06-JD CIRCUIT BREAKER 20A JD8000E-E-06
SP-GG1000E-Q-07-JD 120V RECEPTACLE(L5-30) JD6500BST-E-07
SP-GG1000E-Q-08-JD 240V RECEPTACLE(L14-30) JD6500BST-E-08
SP-GG1000E-Q-09-JD EARTH TERMINAL SCREW JD6500BST-E-09
SP-GG1000E-Q-10-JD HOUR METER JD8000E-E-10
SP-GG1000E-Q-11-JD CIRCUIT PROTECTOR 20A JD6500BST-E-11
SP-GG1000E-Q-12-JD CIRCUIT BREAKER 10A JD6500BST-E-12
SP-GG1000E-Q-13-JD CIRCUIT PROTECTOR 30A JD8000E-E-13
SP-GG1000E-Q-14-JD AMPEREMETER JD8000E-E-14
5
11
13
13
13
12
14
3
2
3
4
11
8 7
5
6
9
1
10
