Compressor (cont’d)
COMPRESSOR CONTROLS
Pressure switch: This switch turns on the compressor. It allows the compressor to
start up orshut down automatically, without warning, depending upon air demand.
Pressure Release Valve: If the pressure switch does not shut down the motor when
pressure reaches the preset level, this valve will pop open automatically to prevent
over pressurization. To operate manually, pull the ring on the valve to relieve air
pressure in the tank.
Air Pressure Gauge: This gauge measures the pressure level of the air stored in
the tank. It is not adjustable by the operator, and does not indicate line pressure.
Air Pressure Regulator: This air pressure regulator enables you to adjust line
pressure to the tool you are using.

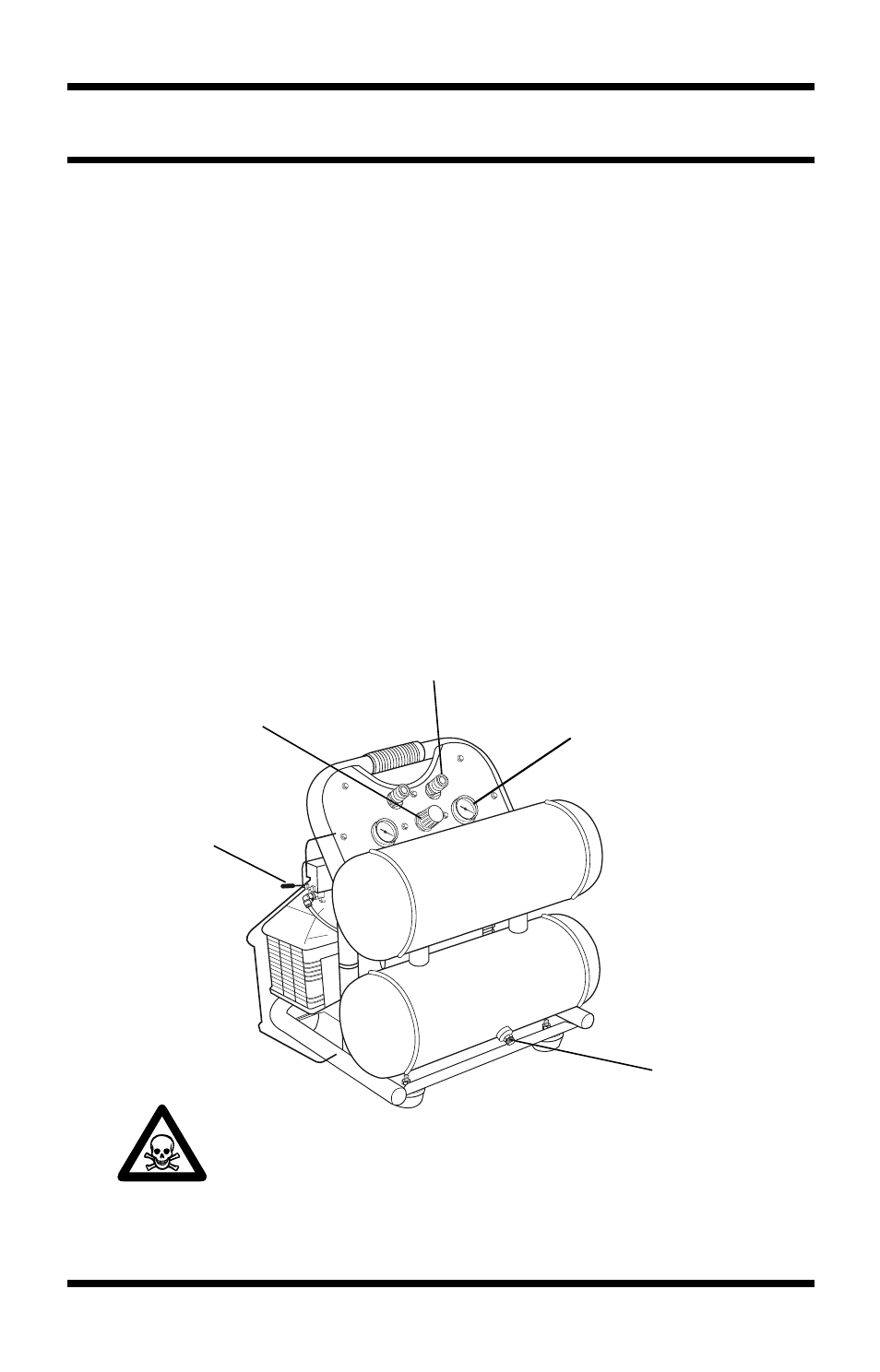

Pressure Switch
Air Pressure Regulator
Air Pressure Gauge
Quick-Connect Outlets
WARNING! NEVER EXCEED THE MAXIMUM WORKING
PRESSURE OF THE TOOL. TURN THE KNOB CLOCKWISE TO INCREASE
PRESSURE, AND COUNTERCLOCKWISE TO DECREASE PRESSURE.
Pressure/Moisture
Release
Valve
