14.

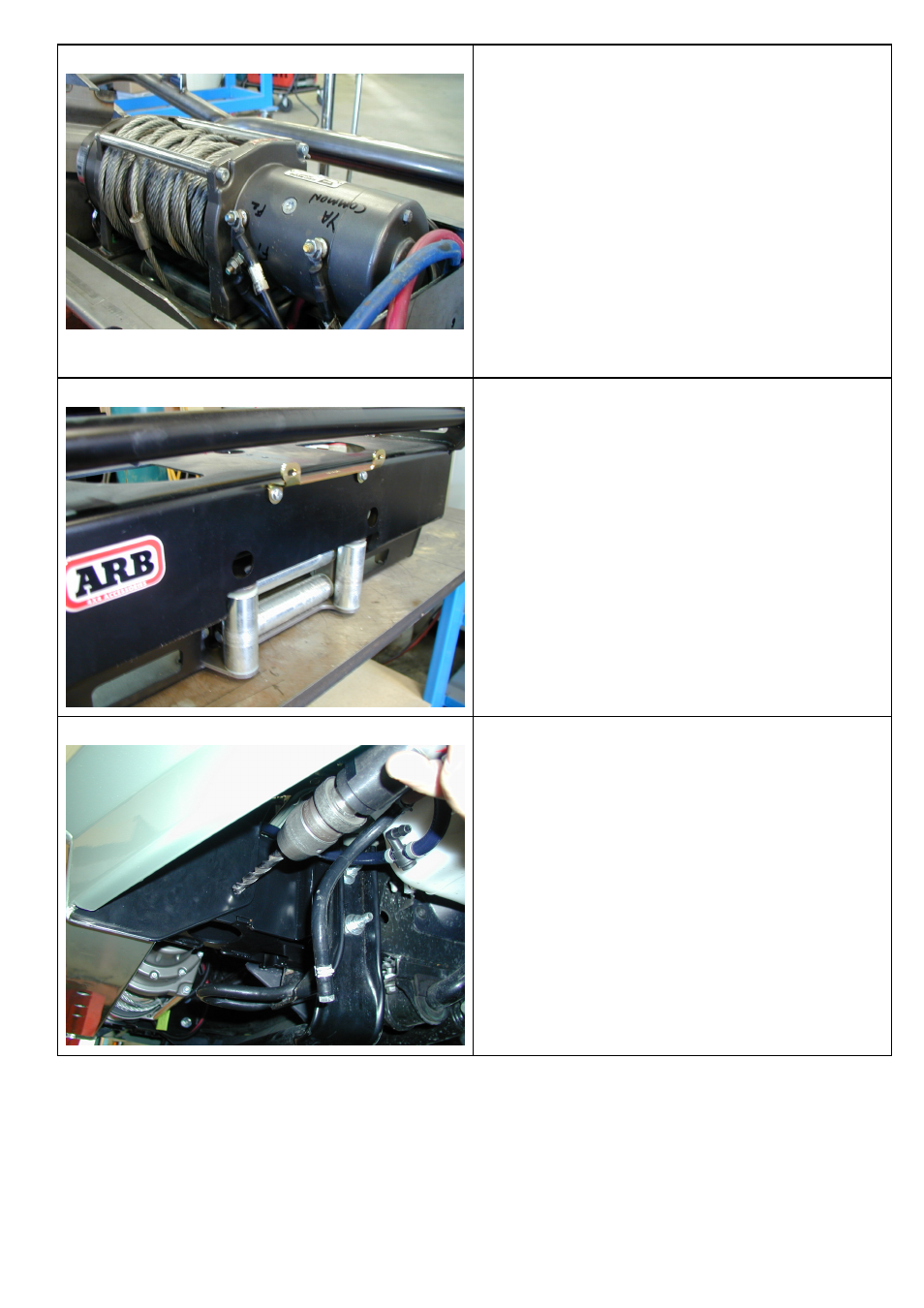

14 With the roller fair lead previously in position , lift
the winch into position and bolt into place using the
3/8” hardware supplied with the winch , bolt securely
in place .
NOTE :- the gear box is on the left hand side . The
winch cable spools from the bottom of the winch
drum .
Wire the winch as per the winch instructions . Using
the cable ties , tie the wiring back to the rear edge of
the bull bar using the holes in the flange . Ensure the
wiring is clear of the winch drum & cable etc and
does not rub on any hot or moving parts or sharp
edges . Failure to do so could result in damage to
the electrical system .
15.
15 Attached the number plate directly to the bull bar
front face using the M6 hardware supplied .
If the bull bar is fitted with a winch use the number
plate bracket supplied and fit to the bull bar
as shown .
16.
16 With assistance lift the bull bar into position and slide
it over the two impact absorbers . Once in position
bolt the bull bar in the 8 places using the M10 bolts
& hardware supplied , finger tight only at this stage .
Adjust the bull bar on the vehicle until a uniform gap
is achieved to the grill & headlamp and guards .Once
happy with the position of the bull bar tighten all of
the bolts .
The bull bar is then drilled and pined in its final
position using the M10 hardware supplied as shown
in the attached photo .
