3 Installing the Air Locker

16


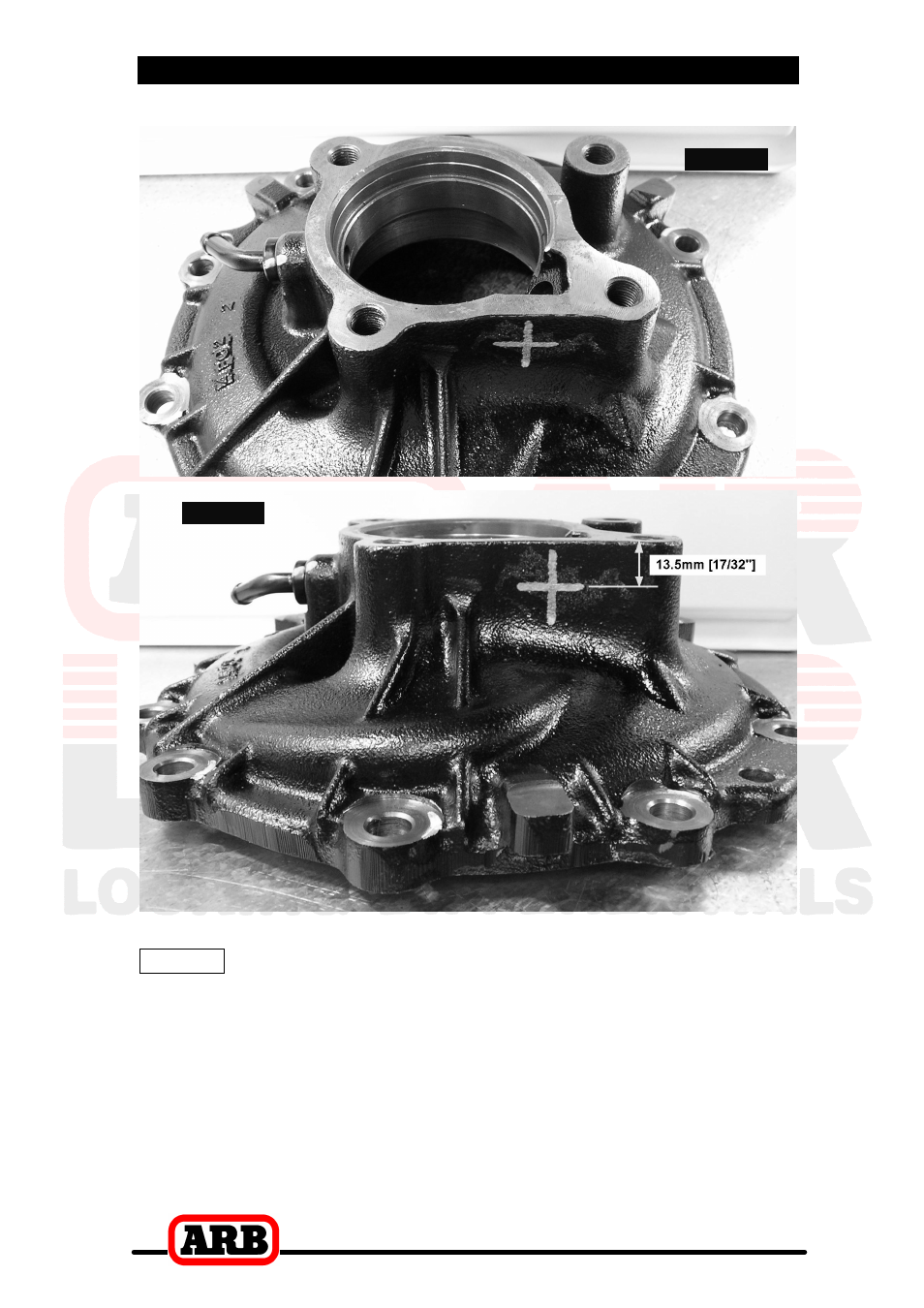

Figure 7.

Figure 8.

NOTE : To best determine the correct vertical position of the

drilled hole, measure down from the machined face
(shown at the top of the picture in Figure 8.) a
distance of 13.5mm [17/32”] and mark the horizontal
line which the hole is centered on. Then refer to
Figure 9. for the correct position on that line to start
drilling.
