3 Installing the Air Locker

Assemble the new bearing cup and ARB master shim (supplied

with your Air Locker kit) onto the right-hand side of the Air Locker
(as shown in Fig. 7.) and measure the total distance ‘C’.

NOTE :

The shim pack ‘B’ should not be installed at this time.

NOTE :

The OE master shim (if present) should not be
included in measurement ‘C’.

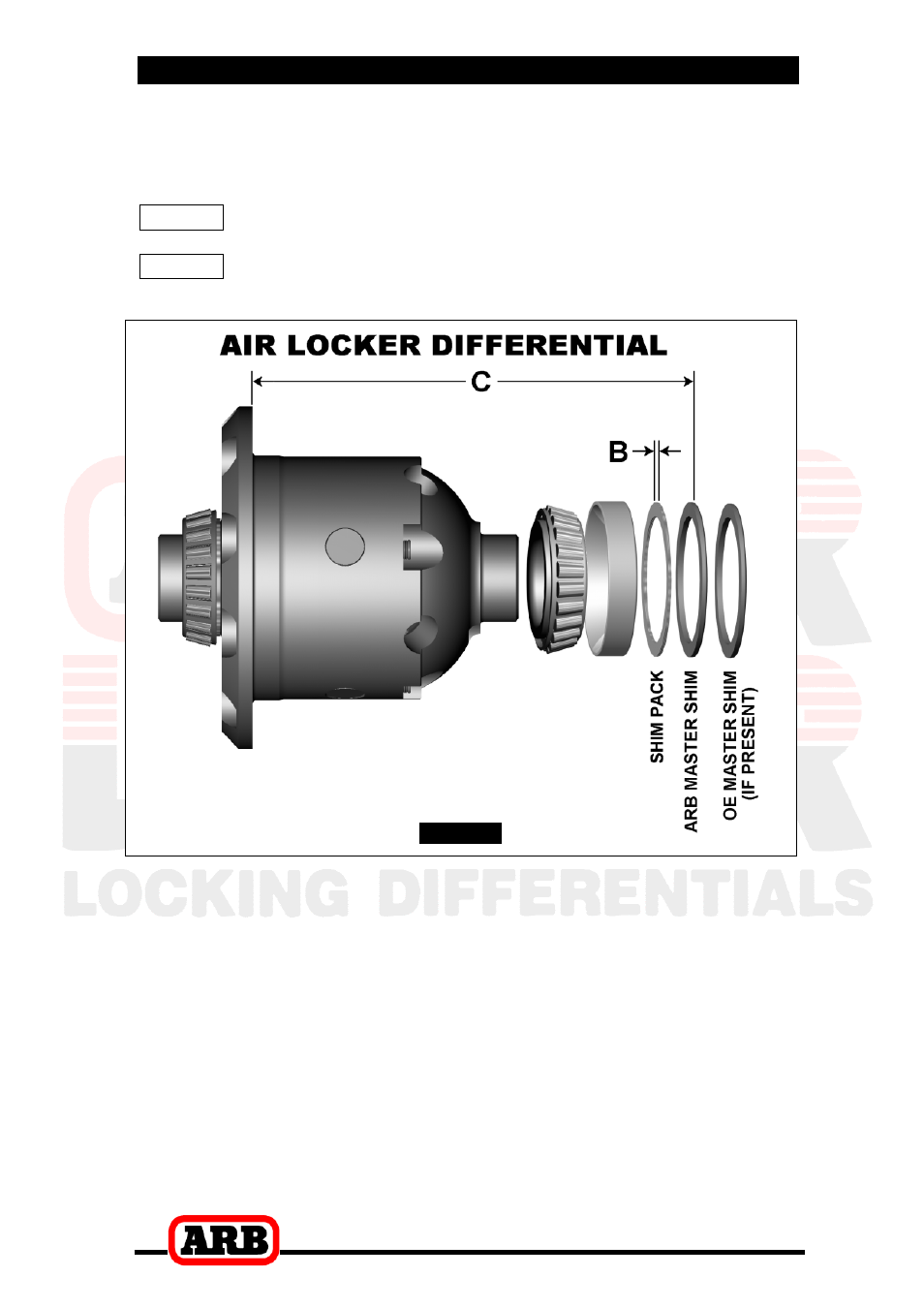

Figure 7.

Record this measurement as ‘C’.
