8
How to Install Your SOHO KVM Switch
Connecting Your Computers
Step 1
Make sure all your computers are powered off.
Step 2
Using Belkin SOHO KVM Cables (Belkin part number F1D9201-XX), connect one
end of the DVI cable to your computer’s DVI monitor port and the other end to the
monitor port on the SOHO KVM Switch labeled “PC 1”. See
Fig. 2.
Step 3
Connect one end of the USB cable to your computer’s USB port and the other end
to the USB port on the SOHO KVM Switch labeled “USB 01”. See
Fig. 2.
Step 4
Connect one end of the audio cable to the “Speaker Out” jack on your sound card
or computer, and the other end to the “audio” jack on your SOHO KVM Switch
below “PC 1” (optional). See
Fig. 2.
DC 5V, 2.5A audio mic
audio mic audio mic audio mic audio mic Device B Device A
Console
USB 04 USB 03 USB 02 USB 01
PC 4 PC 3 PC 2 PC 1

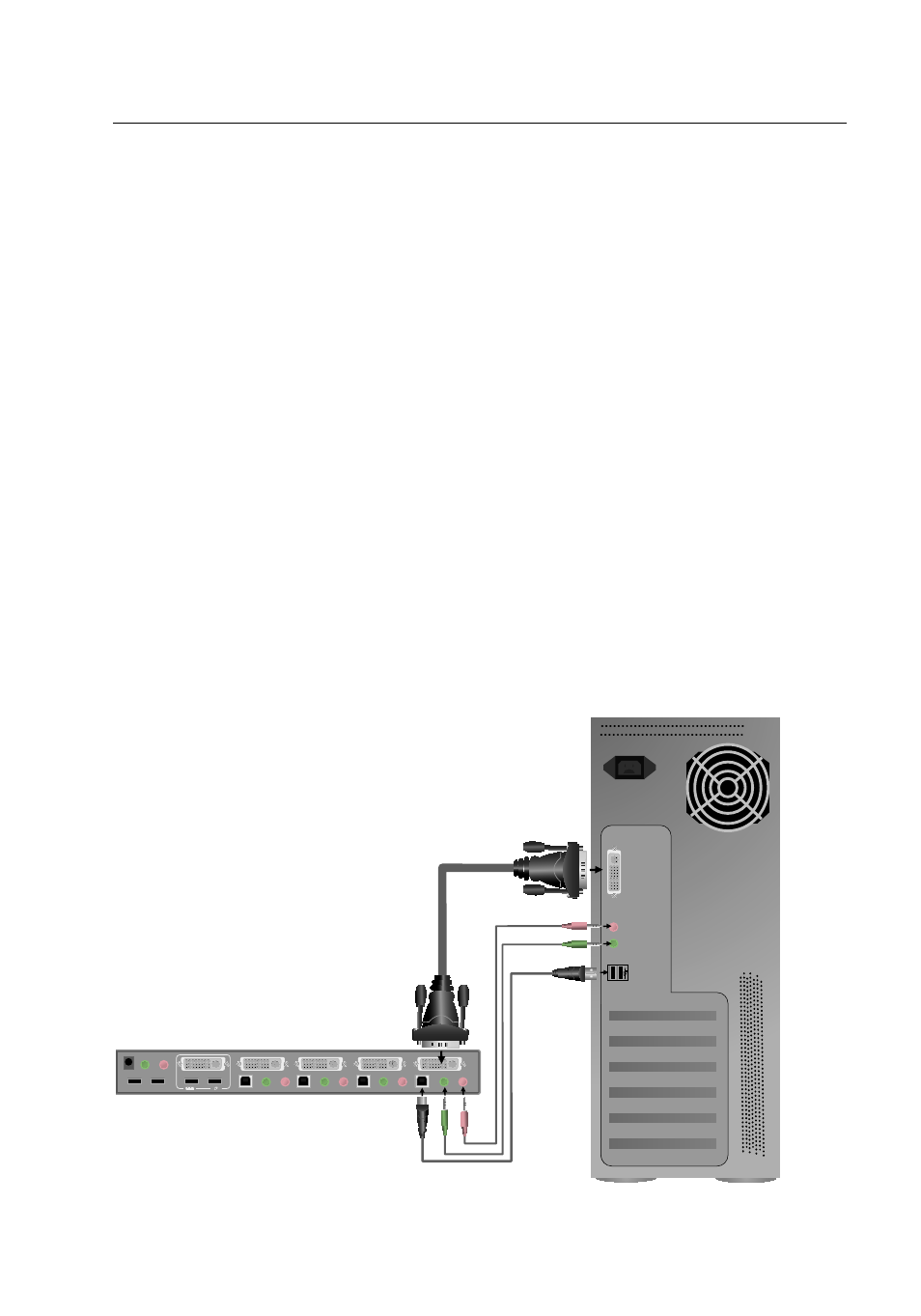

Fig. 2
