Section 5 - Attachments
5-12
31200169
Before S/N 0160037689
This installation procedure is designed for one-person operation. Prior to exiting cab,
perform “Shut-Down Procedure” on page 4-4.

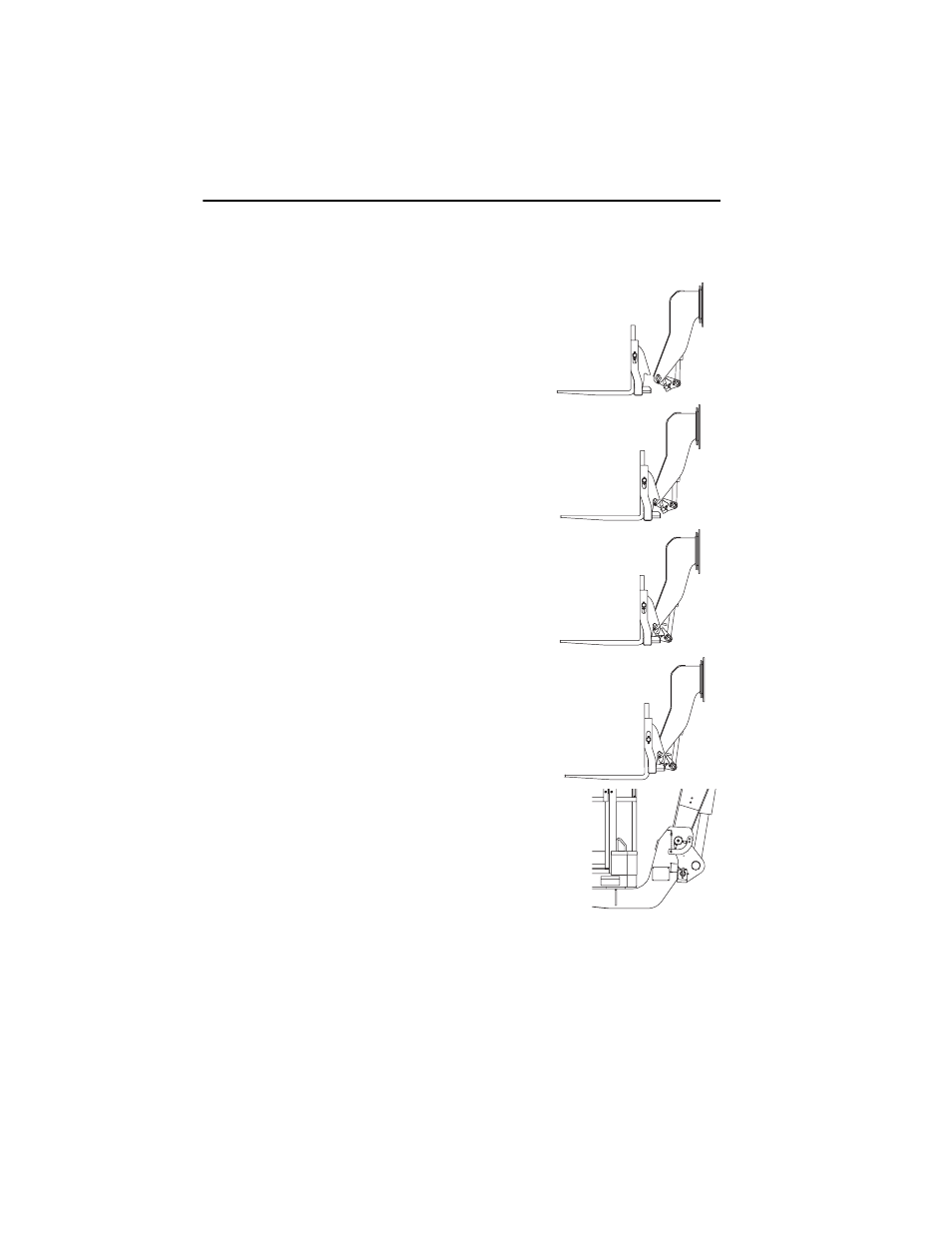

1. Tilt quick switch back to provide clearance. Check
to be sure lock pin is secured in out position with
retainer pin.
2. Align attachment pin with recess in attachment.
Raise boom slightly to engage attachment pin in
recess.
3. Tilt quick switch forward to engage attachment.
4. Remove retainer pin and slide lock pin in fully.
Secure lock pin in locked position using retainer
pin.
5. If equipped, swing attachment saddles down and
pin in place.
6. If equipped, connect auxiliary hydraulic hoses. See “Hydraulic Operated
7. If equipped, connect auxiliary electric harness.
OX0690
OX0700
OX0710
OX0720
OY0601
