Section 5 - Attachments
5-34 31200169
Truss Boom
Description P/N
Truss Boom, 10 ft (Before S/N 0160037689) ................90455011
Truss Boom, 10 ft w/winch (Before S/N 0160037689) ..90455012
Truss Boom, 10 ft w/winch reeving
(Before S/N 0160037689) .............................................90555018
Truss Boom, 12 ft (S/N 0160037689 & After) ...........1001099902
Truss Boom, 12 ft w/winch
(S/N 0160037689 & After) ........................................1001099351
Truss Boom, 15 ft (S/N 0160037689 & After) ...........1001099901
Use Appropriate Truss Boom Attachment Capacity Chart
To determine maximum capacity, refer to “Telehandler/Attachment/Fork Capacity” on
page 5-3.
Suspend loads in accordance with requirements set forth in Section
1 - General Safety Practices.

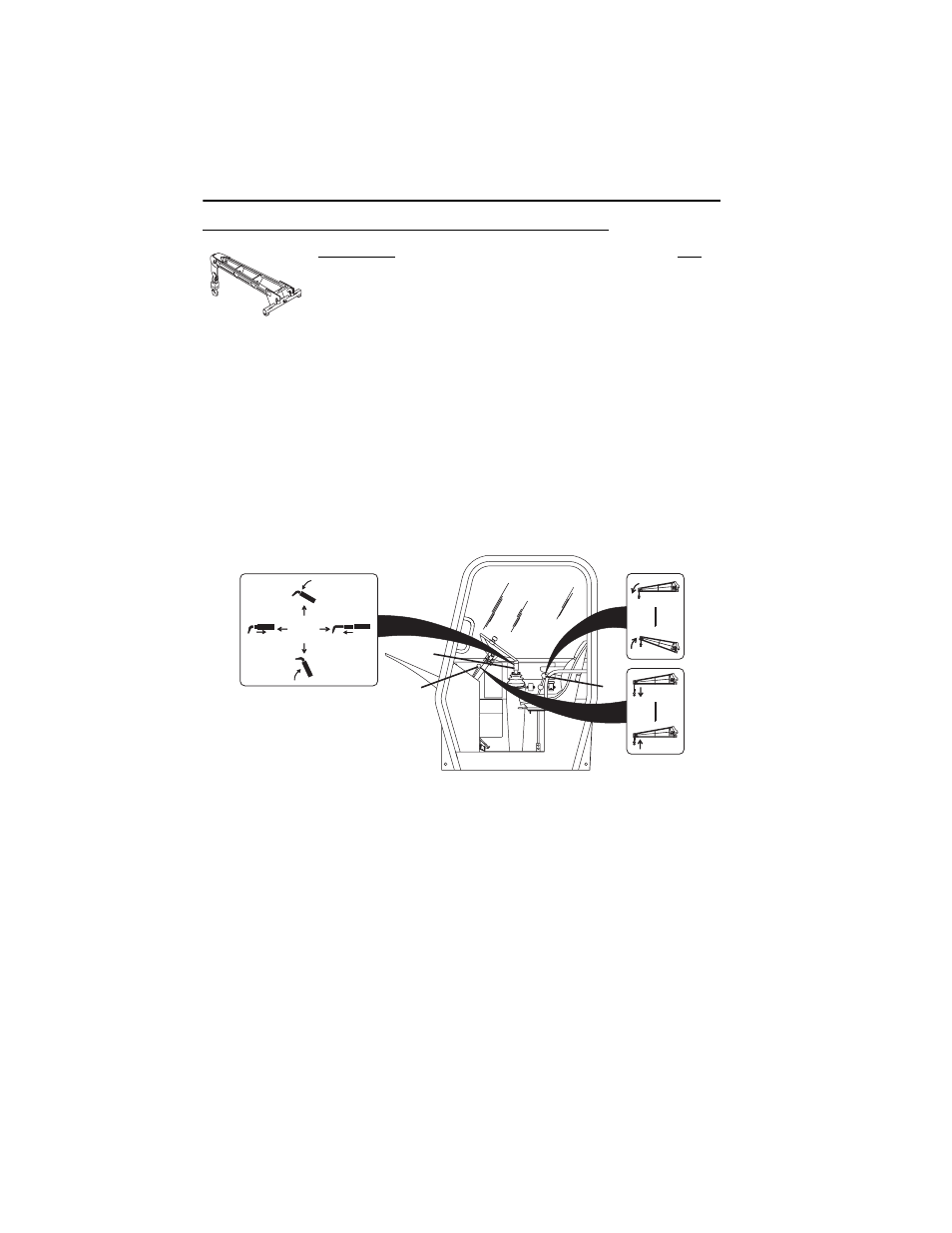

The joystick (1) controls lift/lower and extend/retract movement of the boom.
The tilt lever (2) controls truss boom tilt.
• Move lever back to tilt up.
• Move lever forward to tilt down.
Winch Control (if equipped):
The auxiliary hydraulic lever (3) controls the truss boom mounted winch.
• Move lever up to lower cable.
• Move lever down to raise cable.
OY0570
OX0271
2-FRONT 2-FRONT
3 2
1
