Section 7 - Lubrication and Maintenance
7-8 31200169
7.5 OPERATOR MAINTENANCE INSTRUCTIONS
Fuel System
A. Fuel Level Check

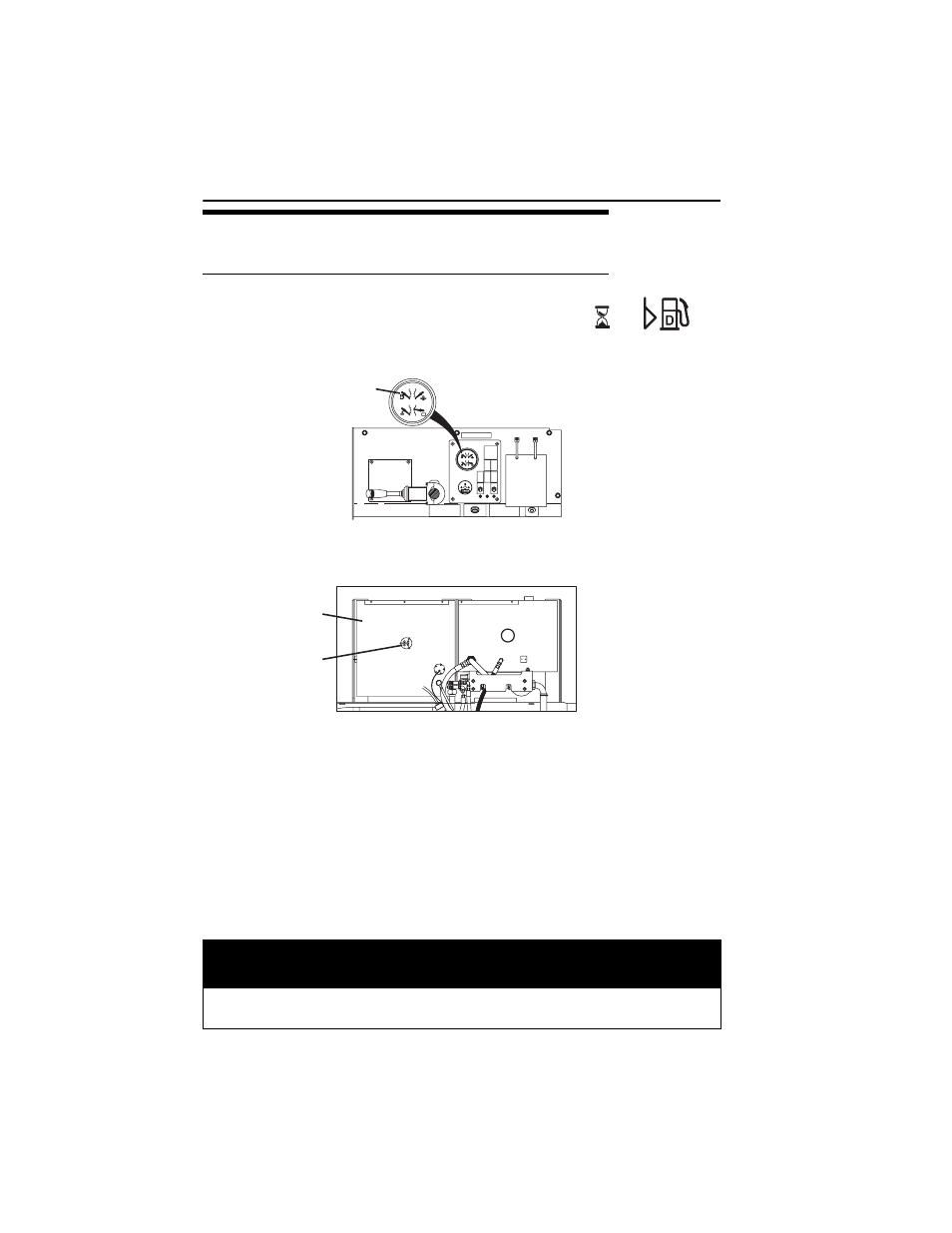

1. Check fuel gauge (1) located on instrument panel in cab.
2. If fuel is low, proceed to fuel source and perform “Shut-Down Procedure” on
page 4-4.
3. Locate fuel tank (2), turn fuel tank cap (3) and remove from filler neck.
4. Add diesel fuel as needed.
5. Replace and secure fuel tank cap.
Note: Replenish diesel fuel at end of each work shift to minimize condensation.
NOTICE
EQUIPMENT DAMAGE. Do not allow machine to run out of fuel during operation.
See Engine Operation & Maintenance Manual for details prior to servicing.
10
OW0970 OW0990
OX0212
2
3
ALT 4X2 OFF 0 0 0 0 0 0
QUARTZ DRIVE 4X4 ON
240
100
F
E
80
0
16
10
TEMP
FUEL OIL
VOLTS
- +
PARK BRAKE
240
100
F
E
80
0
16
10
TEMP
FUEL OIL
VOLTS
- +
1
VIEW OF DASH
VIEW OF FUEL TANK
FROM TOP OF MACHINE
