Section 5 - Attachments
5-40 31200169

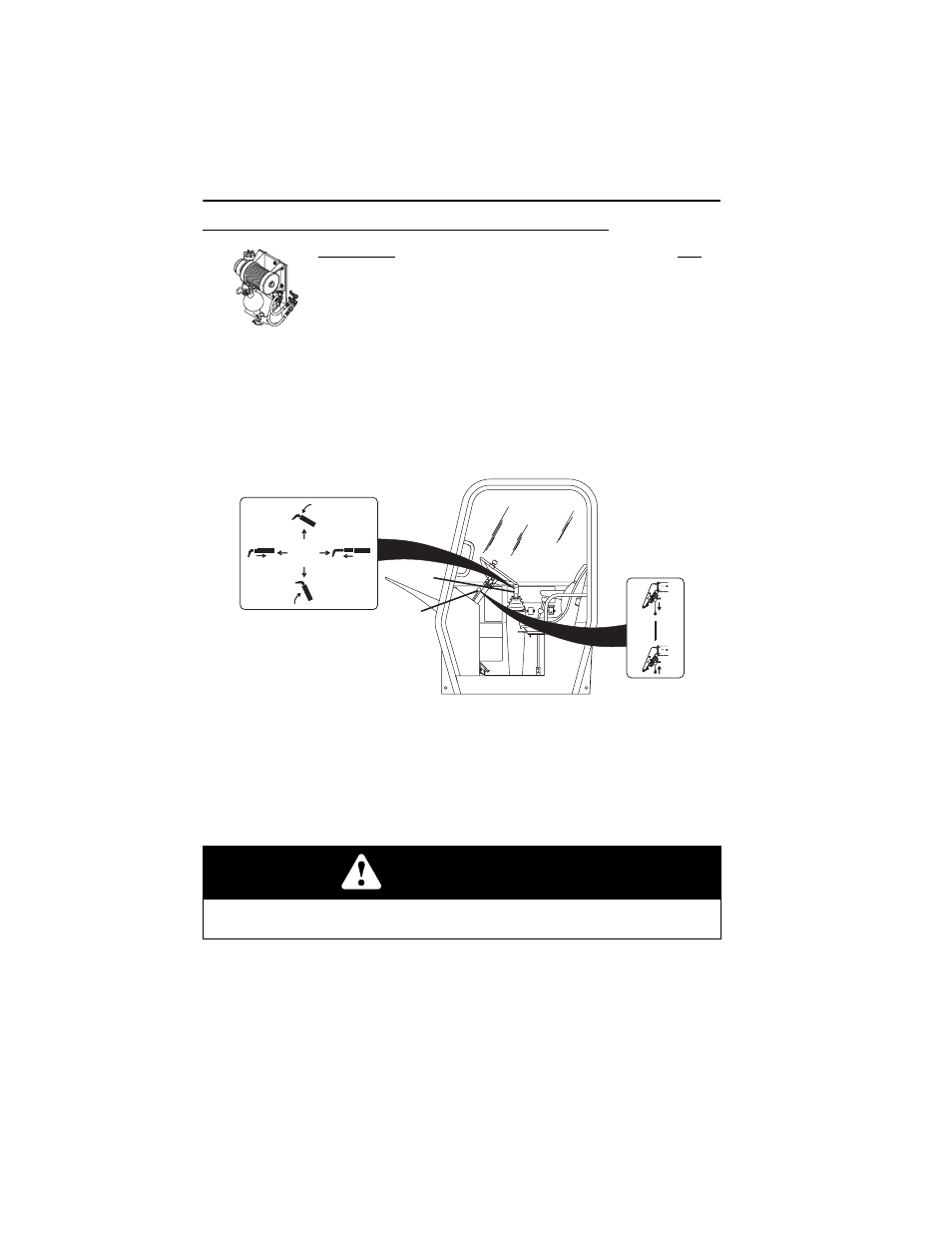

Boom Head-Mounted Winch (Before S/N 0160037689)
Description P/N
Winch (Before S/N 0160027771) ..................................91355004
Winch (S/N 0160027771 thru 0160037689) .................91535026
Use Carriage Attachment Capacity Chart
To determine maximum capacity, refer to “Telehandler/Attachment/Fork Capacity” on
page 5-3.
Suspend loads in accordance with requirements set forth in Section
1 - General Safety Practices.
The joystick (1) controls lift/lower and extend/retract movement of the boom.
The auxiliary hydraulic lever (3) controls the winch.
• Move lever up to lower cable.
• Move lever down to raise cable.
WARNING
CRUSH HAZARD. Maintain a minimum of three wraps of wire rope on the cable
drum at all times. Failure to comply could cause object or load to fall.
OY0650
OX0281
2-FRONT 2-FRONT
3
1
