Section 5 - Attachments
5-26 31200172
Mast Carriage w/Swing and Side Shift (Before S/N 0160037689)
Description P/N
6 ft Mast Carriage, 100 ° Swing, 48 in Fork................... 90455047
Fork, Pallet 1.75x4x48 in .............................................. 90553008
6 ft Mast Carriage, 100
° Swing, 60 in Fork................... 90455054
Fork, Pallet 2x6x60 in ................................................... 90453045
Use 6 ft Mast Carriage Attachment Capacity Chart
To determine maximum capacity, refer to “Telehandler/Attachment/Fork Capacity” on
page 5-3.

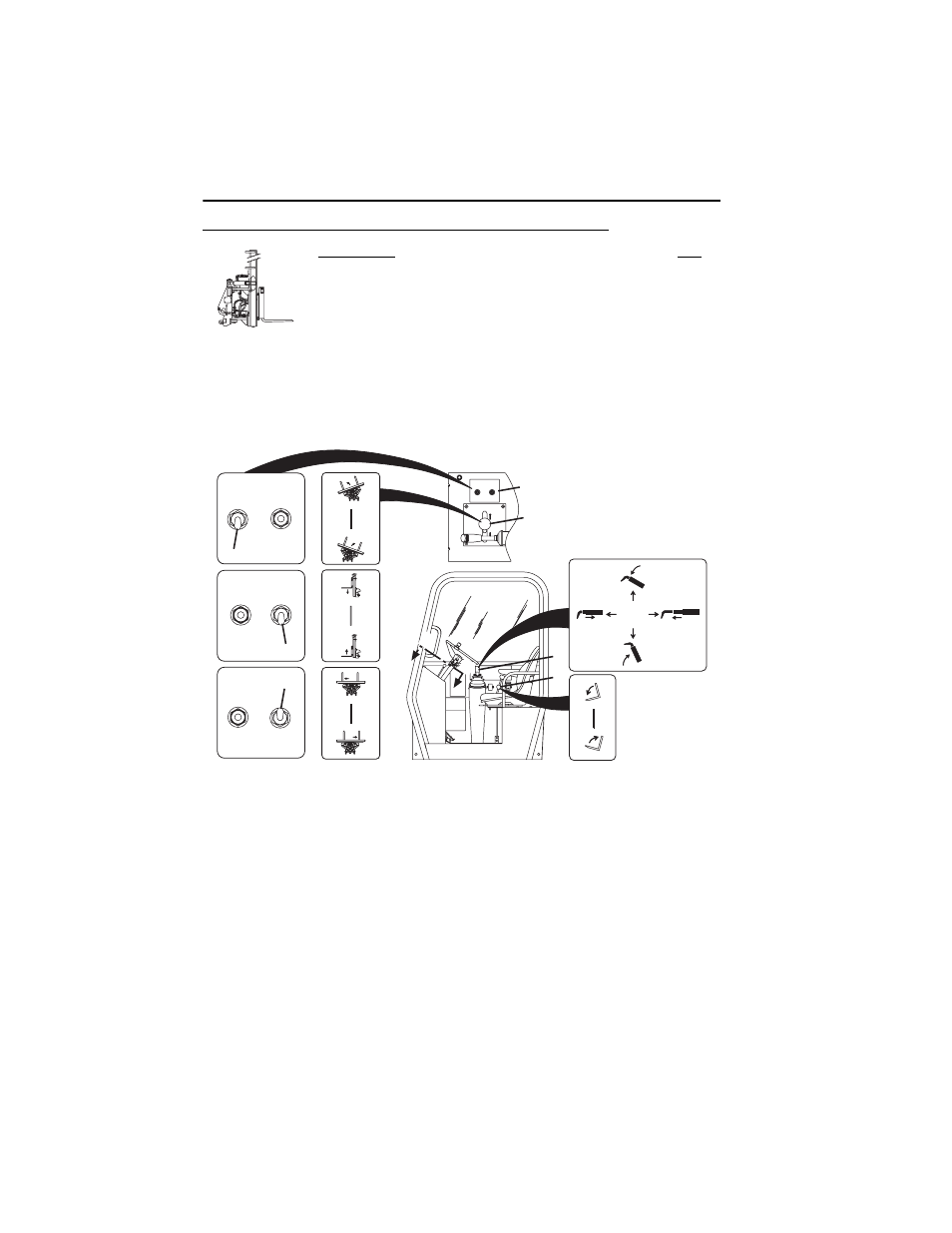

The joystick (1) controls lift/lower and extend/retract movement of the boom.
The tilt lever (2) controls the mast tilt.
• Move lever back to tilt up.
• Move lever forward to tilt down.
To Swing:
Pull Swing Switch (5) located on dash panel (4) to activate Swing function.
The auxiliary hydraulic lever (3) controls the carriage swing.
• Move lever up to swing left.
• Move lever down to swing right.
OY0590
W A RNING
OX0321
1
2
AUXILIARY ELECTRICS CONTROL
MAST
SIDE SHIFT
SWING ONLY ONE FUNCTION CAN BE ACTIVE AT A TIME 9112-3155 REV.A
9136-30
AUXILI HYDRA
AUXILIARY HYDRAULICS LEFT/DOWN
3
4
SWING MAST
SIDE SHIFT
6
+
SWING MAST
SIDE SHIFT
5
+
SWING MAST
SIDE SHIFT
7
+
VIEW A-A
A
A
