SYSTEM OPERATION

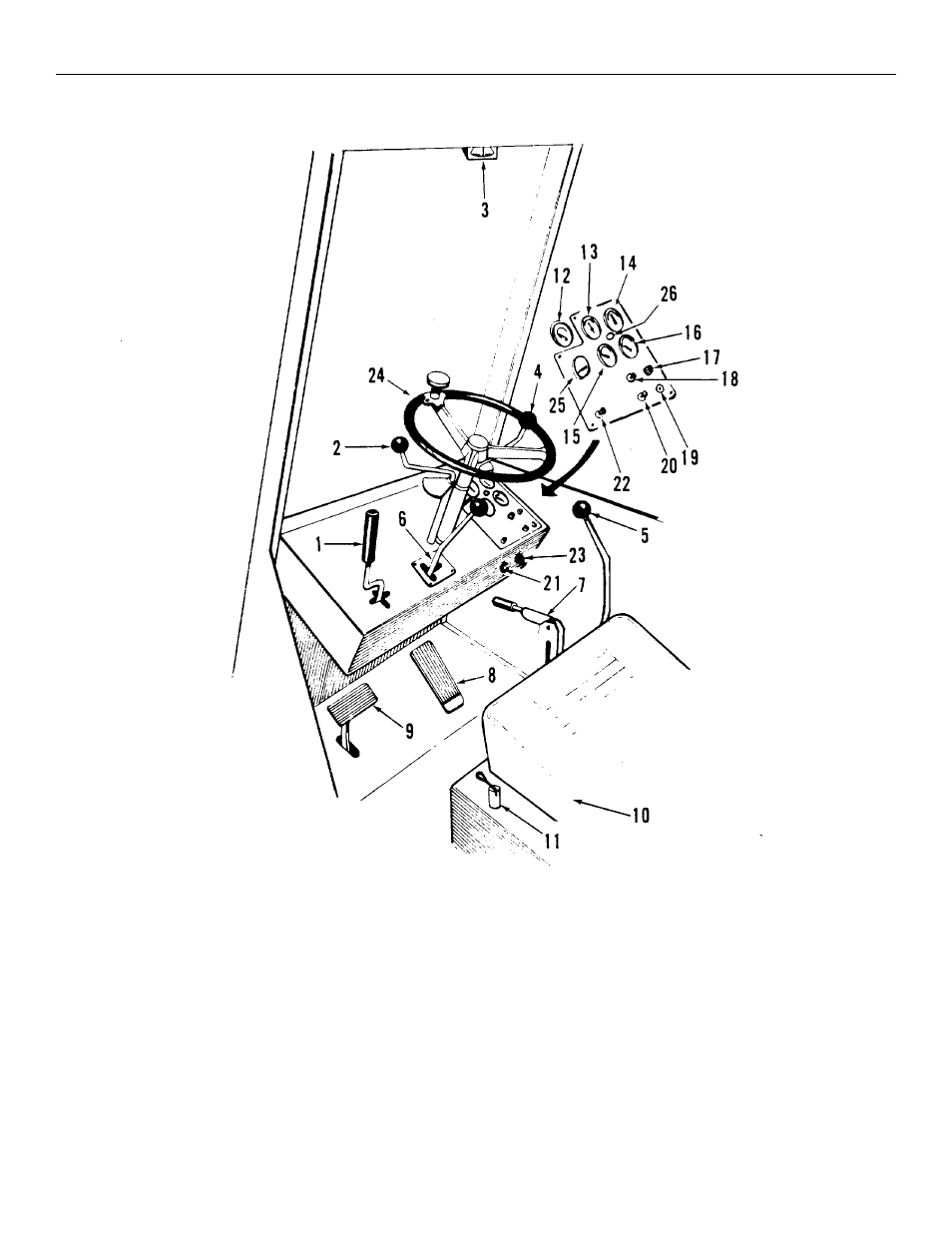

CAB CONTROLS & GAGES
1. CARRIAGE TILT & SWAY CONTROL LEVER
2. FORWARD-REVERSE LEVER
3. LEVEL INDICATOR
4. TRANSMISSION SPEED SELECTOR LEVER
5. BOOM CONTROL (Up-Down - In-Out)
6. AUXILIARY CONTROL LEVER (Option)
7. PARKING BRAKE LEVER
8. ACCELERATOR PEDAL
9. BRAKE-INCHING PEDAL
10. SEAT POSITION CONTROLS
11. MICO BRAKE LOCK LEVER
12. TRANSMISSION TEMPERATURE GAGE
13. AMMETER GAGE 14. FUEL GAGE
15. TEMPERATURE GAGE
16. OIL PRESSURE GAGE
17. HEATER FAN SWITCH (Option)
18. LIGHT SWITCH (Option)
19. HORN BUTTON
20. ROTATING BEACON SWITCH (Option)
21. IGNITION KEY
22. ETHER START KNOB (Option)
23. STARTER BUTTON
24. STEERING WHEEL
25. HOUR METER
26. BRAKE WARNING LIGHT (Low Pressure)
