Contact 1.800.762.1142 for assistance. Do not return to place of purchase.

page no .

3

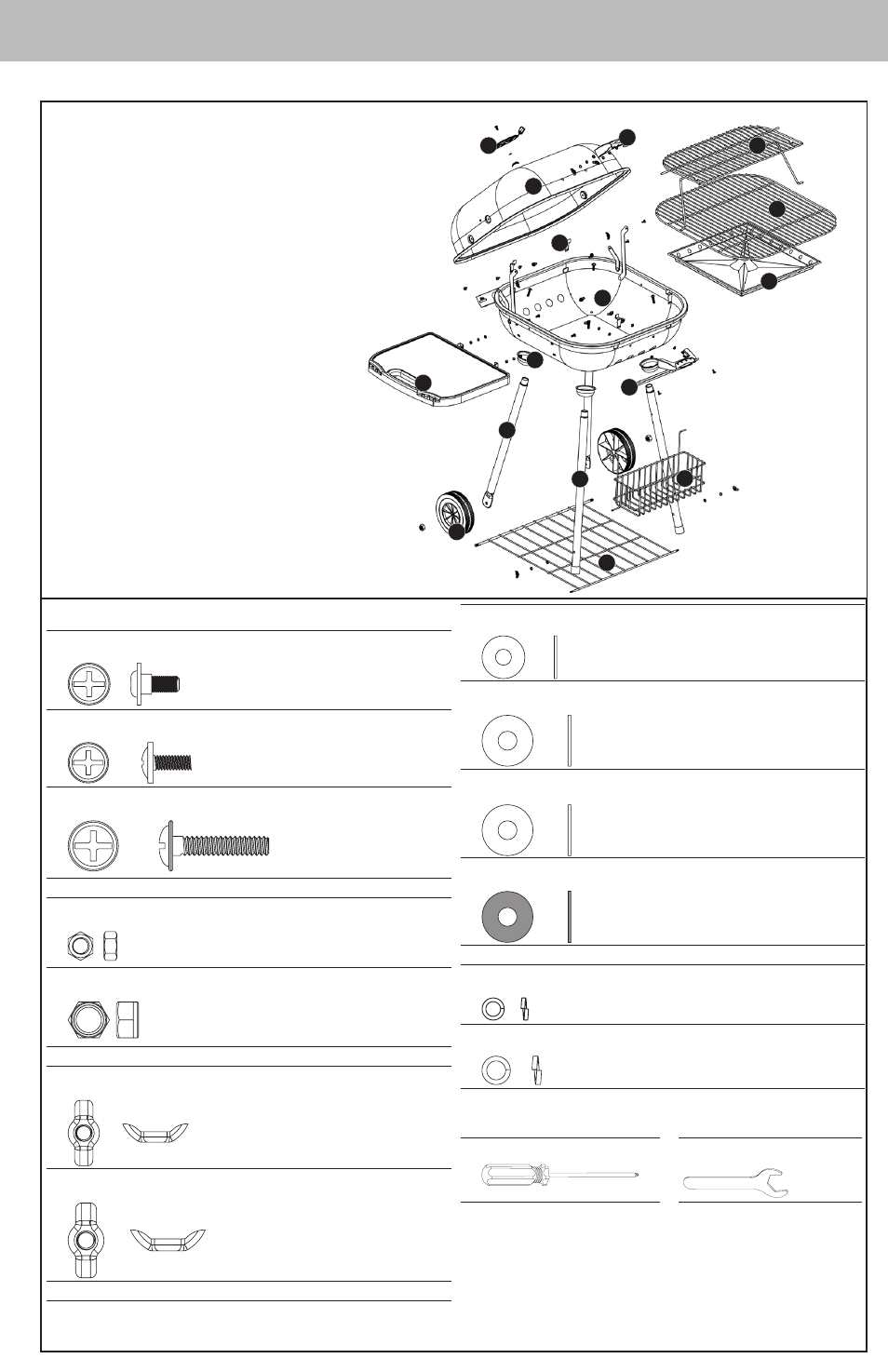

Hardware / Actual Size

A . Small Screw

8 pcs

M5x12 Zinc Plated Phillips Truss Head Screw

B . Medium Screw

3 pcs

M5x12 Zinc Plated Phillips Truss Head Screw

C . Large Screw

4 pcs

M6x30 Zinc Plated Phillips Truss Head Screw

D . Small Nut

2 pcs

M5 Zinc Plated Hext Nut

E . Large Nut

2 pcs

M8 Zinc Plated Hex Nut

F . Medium Wing Nut

9 pcs

M5 Zinc Plated Wing Nut

G . Large Wing Nut

6 pc

M6 Zinc Plated Wing Nut

H . Small Washer

2 pcs

ø5 Zinc Plated Washer

I . Medium Washer

6 pcs

ø6 Zinc Plated Washer

J . Large Washer

4 pcs

ø6 Zinc Plated Washer

K . Heat Resistant Washer

4 pcs

ø6 Black Heat Resistant Washer

L . Small Lock Washer

3 pcs

ø5 Zinc Plated Lock Washer

M . Large Lock Washer

4 pcs

ø6 Zinc Plated Lock Washer

Tools Included

N . Screwdriver*

1 pc

O . Wrench*

1 pc

* Not shown at actual size .

Exploded View

1 . Lid

2 . Bottom Bowl

3 . Front Leg (2)

4 . Wheel Leg (2)

5 . Cooking Grid

6 . Charcoal Pan

7 . Bottom Grid

8 . Lid Air Vent

9 . Front Basket

10 . Wheel (2)

11 . Leg Support Cup (4)

12 . Warming Rack

13 . Bottom Air Damper (2)

14 . Cooking Grid Support (4)

15 . Handle (2)

16 . Side Shelf

8

16

1

5

6

3

4

7

9

11

13

15

12

10

14

2
