B&C Speakers 15 HPL 76W User Manual
15 hpl 76w, Woofer, Specifications
Specifications
Nominal Diameter
380 mm (15 in)
Nominal Impedance
8
Ω
Minumum Impedance
7
Ω
Power Handling
(50-500 Hz)
Nominal
1
350 W
Continuous Program
2
700 W
Sensitivity (1W/1m)
3
97 dB
Frequency Range
40 – 2000 Hz
Voice Coil Diameter
76 mm (3 in)
Winding Material
Copper
Former Material
Fiber Glass
Winding Depth
18.5 mm (3/4 in)
Magnetic Gap Depth
10 mm (5/16 in)
Flux Density
1.15 T
Also available in 4
Ω, data upon request
Thiele & Small Parameters
4
Fs
38 Hz
Re
6.1
Ω
Qes
0.44
Qms
5.5
Qts
0.41
Vas
157 dm
3
(5.5 ft
3
)
Sd
855 cm
2
(132.5 in
2
)
η
0
1.9%
X max
± 6 mm
X Var
± 4.5 mm
Mms
114 g
Bl
19.4 T·m
Le
2 mH
Mounting and Shipping Information
Overall Diameter
394 mm (15.5 in)
Bolt Circle Diameter
374 mm (14.7 in)
Baffle Cutout Diameter
355 mm (14 in)
Depth
171 mm (6.7 in)
Flange and Gasket Thickness
12.5 mm (0.5 in)
Net weight
3.5 kg (7.7 lb)
Shipping Weight
4.9 kg (10.8 lb)
Shipping Box
450x450x200 mm
(17.7x17.7x7.9 in)
1
2 hours test made with continuous pink noise signal (6 dB crest factor) within
the specified frequency range. Power calculated on rated minimum impedance.
Loudspeaker mounted in 110 liters (3.9 cu.ft
3
) bass-reflex box, tuned at 45 Hz.
2
Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
3
Applied RMS Voltage is set to 2.83V for 8 ohms Nominal Impedance. Average
SPL from 200 to 2000 Hz.
4
Thiele-Small parameters are measured after a high level 20 Hz sine wave pre-
conditioning test.

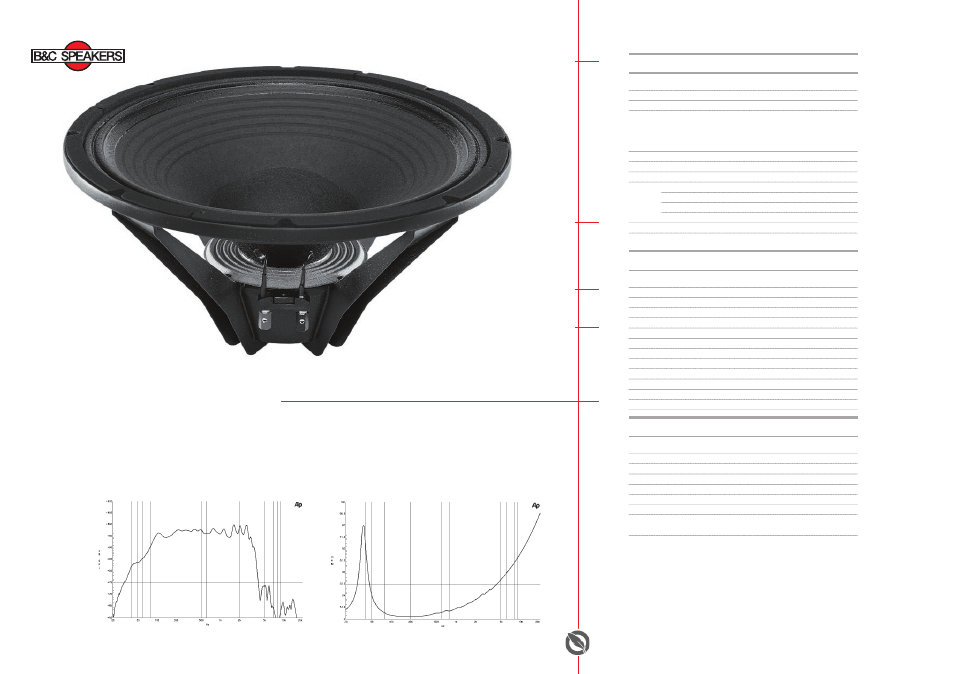

15 HPL 76W
|
Woofer
High efficiency 15" woofer using a FEA computer designed high
energy Neodymium magnet assembly, extremely lightweight (only
3.5 kg). The aluminium basket is designed to effectively dissipate
heat during demanding use at full power, reducing power
compression. A special 3" copper voice coil using proprietary high
temperature adhesives guarantee a very good LF dynamic range
with a very low distortion figure. Recommended for bass-reflex
subwoofer enclosures where power is limited to 700W.
