Blue Rhino GTL702W - Manual (Page 3)

Contact 1.800.762.1142 for assistance. Do not return to place of purchase.
page no.
3
Parts List
1 Finial
2 Top Cap
3 Insect Guard
4 Top Cap Assembly
5 Pilot Shield
6 Bottom Lid Assembly
7 Engine Assembly
8 Control Knob
9 Top Pole
10 Bottom Pole
11 Shroud Cover
12 Regulator/Hose Assembly
13 Shroud
14 Base
15 Weight Plate
Hardware
A
Screw
3/16 in. x 1/2 in. Black Nickel Plated Phillips
Truss Head
4 pcs
B
Bolt 5/32 in. x 1 1/5 in. Black Nickel Plated 3 pcs
C
Bolt 1/4 in. x 1 4/5 in. Nickel Plated Hex Head 4 pcs
D
Nut 1/4 in. Nickel Plated 8 pcs
E
Washer ø7 Nickel Plated 4 pcs
F
Lock Washer ø6 Nickel Plated 4 pcs
Tools Required for Assembly (Not Included)
#2 Phillips Head Screwdriver
7/16” Wrench
1

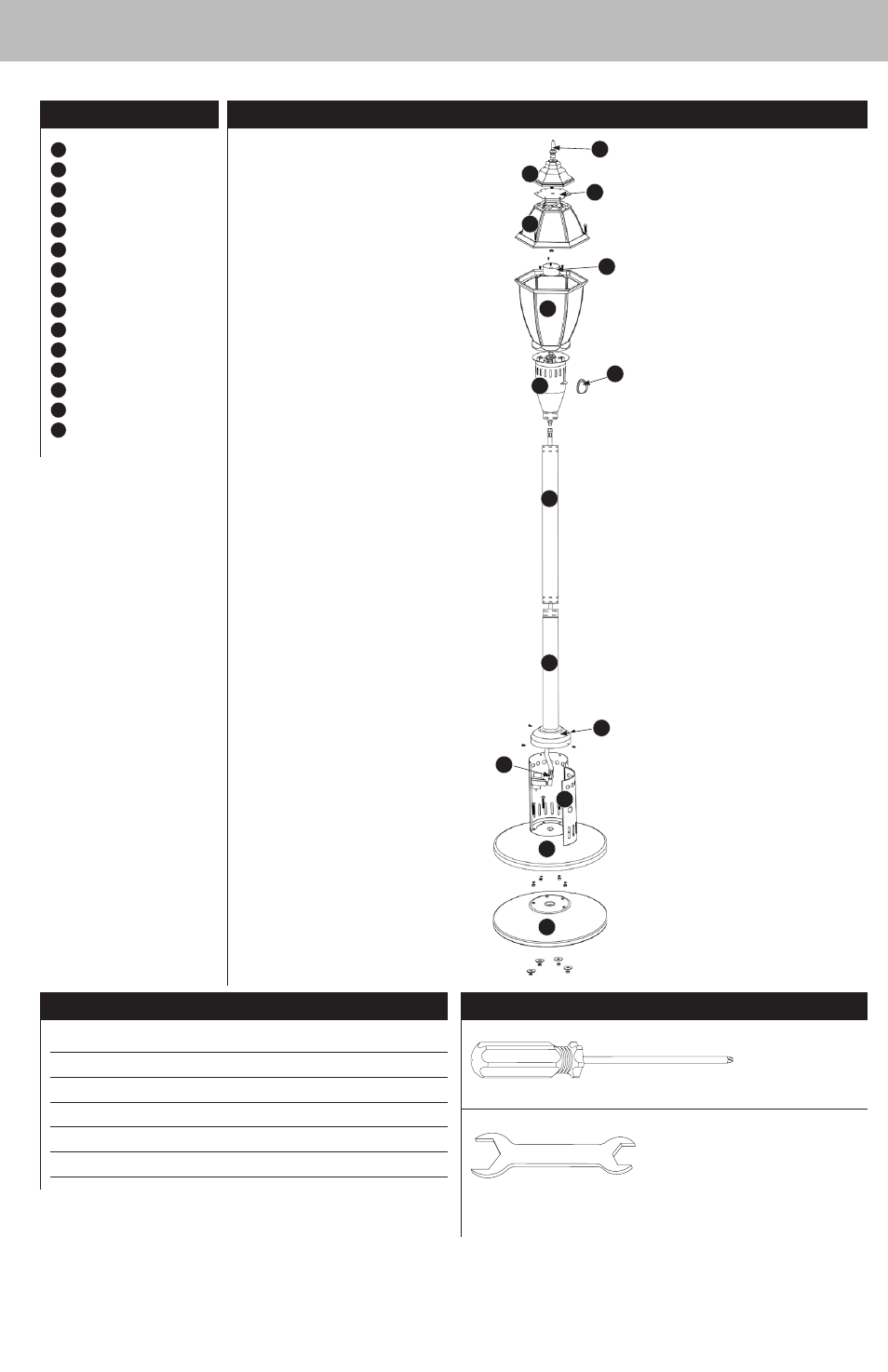

Exploded View
2
3
4
5
6
7
9
10
11
12
13
14
15
8
