Billion BiPAC SHDSL/SHDSL.bis (VPN) Firewall Bridge/ Router
Chapter 4: Configuration
107
IPSec (IP Security Protocol) (BiPAC 8500/ 8501/ 8520 Only)

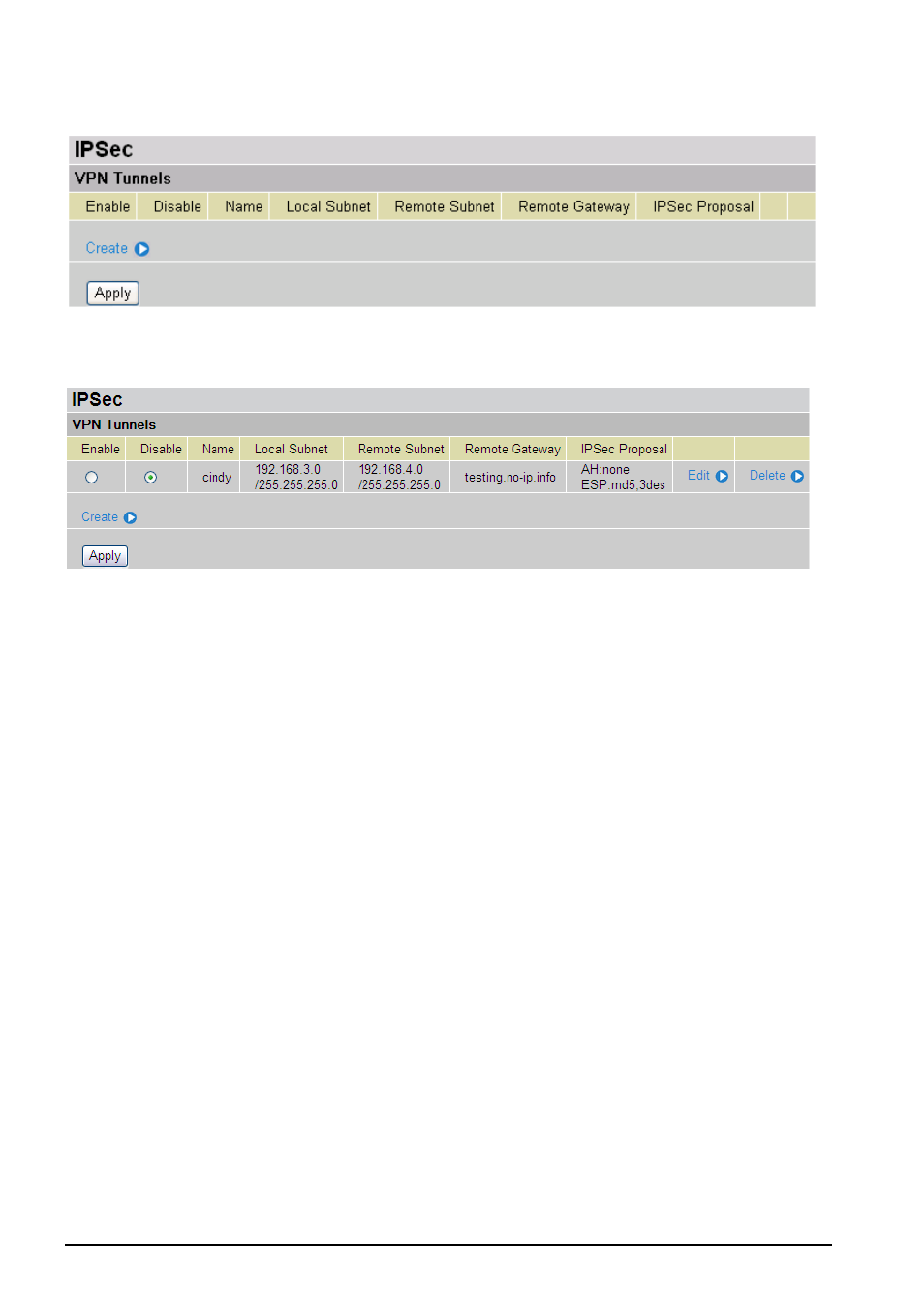

Click Create to create a new IPSec VPN connection account.
After you have created the IPSec connection, account information will be displayed. (See
example above).
• Enable / Disable: This function activates or deactivates the IPSec connection. To
interrupt the tunnel, check the Disable radio button and click the Apply button to
deactivate the connection.
• Name: This is the user-defined name of the connection.
• Local Subnet: Displays IP address and subnet of the local network.
• Remote Subnet: Displays IP address and subnet of the remote network.
• Remote Gateway: This is the IP address or the Domain Name of the remote VPN
device that is connected and used to establishe a VPN tunnel.
• IPSec Proposal: This is the selected IPSec security method.
