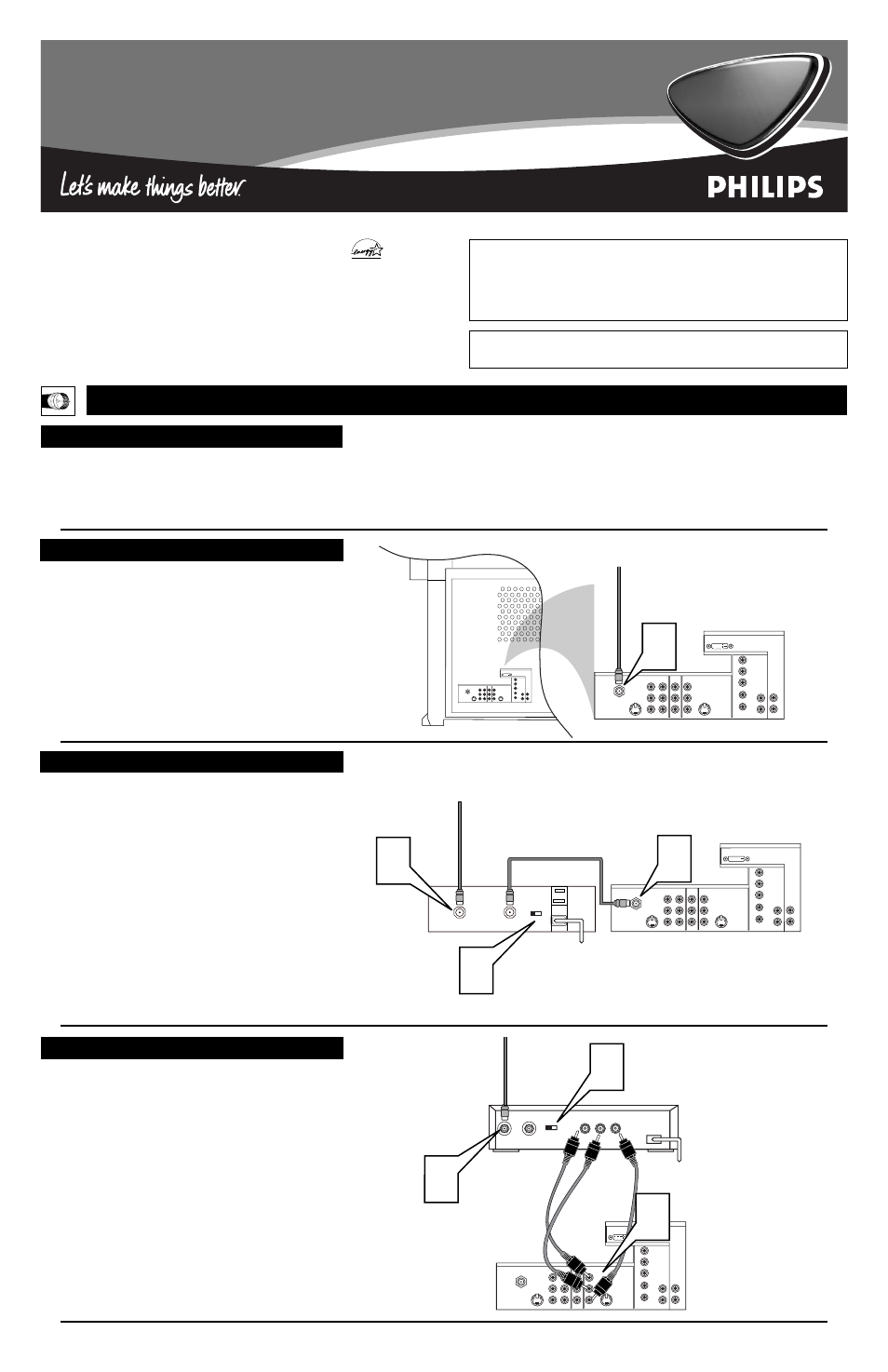

Philips 51PW9303 - Manual

3135 035 21351
Rear-projection
HDTV Monitor
Rear-projection
HDTV Monitor
Quick Use and Setup Guide Quick Use and Setup Guide
VIDEO
S-VIDEO L Pb
Pr
VIDEO
S-VIDEO L
AUDIO
L
R
AUDIO
L
R
G/Y
R/Pr
B/Pb
V
H
SYNC L
R
AUDIO
HD INPUT-AV 4
INPUT-AV 2 OUTPUT INPUT-AV 1 ANTENNA IN 75Ω
Y
L
R
AUDIO
HD INPUT-AV 5
DVI
1
VIDEO S-VIDEO L Pb
Pr
VIDEO S-VIDEO L
AUDIO L
R AUDIO L
R
G/Y
R/Pr
B/Pb
V
H SYNC L
R AUDIO
HD INPUT-AV 4
INPUT-AV 2 OUTPUT INPUT-AV 1 ANTENNA IN 75Ω Y
L
R AUDIO
HD INPUT-AV 5
DVI
TO TV CABLE
IN
OUTPUT
CH
3 4
3
VIDEO
S-VIDEO L Pb
Pr
VIDEO
S-VIDEO L
AUDIO
L
R
AUDIO
L
R
G/Y
R/Pr
B/Pb
V
H
SYNC L
R
AUDIO
HD INPUT-AV 4
INPUT-AV 2 OUTPUT INPUT-AV 1 ANTENNA IN 75Ω
Y
L
R
AUDIO
HD INPUT-AV 5
DVI
2 1
VIDEO
S-VIDEO L Pb
Pr
VIDEO S-VIDEO L
AUDIO
L
R
AUDIO
L
R
G/Y
R/Pr
B/Pb
V
H
SYNC L
R
AUDIO
HD INPUT-AV 4
INPUT-AV 2 OUTPUT INPUT-AV 1 ANTENNA IN 75Ω
Y
L
R
AUDIO
HD INPUT-AV 5
DVI
CABLE
IN
TO
TV VIDEO
OUT
L R AUDIO
OUT
3 4
OUTPUT
CH
1
2
3
Back of TV
Back of Cable Box
(example only)
Cable TV
Signal
Back of TV
Back of TV
Back of Cable Box
(example only)
H
OOKING UP THE
TV
C ONTENTS
Important Notice/Warning............................................................1
Hooking up the TV ..................................................................1–2
Operating the Television and Remote Control ........................2–3
Using the Installation Features ................................................4–6
Using the Picture-in-Picture (PIP) Feature ..............................6–7
Adjusting the Manual Converge Controls....................................8
IMPORTANT
This owner's manual is used with several different television models.
Not all features (and drawings) discussed in this manual will neces-
sarily match those found with your television set. This is normal and
does not require that you contact your dealer or request service.
B
EST
V
IEWING
T he major benefit of this projection television is its large view-
ing screen. To see this large screen at its best, test various
locations in the room to find the optimal spot for viewing.
NOTE: Be sure to allow a free flow of air to and from the perfo-
rated back cover of the set.
To avoid cabinet warping, cabinet color changes,
and increased chance of set failure, do not place
the TV where temperatures can become excessively
hot—for example, in direct sunlight or near a
heating appliance. Magnetic fields, such as those of external speak-
ers, may cause the picture to distort if the speak-
ers are placed too close to the television. Move the
magnetic field source away from the TV until there
is no picture distortion.
As an Energy Star®
Partner, Philips Consumer
Electronics has determined
this product meets the Energy
Star® guidelines for energy
efficiency. Energy Star® is a
U.S. registered mark. Using
products with the Energy
Star® label can save energy.
Saving energy reduces air pol-
lution and lowers utility bills.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD DO NOT
EXPOSE THIS UNIT TO RAIN OR EXCESSIVE MOISTURE.
C
ABLE
TV
C
ABLE
B
OX WITH
RF IN/OUT
C
ABLE
B
OX WITH
A/V O
UTPUTS
T his connection WILL supply Stereo sound to the TV.
1 Connect the cable TV signal to the ANTENNA IN 75 Ω
jack on the back of the TV.
NOTE: Refer to the sections on TUNER MODE and AUTO
PROGRAM on page 4 of this guide. Set TUNER MODE to
the CABLE option. Run AUTO PROGRAM to store all
available cable channels in the TV’s memory.
T his is for example purposes only. The back of your cable box
may be labeled somewhat differently.
This connection WILL NOT supply stereo sound to the TV.
1 Connect the cable TV signal to the CABLE IN jack on
the back of the cable box.
2 Connect a coaxial cable (not supplied) to the TO TV
jack
on the back of the cable box and to the ANTENNA
IN 75Ω jack on the back of the TV.
3 Be sure to set the Output Channel switch on the back of
the cable box to CH 3 or 4, then tune the cable box on the
TV to the corresponding channel. Once tuned, change
channels at the cable box, not the TV.
NOTE: Refer to the sections on TUNER MODE and AUTO
PROGRAM on page 4 of this guide. Set TUNER MODE to
the CABLE option. Run AUTO PROGRAM to store all
available cable channels in the TV’s memory..
T his is for example purposes only. The back of your cable box
may be labeled somewhat differently.
This connection MIGHT supply stereo sound to the TV. Check
with your cable TV company.
1 Connect the cable TV signal to the CABLE IN jack on
the back of the cable box.
2 Connect A/V cables to the VIDEO and AUDIO outputs
on the back of the cable box and to the corresponding
INPUT-AV 2 jacks on the back of the TV.
3 Be sure to set the Output Channel switch on the back of
the cable box
to CH 3 or 4, then tune the cable box on the
TV to the corresponding channel. Once tuned, change
channels at the cable box, not the TV.
NOTE: Refer to the sections on TUNER MODE and AUTO
PROGRAM on page 4 of this guide. Set TUNER MODE to
the CABLE option. Run AUTO PROGRAM to store all
available cable channels in the TV’s memory.
Cable TV
Signal
Cable TV
Signal
