Connect decorative flue – Best IS170 EU User Manual
Page 7
- 7 -
14-3/16”
min 24”
max 30”
HEIGHT
ADJUSTEMENT
SLOTS

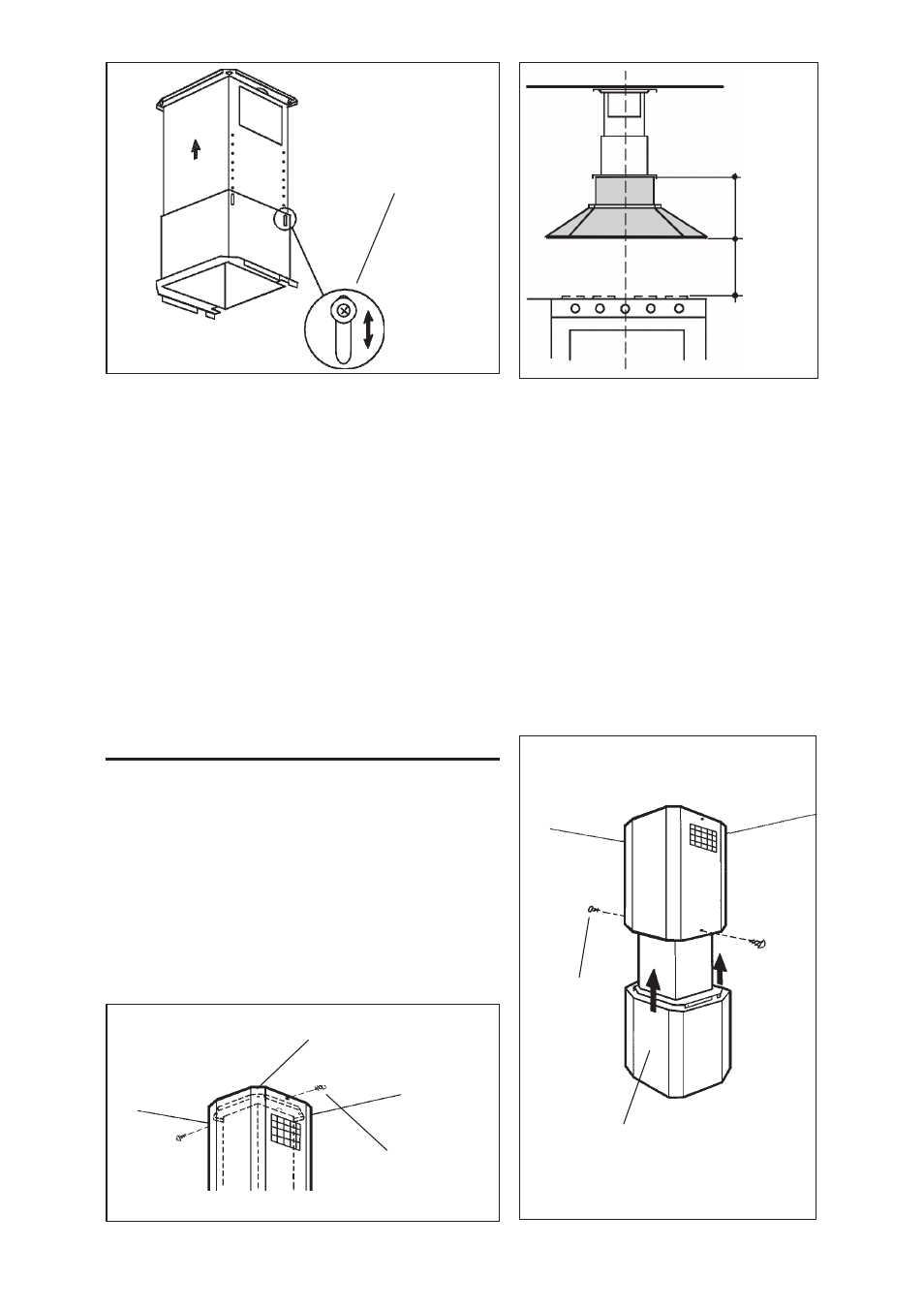

CONNECT DECORATIVE FLUE
1. Secure the upper flue to the support frame
with the mounting screws 3.9x6mm (air
vents must be up).
2. Insert the lower flue moving it completely
towards the top and fix it temporarily with
mounting screws (3.9x6mm).
UPPER FLUE
MOUNTING
SCREWS
(3.9x9.5mm)
RETAINING
SCREWS
(3.9x6mm)
LOWER FLUE
