Product Information
5
No connect
13
No connect
21 No connect
6
DDC Clock
14
+5V Power
22 T.M.D.S. Clock Shield
7
DDC Data
15
Ground (for +5V)
23 T.M.D.S. Clock+
8
No connect
16 Hot Plug Detect
24 T.M.D.S. Clock-

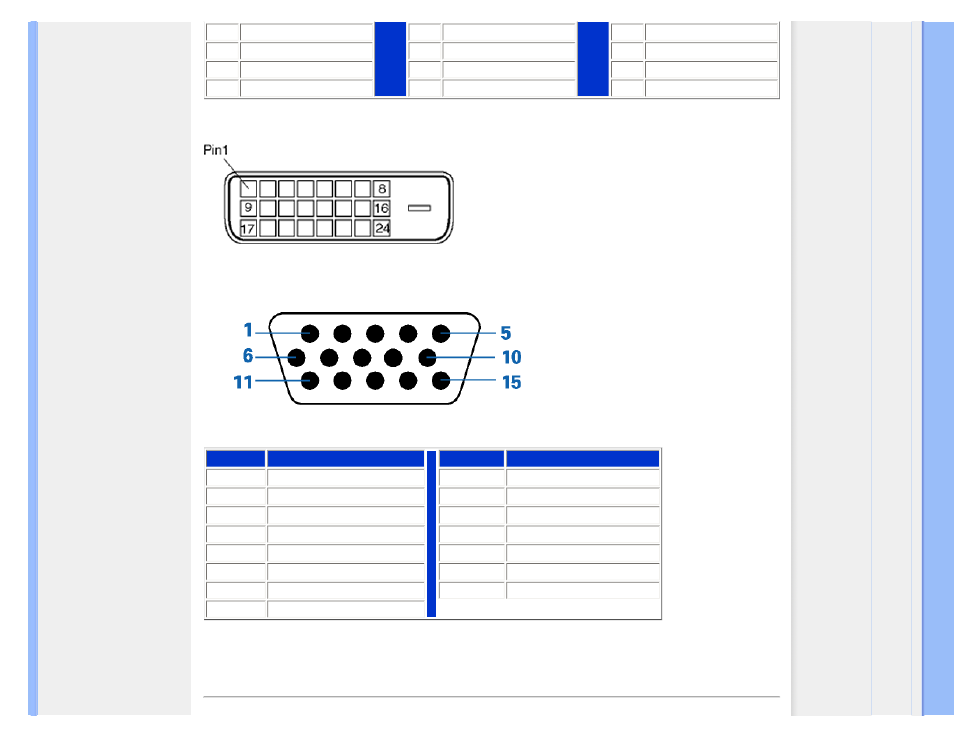

2.The 15-pin D-sub connector (male) of the signal cable:
Pin No.
Assignment
Pin No.
Assignment
1
Red video input
9
DDC + 5 V
2
Green video input/SOG
10
Logic ground
3
Blue video input
11
Ground
4
Sense (GND)
12
Serial data line (SDA)
5
Cable detect (GND)
13
H. Sync / H+V. Sync
6
Red video ground
14
V. Sync
7
Green video ground
15
Data clock line (SCL)
8
Blue video ground
