Outdoor Fireplace Model No. WAF501CS
Contact 1.800.762.1142 for assistance. Do not return to place of purchase.

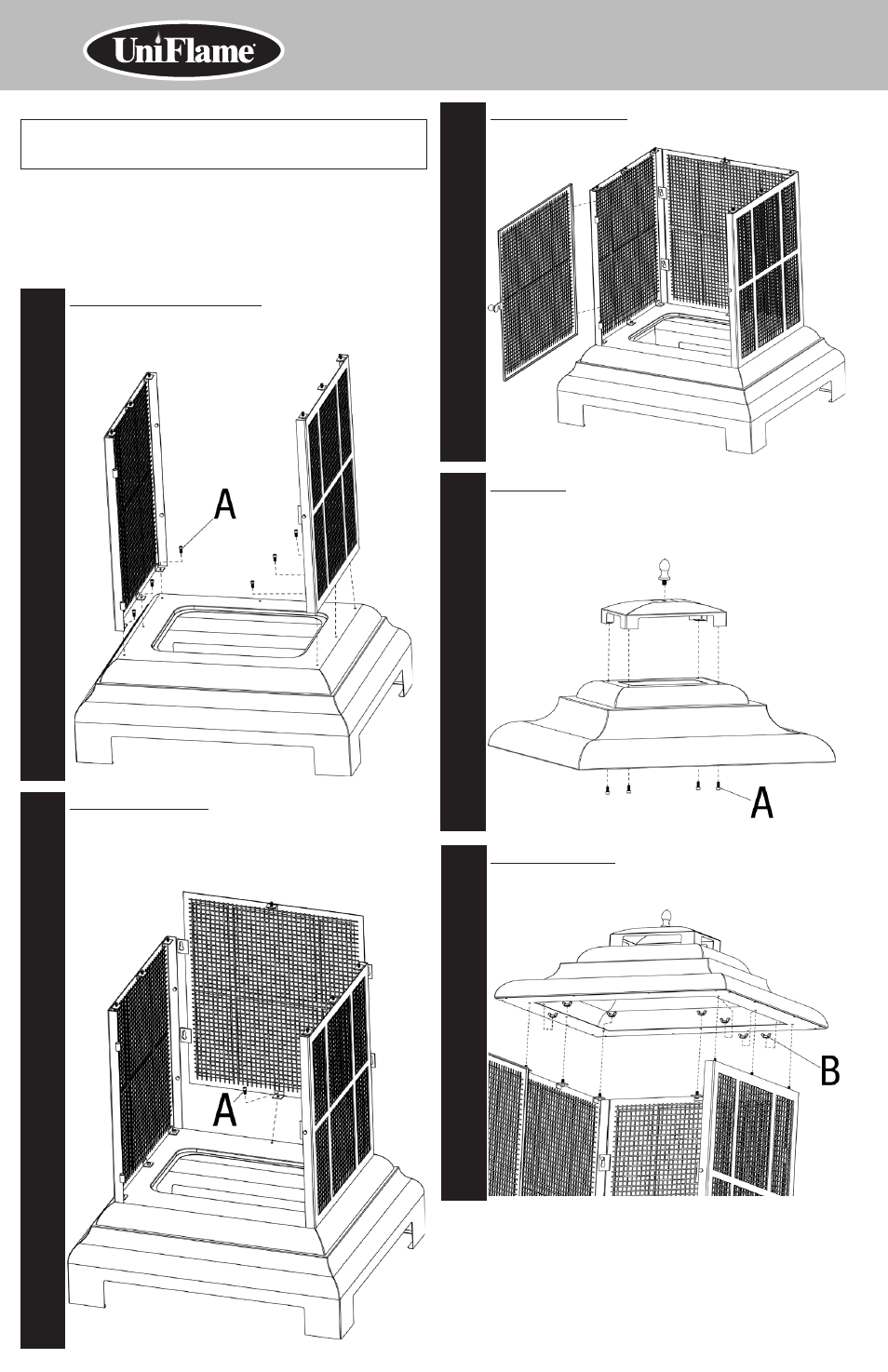

Step
1
Attach left and right spark guards
A . Attach left spark guard to base using 3 screws (A) .
B . Attach right spark guard to base using 3 screws (A) .
Step
2
Attach back spark guard
A . Attach back spark guard to left and right spark guards by inserting side spark
guard pegs into keyholes in back spark gard .
B . Slide back spark guard down .
C . Secure to base using screw (A) .
Step
5
Attach hood assembly
Attach hood assembly to spark guards using 7 wing nuts (B) .
Assembly Instructions
DO NOT RETURN PRODUCT TO STORE.
For assistance call
1.800.762.1142 toll free . Please have your owner’s manual and serial
number available for reference .
For Easiest Assembly:
• To avoid losing any small components or hardware, assemble your product on a hard level
surface that does not have cracks or openings .
• Clear an area large enough to layout all components and hardware .
• When applicable, tighten all hardware connections by hand first . Once the step is
completed, go back and fully tighten all hardware .
• Follow all steps in order to properly assemble your product .
Step
3
Attach spark guard door
Insert spark guard door pegs onto right spark guard .
Step
4
Assemble top
A . Screw finial into top .
B . Attach top to hood using 4 screws (A) .
