Contact 1.800.762.1142 for assistance. Do not return to place of purchase.

page no .

3

Hardware

A . Screw

11 pcs

M5x10 Black Nickel Plated Phillips Truss Head Screw

B . Wing Nut

7 pcs

M5 Black Nickel Plated Wing Nut

Tool Needed

C . Screwdriver**

1 pc

** Not shown at actual size .

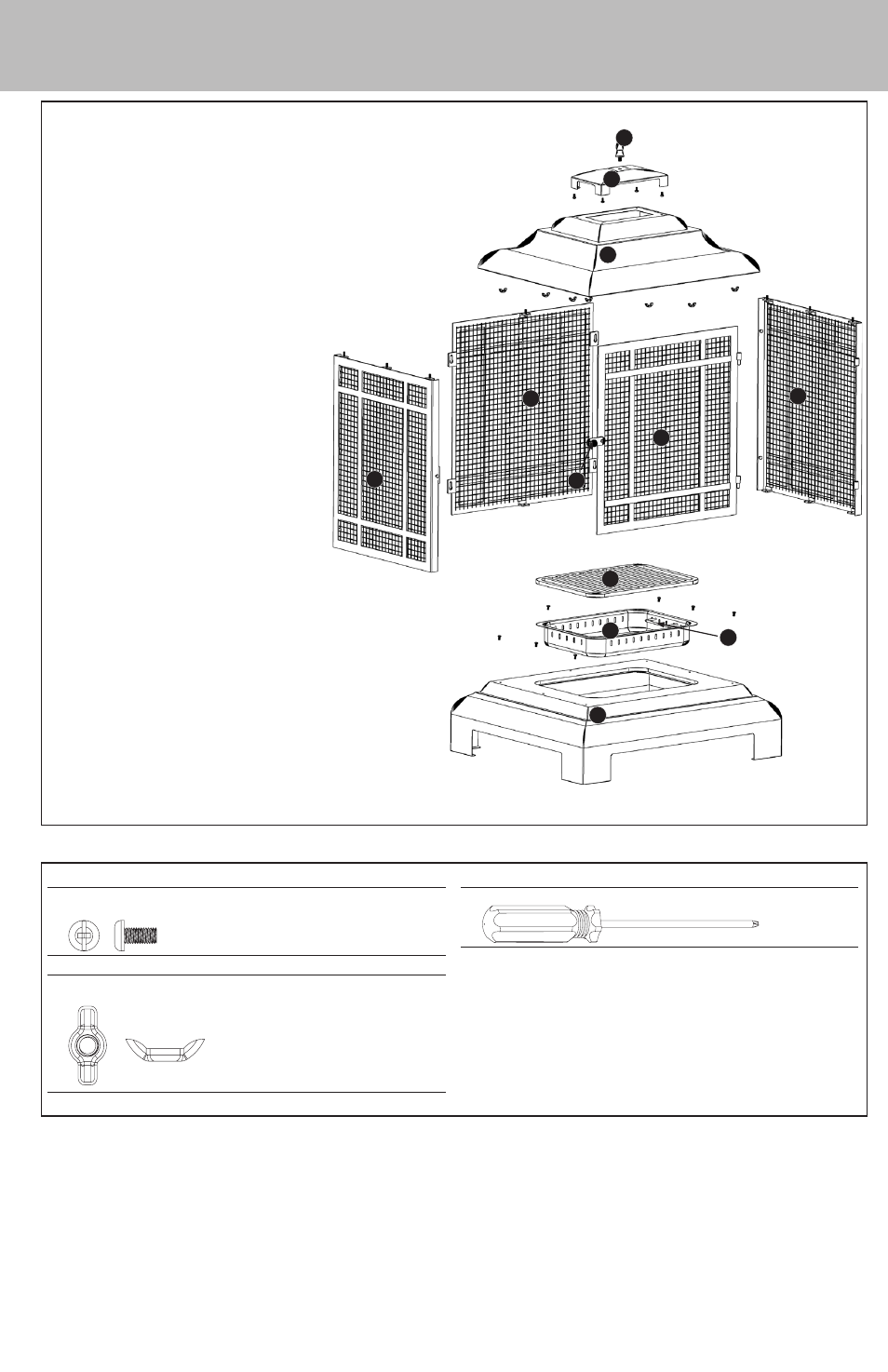

Exploded View

1 . Finial

2 . Top

3 . Hood

4 . Back Spark Guard

5 . Right Spark Guard

6 . Left Spark Guard

7 . Spark Guard Door

8 . Handle*

9 . Wood Grate

10 . Ash Receiver

11 . Ash Receiver Handle*

12 . Base

*Pre-assembled .

10

9

12

8

1

2

3

4

5

6

7

11
