20
English
Optional Connections
(continued)
6
Mounting the main unit on
the wall
WARNING!
Only qualifi ed personnel can
perform the installation. Never do
it yourself in order to avoid any
unexpected damage to the
equipment or injury to personnel.
Note:
Philips accepts absolutely no liability for
any accidents or damage resulting from
inadequate assembly or mounting, misuse
or abuse, or natural disasters.
Before you start ...
Ensure that all the cables are connected
to the rear panel before you mount the
main unit

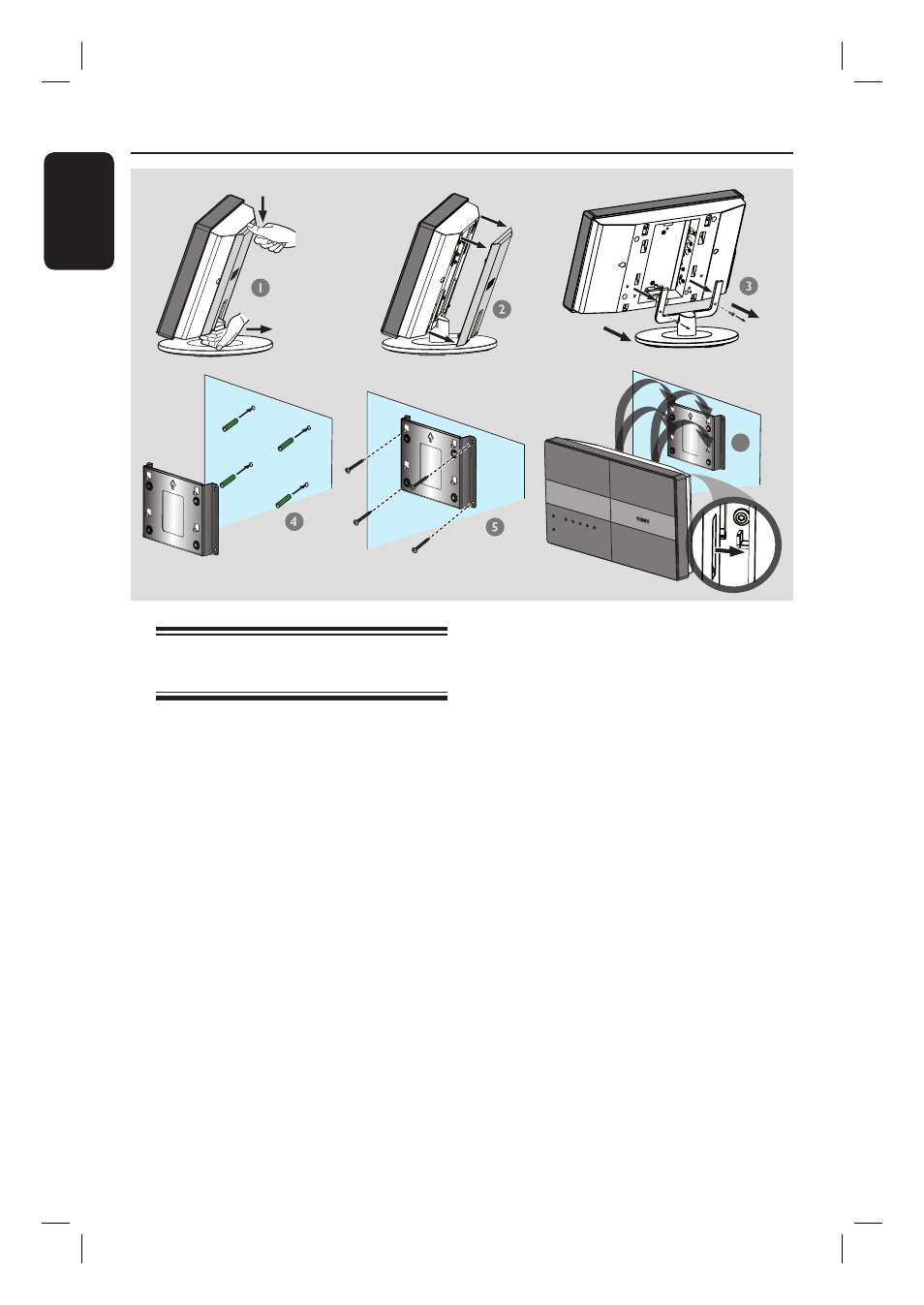

A Push down the rear cover from the top.
B Lift the rear cover outward to detach it
from the main unit.
C Loosen the screws from the stand and
remove the stand from the main unit.
D Hold the supplied bracket in position and
mark holes on the wall for the screws.
Drill holes and insert the rubber wall
plugs (not supplied) into the holes.
E Use the screws (not supplied) to secure
the bracket onto the wall.
F Hook the main unit fi rmly onto the
mounted bracket by sliding the knobs
through the bracket’s key holes and lock
into position.
