Model number 33614 33618
Voltage rating 14.4 V 18 V
No load speed 1 n
0
0-450/min n
0
0-400/min
No load speed 2 n
0
0-1500/min n
0
0-1400/min
Maximum Capacities
Chuck size
1/2" 1/2"
Screw sizes #16 x 3" #14 x 4"
Mild metal 1/2" 5/8"
Hard wood 1-1/4" 1-5/8"
Soft wood 1-3/4" 2"
Charger BC001-6 & BC016 BC003, 4, 6, & BC016
BC130 & BC230 BC130 & BC230
Voltage rating 120 V 60 Hz 120 V 60 Hz
Battery pack BAT038 thru BAT041 BAT025 & BAT026
BAT140 thru BAT159 BAT160 thru BAT189
BC006 charger requires 12 V DC input
NOTE: ONLY USE CHARGERS LISTED ABOVE
-8-
Functional Description and Specifications
Disconnect battery pack from tool or place the switch in the locked or
off position before making any assembly, adjustments or changing
accessories. Such preventive safety measures reduce the risk of starting the tool
accidentally.
! WARNING

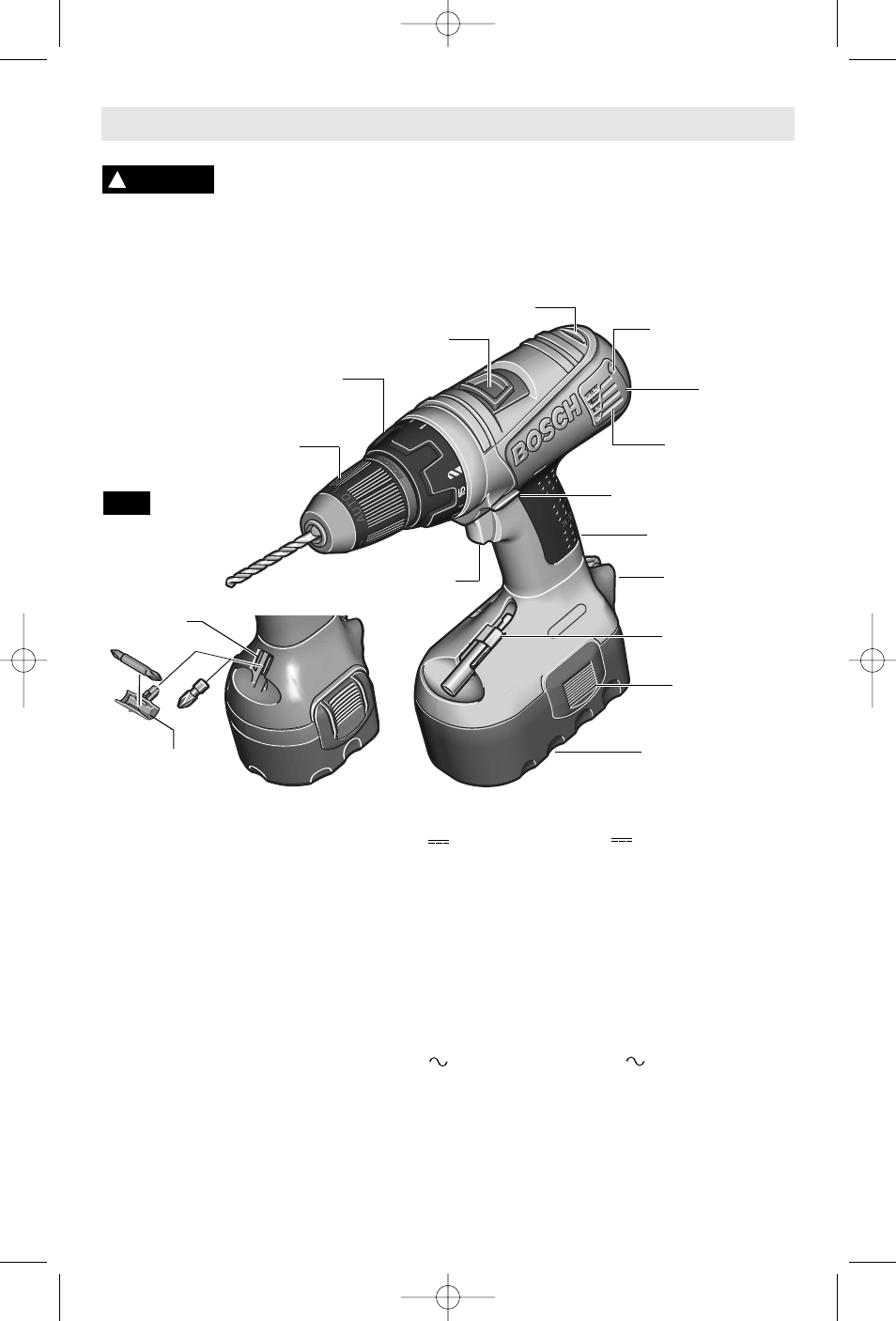

Cordless Drills/Drivers
RUBBERIZED GRIP
BATTERY
RELEASE TABS
BATTERY PACK
FORWARD/REVERSING
LEVER & TRIGGER LOCK
VARIABLE SPEED
TRIGGER SWITCH
GEAR SHIFTER
ADJUSTABLE
CLUTCH
KEYLESS
CHUCK
FIG. 1
VENTILATION
OPENINGS
BRUSH COVER
SCREW
BRUSH
COVER
VENTILATION OPENINGS
TETHER HOOK
(Optional Accessory)
BIT STORAGE
ADAPTER
(Model 33614 only)
BIT AND BIT
STORAGE
BIT AND BIT
STORAGE
