6
Install the dryer and level side to side
and front to back. Use a bubble level.
Never remove the heightĆadjustable
feet!

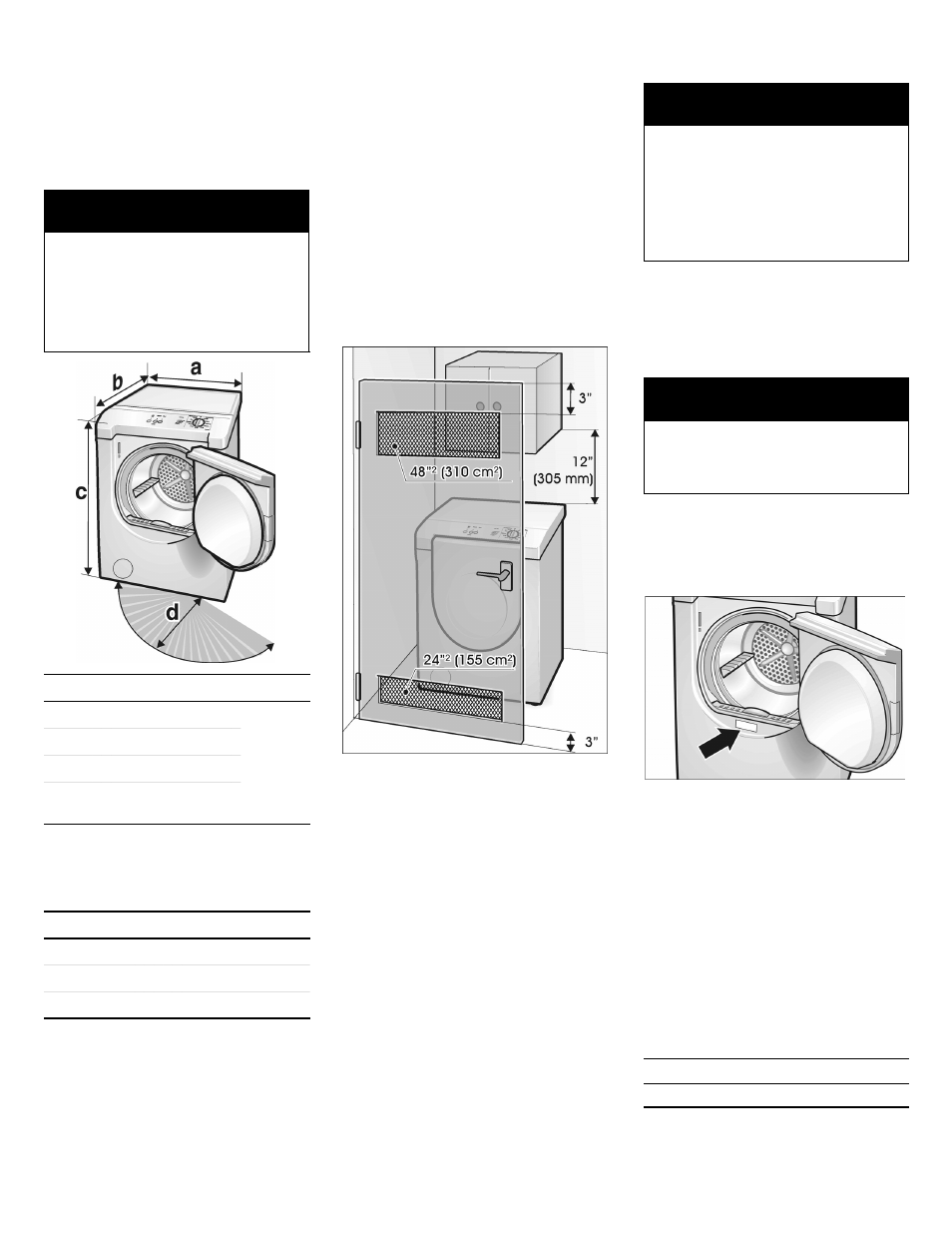

The size of the installation area
depends on the dimensions of the
dryer. Ensure that there is adequate
room for the swivel range of the door!
d
WARNING!
d
If installed in a garage, the dryer
must be installed on a substantial
platform at least 18 inches above
the floor to reduce the liklihood of
igniting flammable vapors and be
located or protected so it cannot be
damaged by a moving vehicle
Dimension Weight
a 27.0" (686 mm) 125 lbs
(56 k )
b 31.8" (808 mm)
(56 kg)
with
c 37.2" (945 mm)
with
packaging
d
angle
19.7" (500 mm)/
170-180°
packaging
143 lbs
(64 kg)
If installing the dryer in a closet, observe
the minimum distances according to
the following table:
Minimum Installation Clearances
Closet
Sides 0" (O mm)
Top 12" (3O5 mm)
Rear* 0" (O mm)
* as close to wall as gasĆpiping and venting
will allow.
Important information concerning
minimum distances:
-
Depending on the location of the
exhaust air connection, an
additional minimum distance of
5½ inch (14 cm) must be provided
on this side for pipes/brackets (see
page 9).
- Distances above the indicated
minimum dimensions reduce the
risk of mold formation behind the
appliance.
- Additional distances reduce noise
transmission.
- Additional distances facilitate
installation and service.
- If the dryer is installed in a small
room, the doors of the room must
be fitted with vents of a specified
minimum size.
The dryer door is delivered with hinges
on the right. If required, the door hinges
can be switched to the left side.
If the door hinges are to be changed
over, please contact your dealer or our
customer service team (see page 21).
Electrical connection
GROUNDING INSTRUCTIONS
This appliance must be grounded. In
the event of a malfunction or
breakdown, grounding will reduce the
risk of electrical shock by providing a
path of least resistance for the electric
current. This appliance features a cord
with an equipmentĆgrounding
conductor and a grounding plug. The
plug must be plugged into an
appropriate outlet which has been
properly installed and grounded in
accordance with all local regulations
and ordinances.
d
WARNING
d
Improper connection of the
equipment grounding conductor
may result in electric shock. Have
the appliance checked by
a qualified electrician or service
technician if you are in doubt as to
whether the dryer has been properly
grounded.
Do not modify the plug provided with
the appliance - if it will not fit in the
outlet, have a proper outlet installed by
a qualified electrician or exchange the
cord with an appropriate one rated for
the dryer.
d
WARNING
d
The dryer must only be connected
to an individual branch circuit via a
socket which has been properly
installed and grounded.
The household electrical voltage must
correspond to the voltage specification
on the dryer (rating plate).
You will find the rating plate on the
inside of the front panel.
Connection specifications as well as
the electrical requirements are
stipulated on the appliance nameplate.
Make sure that:
-
the power cord plug fits into the
socket.
- the power cord is acceptable for
use in this application.
- the grounding system is properly
installed.
The power cord may be replaced by an
electrician only.
Replacement power cords are available
from Customer Service.
Volts Hertz Amperes Watts
110-120 60 9 1080
