50 Connecting the Controller
If you are using a Cable Box/DBS, connect the Controller to your VCR. The Controller will automatically
select channels at the Cable Box/DBS during a timer recording. Leave your Cable Box/DBS turned on dur-
ing a timer recording.
2
Connect the Controller to the CABLE BOX Jack on the back of the VCR as shown above.
3
Attach the Controller to the top of the VCR using the supplied adhesive. Make sure the
Controller’s transmitter (the light on the top of the Controller) is pointed toward the Cable Box/DBS
remote sensor. (To find the Cable Box/DBS remote sensor, refer to the owner’s manual of your Cable
Box/DBS.)
4
If you are using a Cable Box, follow the steps on pages 51-52 to make the Controller change
channels at the Cable Box during timer recordings.
If you are using a DBS, follow the steps on pages 53-54 to make the Controller change chan-
nels at the DBS during timer recordings.
1
Connect the Cable Box/DBS to the VCR as shown below. Set the TV to the Cable Box/DBS output
channel. For more information, please read page 8. Or, refer to the owner’s manual of your Cable
Box/DBS.
SUPER VHS ET
CRYSTAL CLEAR VIDEO TAPE MANAGER TURBO TIMER
REC/OTR
MENU
OK/STATUS
S-VHS ET
AUDIO
POWER
VCR/TV
VR 1010 4 HEAD HI-FI STEREO
CHANNEL PLAY PAUSE/STILL
STOP/EJECT
OPEN A/V FRONT CONNECTORS DUBBING
VIDEO CASSETTE RECORDER
TURBO
DRIVE
VCR
SP SLP
NORM -15dB 6 0 4 +8
L
LP 20917-003
IN OUT
S VIDEO
VHF/UHF
IN ANTENNA
OUT TV
CABLE BOX
VIDEO
L
R
AUDIO
(MONO)
OUT IN
CH3 CH4
LP 20917-003
VHF/UHF
IN
OUT TV
75 ⍀ ANT / CAB LE ANTENNA

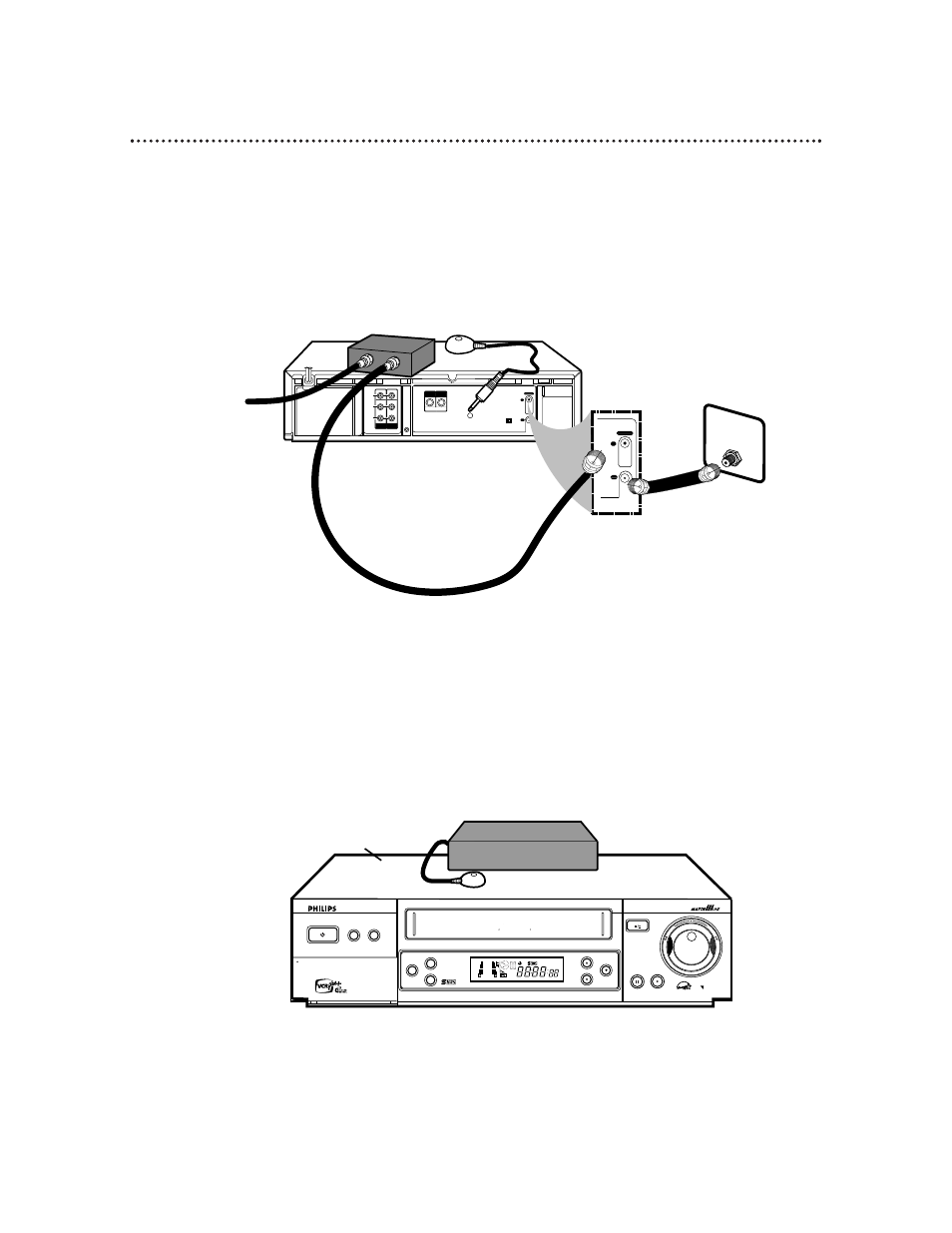

Connect the Cable
