1

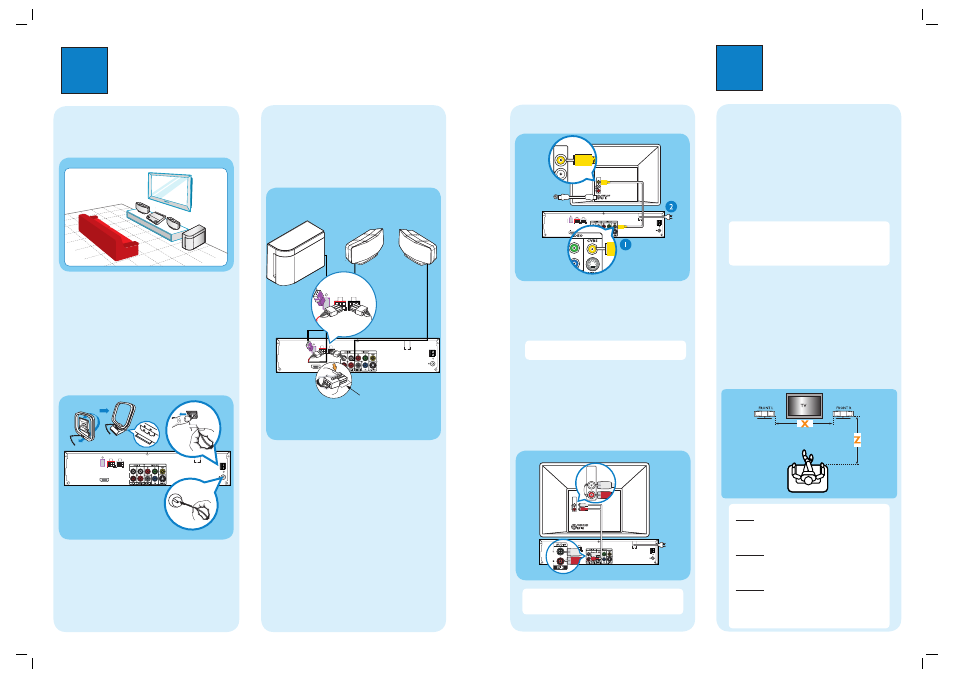

Connect

A

Placement

Proper speakers system placement is important to
ensure optimum sound performance.

A

Place the SonoWave speakers at the normal

listening ear level, equal distance from the TV and
face straight ahead towards the listening area.

B

Place the subwoofer on the floor, at least one meter

away from the TV.

2

Set up

B

Connect the radio antennas

Keep the antennas away from the electronic devices to
prevent unwanted interference.

FM 75

AM

FM/AM ANTENNA

HDMI OUT

~

MAINS

R

L

SUB-

WOOFER

FRONT

LEFT

FRONT
RIGHT

12 mm

A

B

C

A

Connect the FM antenna to the FM jack. Extend the

wire and fix its end to the wall.

B

Unfold the AM/MW loop antenna and fix the claw

into the slot.

C

Push the tabs and insert the wires into the AM/MW

jacks.

C

Connect the SonoWave speakers

and subwoofer

Connect the left speaker to the FRONT LEFT jack, right
speaker to the FRONT RIGHT jack and the subwoofer
to the SUBWOOFER jack at the rear of the DVD
system.

FM 75

AM

FM/AM ANTENNA

HDMI OUT

~

MAINS

R

L

SUB-

WOOFER

FRONT

LEFT

FRONT
RIGHT

SUB-

WOOFER

FRONT

LEFT

FRONT
RIGHT

DVD system (rear)

SUBWOOFER

FRONT

RIGHT

FRONT

LEFT

A

Finding the viewing channel

A

Press STANDBY ON on the DVD system.

B

Press SOURCE on the DVD system until “DISC”

appears on the display panel.

C

Turn on the TV. Use the TV’s remote control to

select the correct viewing channel for the DVD
system.

You should see the blue DVD background on the
TV.

Note To search for the correct viewing channel,
press the Channel Down button on the TV’s remote
control repeatedly (or AV, SELECT,

°

button) until

you see the blue DVD background. If you are using a RF
modulator, set the TV to channel 3 or 4.

B

Setting up the SonoWave speakers

A

Press and hold SOUND on the remote control to

enter the SonoWave speaker settings mode.

B

Use W X keys to view the available settings (ROOM

ACOUSTICS, SPEAKER DISTANCE, LISTENING
POSITION) and press OK to select.

C

Use W X keys to select a most suitable predefined

setting and press OK to confirm.

ROOM ACOUSTICS

HARD - for concrete/glass walls.
SOFT - for wooden walls.
SPEAKER DISTANCE
NEAR - ‘X’ is less than 1 meter.
DEFAULT - ‘X’ is between 1~2.5 meters.
FAR - ‘X’ is more than 2.5 meters.
LISTENING POSITION
NEAR - ‘Z’ is less than 1.5 meter.
DEFAULT - ‘Z’ is between 1.5~2.5 meters.
FAR - ‘Z’ is more than 2.5 meters.

Note The underlined options are the default setting.

D

Connect the DVD system to TV

FM 75

AM

FM/AM ANTENNA

HDMI OUT

~

MAINS

R

L

SUB-

WOOFER

FRONT

LEFT

FRONT
RIGHT

Pb

Pb

r

Y

VIDEO IN

(CVBS)

VIDEO IN

(CVBS)

A

Use the supplied composite video cable to connect

the CVBS jack on this DVD system to the VIDEO IN
jack on your TV.

B

Plug in the power cables from the DVD system and
TV to the AC power outlets.

Note It is important to connect the DVD system
directly to your TV.

DVD System (rear)

Television ( rear)

E

Connect the audio from TV to DVD

system (optional)

To hear the TV audio through this home theater system,
use the red and white audio cables (not supplied) to
connect the TV IN (R/L) jacks on this DVD system to
the AUDIO output jacks on your TV.

FM 75

AM

FM/AM ANTENNA

HDMI OUT

~

MAINS

R

L

SUB-

WOOFER

FRONT

LEFT

FRONT
RIGHT

AUDIO

OUT

AUDIO IN

AUDIO

OUT

AUDIO OUT

b

Note Press TV on the remote control to get the
sound output from the speakers system when watching
the TV program.

DVD System (rear)

Television ( rear)

To off-air
antenna or
set-top box

DVD System (rear)

Ensure that this portion is

fully inserted in to the jack.
